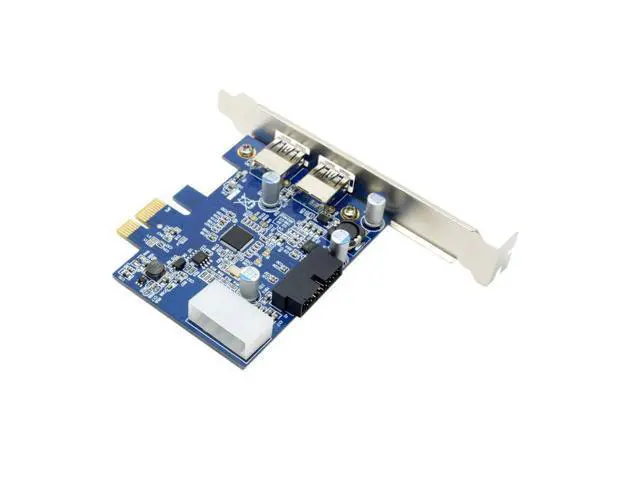

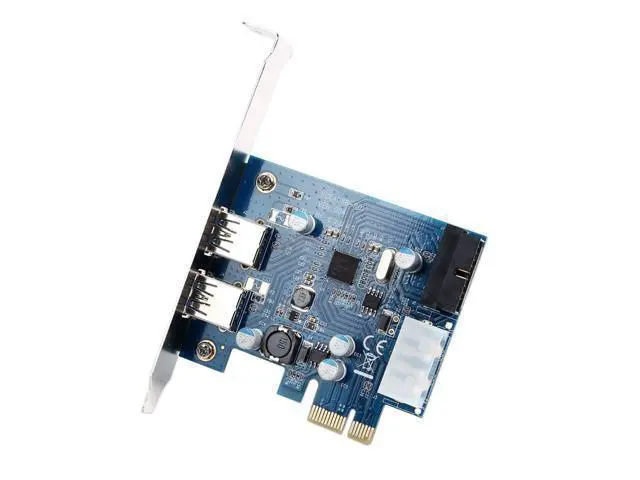

Vszerda USB 3.0 PCI-E Controller Card 2 External Port w/Internal 19 Pin Connection
Limited time offer, ends 07/26 By LUOYIMAN
- High speed USB 3.0 supports transfer rates up to 5 Gbps, compatible with original USB system, peripherals and cables, backward compatible with USB 2.0 /1.1.; USB interface can offer +5V / 2A current for external devices' power supply, 4Pin molex power interface can also supply power for devices, ensuring sufficient power supply; Works greatly for Windows XP or later; Internal 19 Pin connection for connects internal devices such as front USB port
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
USB 3.0 PCI-E Card with Internal 19Pin Connector Extend with 2 x USB 3.0 external ports and 1 x USB 3.0 19-pin internal connector (can expand another two USB 3.0 ports) for standard desktop PC. SuperSpeed USB 3.0 is fully compatible with original USB system, peripherals and cables. Fully compliant with one-lane (x1) PCI Express 2.0 specification. TWO external 5Gbps SuperSpeed USB 3.0 ports. One 19-pin internal 5Gbps SuperSpeed USB 3.0 port. Built-in with 4-pin molex Power Connector for added power source to better support power hungry bus-powered devices. SuperSpeed USB 3.0 offers 10 times performance increase over Hi-Speed USB 2.0.
USB 3.0 complies with Intel extensible Host Controller Interface (xHCI). Up to 5Gbps maximum transfer rate. SuperSpeed USB 3.0 is backwards compatible with USB 1.0 / 1.1 / 2.0 devices (data transfer rate at 1.5 /12/480Mbps). Supports PCI Low profile. Ideal connection for digital cameras, scanners, printers, external CD/DVD/Blu-Ray writers, hard disk drives, flash memory drives and etc. Fully Plug-N-Play and Hot Swap compatible.
System Requirements: 1 available PCI Express 1. x or 2. x slot.
System Support: Windows XP or later
Note: To achieve the maximum throughput, the PCI-Express slot must be version 2.0 or higher. Performance per port may decrease if multiple ports are transferring data simultaneously due to limited throughput of the PCI-Express slot. To meet USB 3.0 transfer speed, high quality USB 3.0 cables and devices are required. Supports both 32-bit & 64-bit OSes. Make sure the power is well connected; otherwise you will see a "Power Surge on Hub Port" message error and no 5V bus power in USB ports.
Package Included: 1 x USB 3.0 PCI-E Card 1 x Low Profile Bracket
USB 3.0 complies with Intel extensible Host Controller Interface (xHCI). Up to 5Gbps maximum transfer rate. SuperSpeed USB 3.0 is backwards compatible with USB 1.0 / 1.1 / 2.0 devices (data transfer rate at 1.5 /12/480Mbps). Supports PCI Low profile. Ideal connection for digital cameras, scanners, printers, external CD/DVD/Blu-Ray writers, hard disk drives, flash memory drives and etc. Fully Plug-N-Play and Hot Swap compatible.
System Requirements: 1 available PCI Express 1. x or 2. x slot.
System Support: Windows XP or later
Note: To achieve the maximum throughput, the PCI-Express slot must be version 2.0 or higher. Performance per port may decrease if multiple ports are transferring data simultaneously due to limited throughput of the PCI-Express slot. To meet USB 3.0 transfer speed, high quality USB 3.0 cables and devices are required. Supports both 32-bit & 64-bit OSes. Make sure the power is well connected; otherwise you will see a "Power Surge on Hub Port" message error and no 5V bus power in USB ports.
Package Included: 1 x USB 3.0 PCI-E Card 1 x Low Profile Bracket
