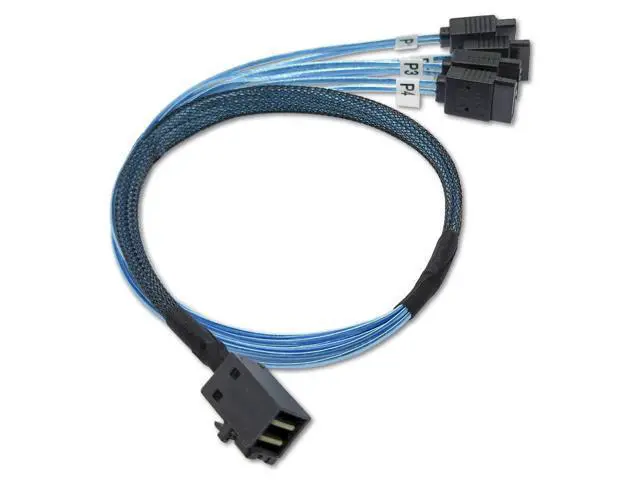

Vszerda Internal HD Mini SAS Cable SFF-8643 to 4 SATA Digital Black Cord (2 Cables, 0.5 M / 1.6 Feet)

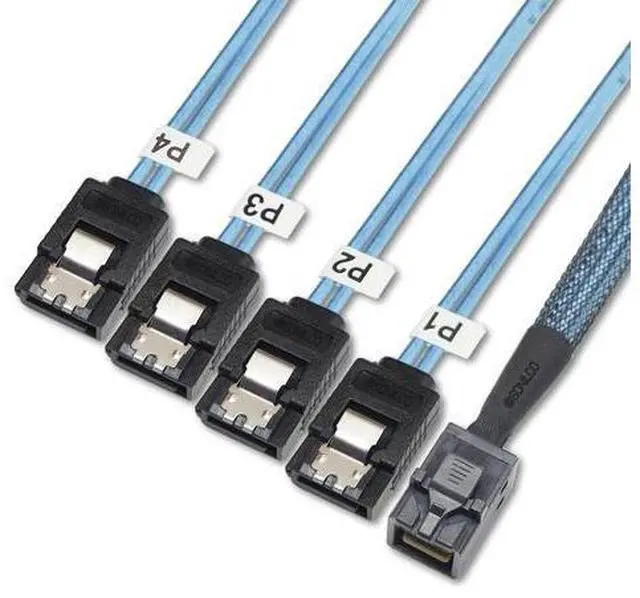

Internal HD Mini SAS Cable SFF-8643 to 4 SATA Digital Black Cord 1.6 Feet / 0.5 Meterd esigned for optimal connectivity in your storage system. The SFF-8643 serves as the host, linking seamlessly to your motherboard or RAID controller with Mini SAS ports. On the other end, four 7-pin SATA connectors act as the target, establishing a reliable connection to your hard drives with SATA ports. The SFF-8643 connector boasts innovative design advantages, utilizing minimal PCB real estate and facilitating higher port density for internal hosts and devices. Hybrid versions of these cables provide a seamless transition from 6GB to 12GB, ensuring your system stays up-to-date.

Our cable is built on the Serial Attached SCSI (SAS) platform, a high-speed data storage interface engineered for robust throughput and rapid data access, making it an ideal choice for various applications. Elevate your storage capabilities with our Mini SAS to 4x SATA cabledesigned for efficiency, compatibility, and high-performance data access. Please purchase with confidence after verifying compatibility with your system. Applications Data/Communications 1. RAID (Redundant Array of Independent Disks )
2. Workstations
3. Rack-mount server
4. Servers
5. Storage rack Mechanical Performance Mating Force and
Unmating Force Condition: EIA 364-13. Insert and extract at a speed of 25mm/minute.
Mating Force: 100 N maximum for HD Mini SAS connector.
Unmating Force: 50 N maximum for HD Mini SAS connector..
Mating Force: 45 N maximum for SATA connector.
Unmating Force: 10 N maximum for SATA connector. Electrical Performance 1. Contact Current Rating 0.5A mperes maximum per pin when mated. 2. Voltage Rating 30VAC per contact when mated or unmated. 3. Contact Resistance 30mohm max. initial, 15mohm maximum after stress test. 4. Dielectric Withstanding Voltage 500 VAC for 1 minute no breakdown. 5. Insulation Resistance 1000 Mohm minimum. Signal Integrity
1.
Mated Connector Impedance: 100 ohm±15%
2.
Cable Absolute Impedance: 100 ohm±10%
3.
Cable Pair Matching: ±5 ohm
4.
Common Mode Impedance: 25 to 40 ohms
5.
Insertion loss: -6dB maximum up to 4.5G hz;
6.
Crosstalk: -26 dB up to 6Ghz;
