2pcs DC 12V 2 Channel Relay Module with Isolated Optocoupler High and Low Level H/L Level Trigger Module Triggered by DC 12V
Limited time offer, ends 09/06 By Cookvio
- Can set high or low level trigger with jumper, to meet the demand of more trigger applications;; With patch optical isolation, strong drive ability and stable performance;; The module can be high or low by a jumper setting trigger;; Interface design humane, all interfaces can be connected directly via terminal wiring leads , very convenient ;; Fault-tolerant design , even if the control line is broken , the relay will not operate ;
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Description:
1. The module uses genuine quality relay, normally open interfaces
Maximum load: AC 250V/10A, DC 30V/10A;
2. The power indicator (green), relay status indicator (red)
3.

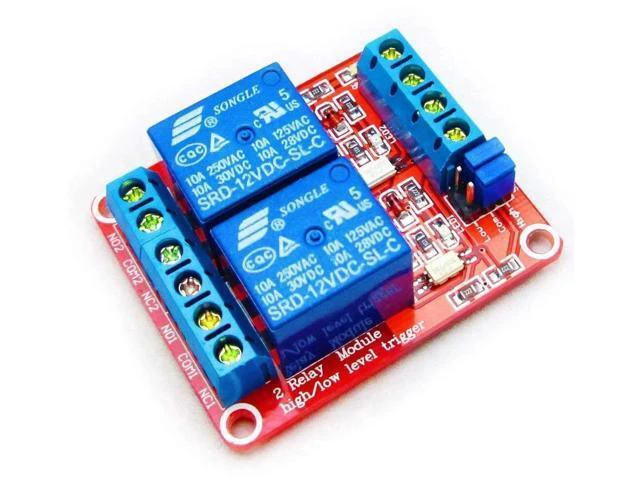

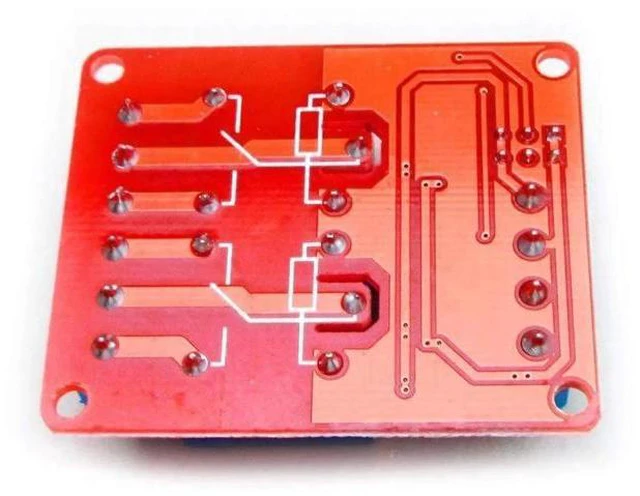

Module size: 50mm * 26mm * 18.5 mm (L * W * H)
4. Has four mounting bolts holes, hole 3.1 mm, 44.5 mm * 20.5 mm pitch
Module Interface: 1.
DC +: positive power supply DC 12V 2.
DC-: negative power connection 3. IN 1: 1 channel signal to trigger the end, you can set a high or low level control relay 4. IN 2: 2 -channel signal to trigger the end, you can set a high or low level control relay
Relay Outputs: 1.
NO1: After a relay normally open interfaces, relay before floating, shorted pull with COM1 2. COM 1: 1 relay common interface 3. NC 1: 1 relay normally closed port, COM1 relay shorted before and after the pull- vacant 4.
NO2: way normally open relay interface, the relay before floating, pull back and COM2 short 5. COM 2: 2 Common Interface relay 6. NC 2: 2 -way normally closed relay interface relay short front and COM2, pull vacant post
Note: This relay will be triggered by DC 12V, can not trigger with the arduino signal at 5V.

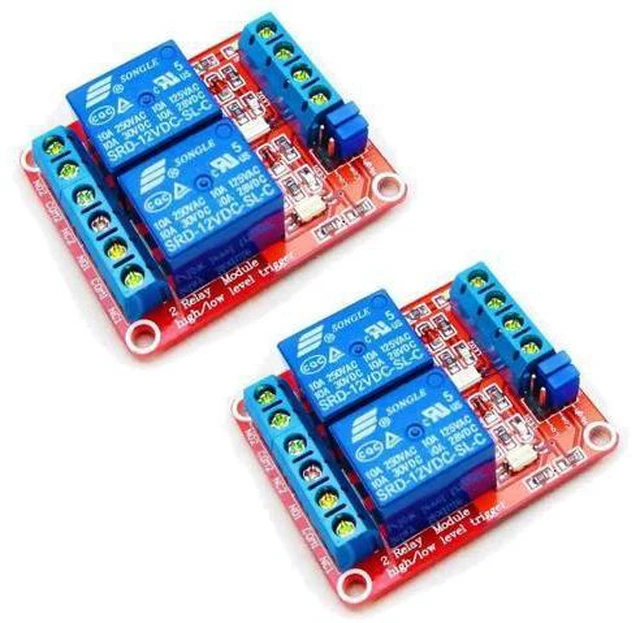

Package Included: 2*DC 12V 2 Channel Relay Module With Isolated Optocoupler High and Low Level Trigger
1. The module uses genuine quality relay, normally open interfaces
Maximum load: AC 250V/10A, DC 30V/10A;
2. The power indicator (green), relay status indicator (red)
3.
Module size: 50mm * 26mm * 18.5 mm (L * W * H)
4. Has four mounting bolts holes, hole 3.1 mm, 44.5 mm * 20.5 mm pitch
Module Interface: 1.
DC +: positive power supply DC 12V 2.
DC-: negative power connection 3. IN 1: 1 channel signal to trigger the end, you can set a high or low level control relay 4. IN 2: 2 -channel signal to trigger the end, you can set a high or low level control relay
Relay Outputs: 1.
NO1: After a relay normally open interfaces, relay before floating, shorted pull with COM1 2. COM 1: 1 relay common interface 3. NC 1: 1 relay normally closed port, COM1 relay shorted before and after the pull- vacant 4.
NO2: way normally open relay interface, the relay before floating, pull back and COM2 short 5. COM 2: 2 Common Interface relay 6. NC 2: 2 -way normally closed relay interface relay short front and COM2, pull vacant post
Note: This relay will be triggered by DC 12V, can not trigger with the arduino signal at 5V.
Package Included: 2*DC 12V 2 Channel Relay Module With Isolated Optocoupler High and Low Level Trigger
