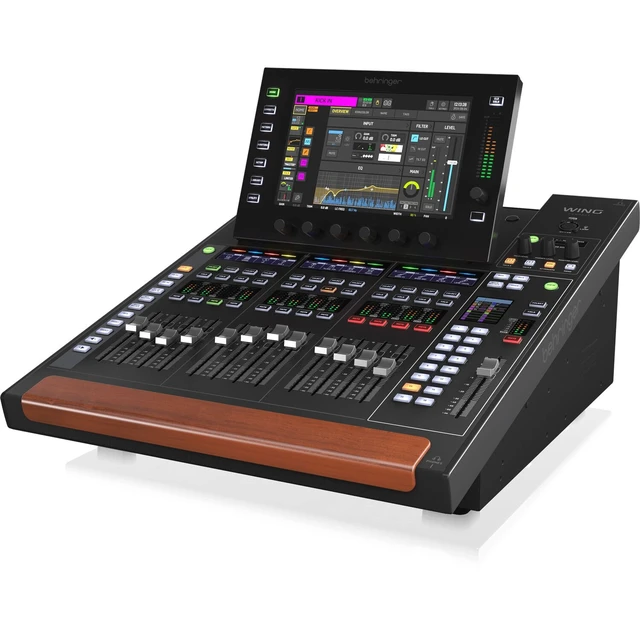

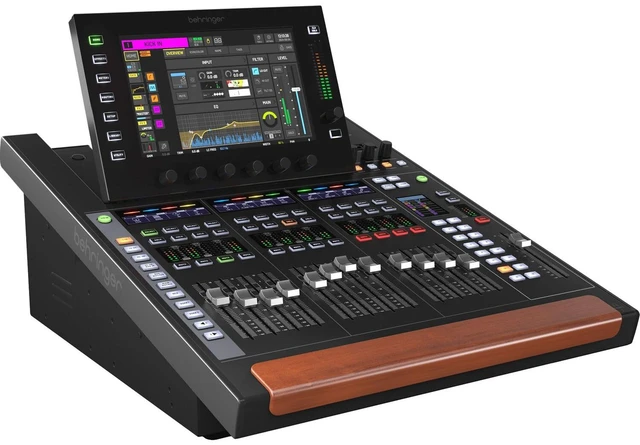

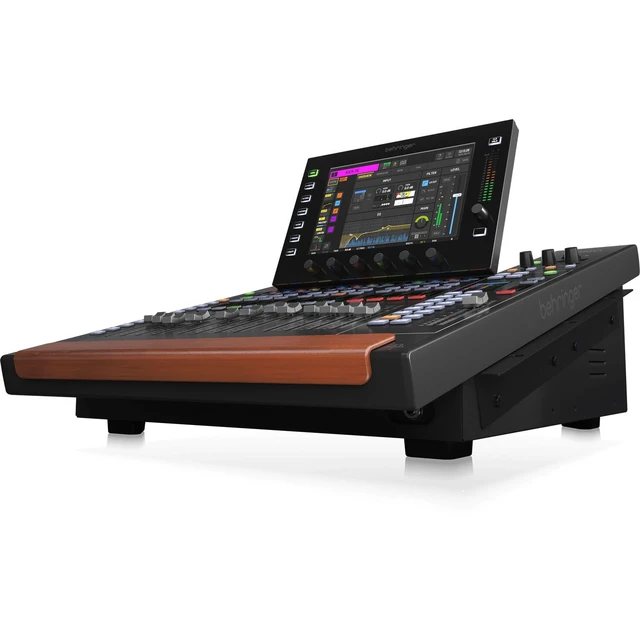

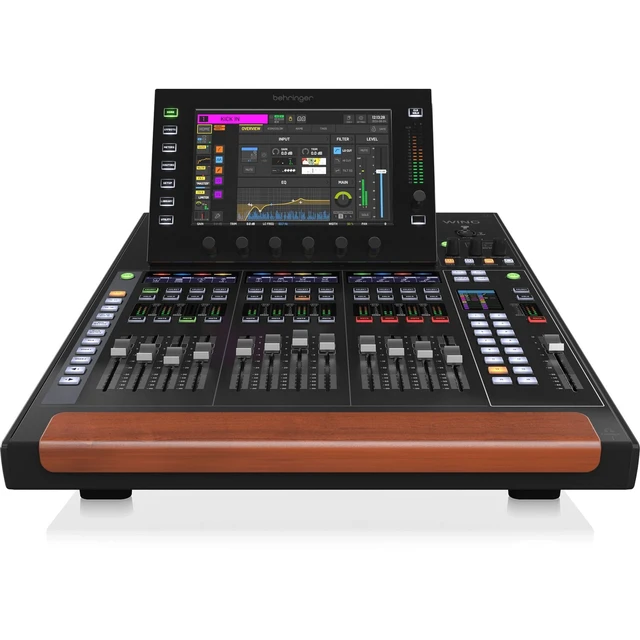

Behringer WING Compact 48-channel Digital Mixer

The Behringer WING COMPACT is a 40-channel, 28-bus full-stereo rack-mountable digital mixing console with 12+1 motorized faders, a large, 10" capacitive touchscreen interface, and touch-sensitive rotary controls for a new ease of operation. The mixer is highly customizable, thanks to the three separate fader sections and a Custom Control section that can be tailored easily and intuitively to meet your personal requirements. Wing offers 24 Midas PRO mic preamps and features eight XLR outputs as well as a 1/4" TRS headphone outputs. Thankfully, the number of I/O can be expanded with three AES50 SuperMAC ports, the StageCONNECT port, and optional expansion cards for audio interfaces, digital network bridges, MADI, and ADAT/WC. There are three variable plug-in processing slots for all 40 stereo input channels. Each slot can host plug-ins based on iconic vintage analog equalizers and compressors, plus insert FX slot and 4-band parametric EQ for all 8 stereo aux channels.
Benefits
24 Midas PRO mic preamps and 8 outputs provide industry-reference sound quality
13 motorized 100mm faders with powerful master fader sectionand 20 Custom buttons
10.1" main display with multitouch screen and adjustable swivel
Unique Sends on FaderWorkflow with dedicated color TFT dfisplay and dedicated hot-keys to 44 Masters, Buses, Mains, Matrices, DCAs
Integrated USB audio/MIDI interface for 48 audio channels in and out
Dual-SD-card live recorder/player with up to 64 tracks and markers for identifying song positions
Internal AoIP-module can upgrade the Ethernet ports with optional 64-channel audio in and out to Audinate Dante and Waves SoundGrid networks
16 true-stereo effect processing engines with 80+ world-class algorithms
3 plug-in slots for Gate, Dynamics, and EQ included in every channel. All without reducing any additional effect-processing headroom
4 main, 8 matrix, and 16 aux stereo buses featuring dual inserts, 8-band parametric EQs, stereo imager, and full dynamics processing, all in a single effect chain
DAW Remote Control compatible with Mackie Control Universal (MCU) and presets for Cubase, Ableton Live, Logic X, Nuendo, ProTools, Reaper, and Studio One
Offline editing and remote control via WING CoPilot, WING-Q, and WING-Edit Softwares for Desktop and Mobile

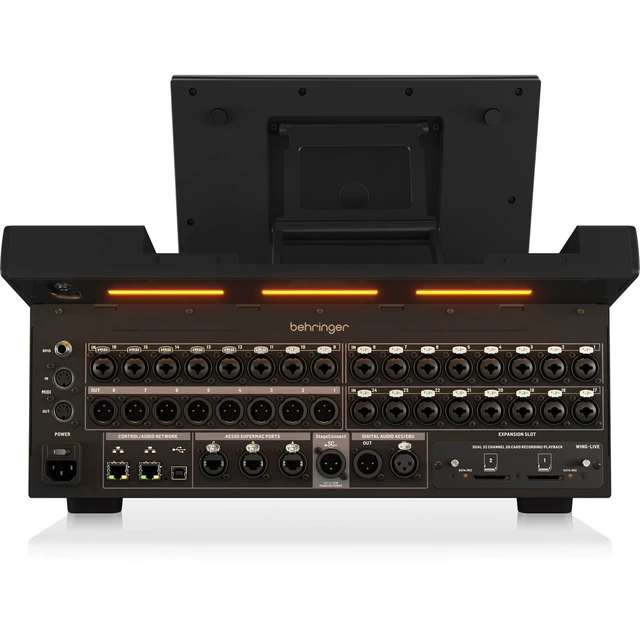

Connections
3 AES50 ports for a total of 144 input and output signals on SuperMac Cat 5 connections with ultralow jitter and 6-sample latency
40 stereo input channels with 5 variable plug-in processing slots each
8 stereo aux input channels with single FX insert slot, expander/limiter, and 4-band parametric EQ
8 Mute Groups and 8 DCAs for track grouping and consolidation
2 Ethernet ports with integrated switch for networked remote control and optional AoIP through Waves SoundGrid and Dante
Rear-panel expansion slot can host optional 64-channel audio interface and networking expansion cards (e.g. Dante, WSG, MADI)
StageConnect Host interface for sharing of up to 32 channels in either direction via single XLR connection
2-channel GPIO for controlling almost anything with WING
5-pin MIDI in and out for control and synchronization with external devices
48 FlexChannels
Stereo or MonoYou Decide Set all channel and buses to mono, stereo, or even M/S while maintaining the full channel count (FX slots included) at no performance cost at all
Superior Sound, Seamless Setup Give musicians an immersive experience of full stereo in-ear monitoring with WING's 16 stereo buses. You can also add stereo insert effects to any channel with just a single click
Limitless Potential WING's flexible channel configuration adapts to your needs, offering up to 48 channels in any Mono, Stereo, or M/S format

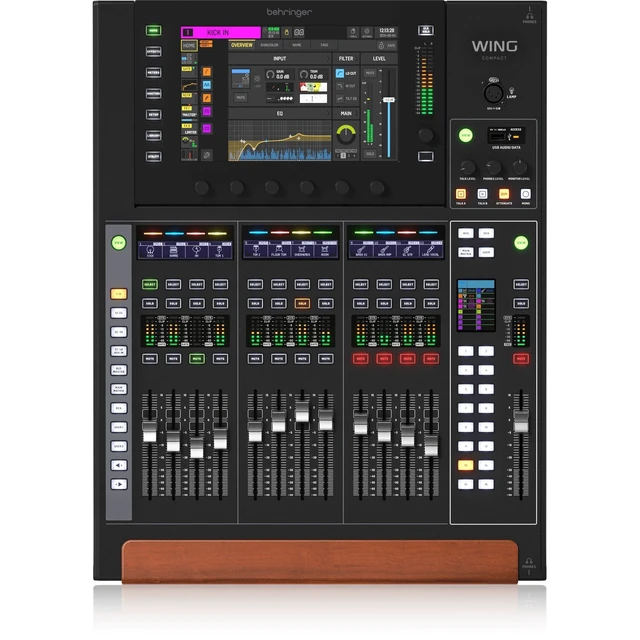

Take Full Control
WING COMPACT features a console surface optimized for fast and accurate operation, excelling specifically in monitor mixing applications.
Dedicated master and bus section, with 4 layers of 16
