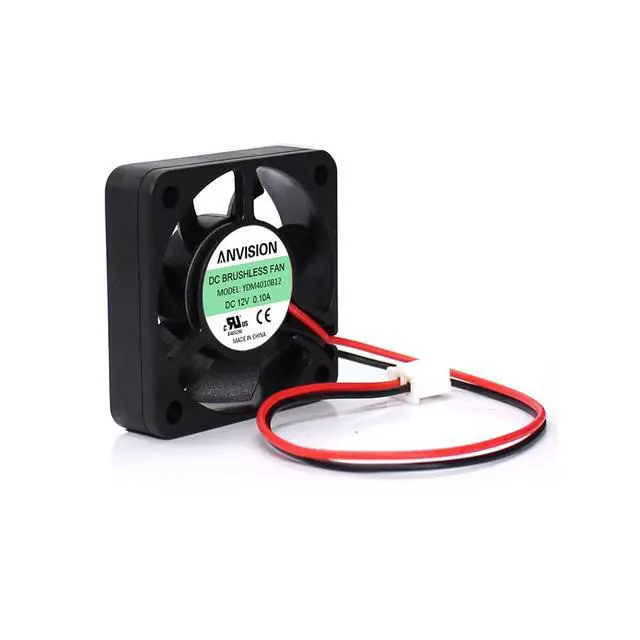

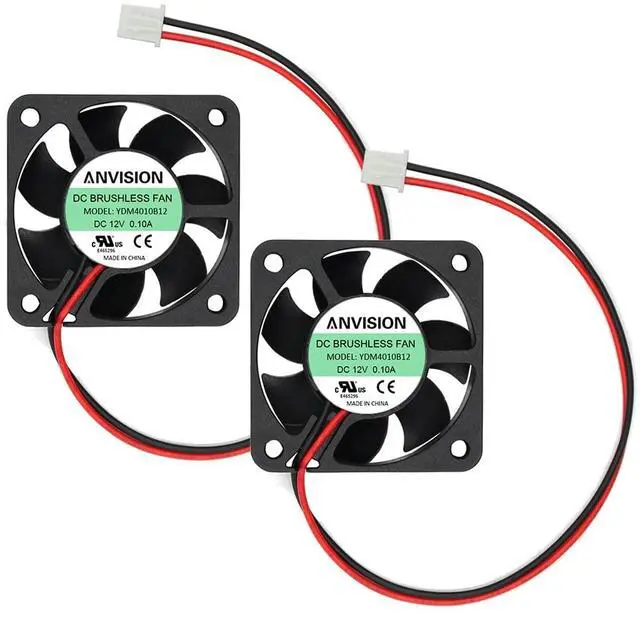

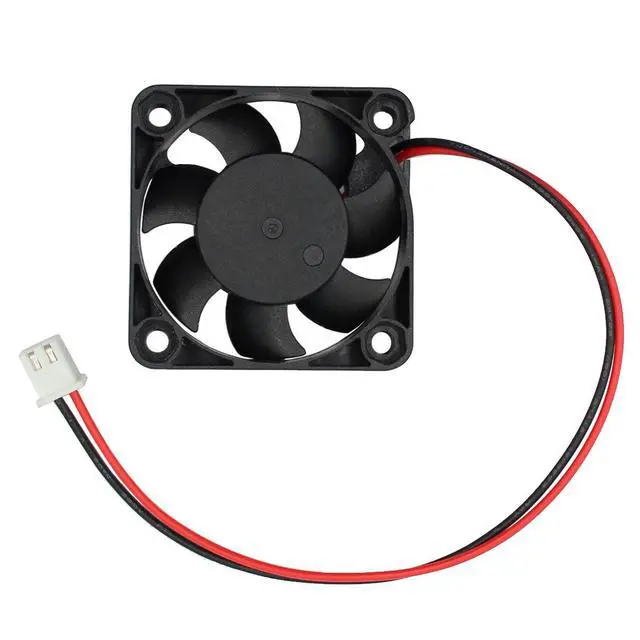

2-Pack 40mm x 10mm DC 12V Brushless Cooling Fan, Dual Ball Bearing, YDM4010B12
- Rated Voltage: 12V DC, Current: 0.1A
- Airflow: 7.56CFM, Speed: 6200RPM, Noise: 27.50dBA
- Bearing Type: Dual Ball Bearing

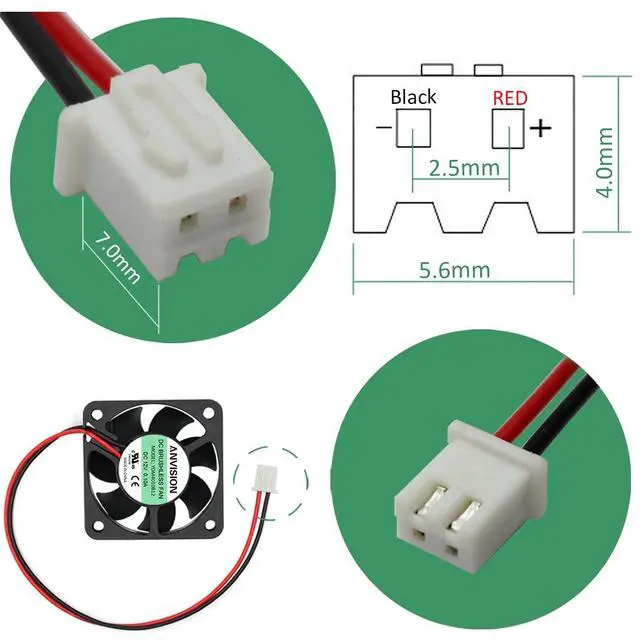

- Dimension: 40mm x 40mm x 10mm (1.57inch x 1.57inch x 0.39inch), Lead Wire: 2-pin-XH2.54mm connector, length: 150mm / 5.90inch
- Warranty: two years, Package: 2x DC brushless fans
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

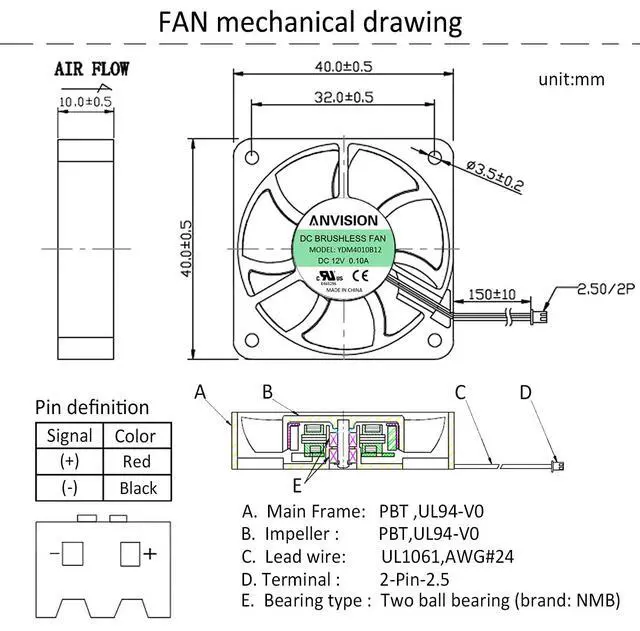

Dimension: 40*40*10mm
Housing: Black PBT (UL94V-0)

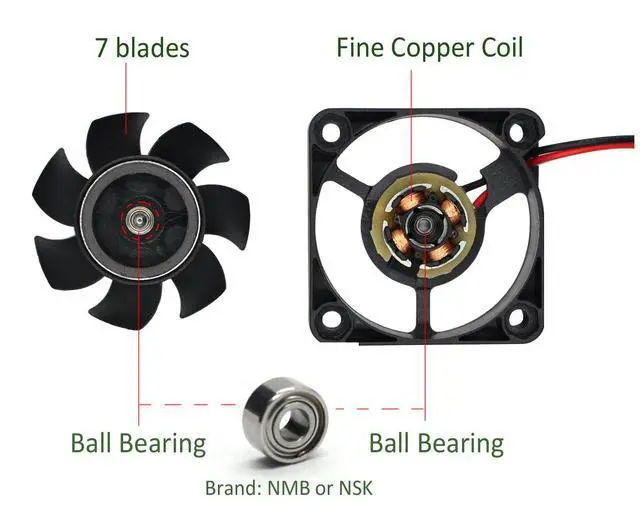

Fan Blade: 7 Blades, Black PBT (UL94V-0)
Bearing System: Two Ball Bearings
Net Weight: 13.7g
Rated Voltage: 12V DC
Operating Voltage Range: 10.8-13.2V DC
Start-up Voltage: 6.0V DC
Rated Current: 0.04A (0.10A Max.)
Rated Power: 0.48W (1.2W Max.)
Rated Speed: 6200PRM
Air Flow: 7.56CFM
Air Pressure: 3.19mmH2O
*Noise Level: 27.50dB(A)
Lift Expectancy: 50000H at 25degree test
*Acoustical Noise Testing Condition: Fan is hanged in anechoic chamber, noise is measured at rated voltage in anechoic chamber with microphone at a distance of 1 meter formthe air intake.
