Optimised for Static Pressure
During the development of the new P12, special emphasis was placed on a focused airstream and thus a high static pressure. The fan assures extremely efficient cooling, even with increased air resistance. Therefore, the P12 is particularly suitable for use on heatsinks and radiators.
Lower Power Consumption
A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature.

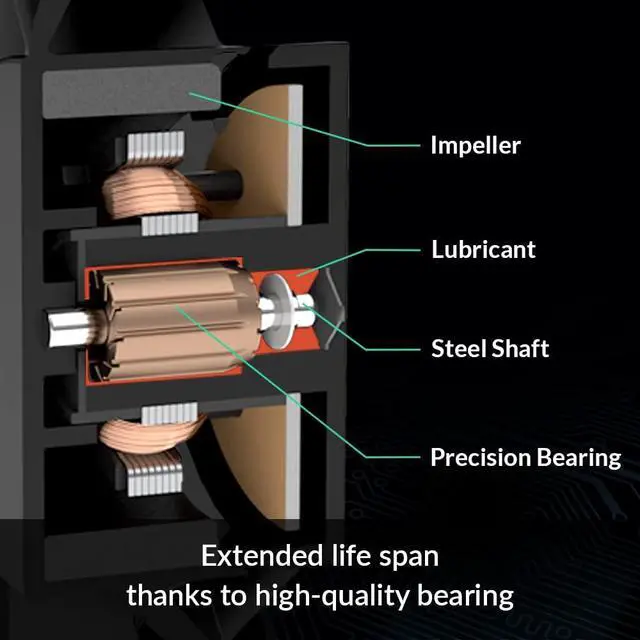

High Quality Bearing
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
Highly Efficient
The ARCTIC P12 Case Fan is the ultimate PC-Cooler solution.
General Data
Performance
Fan Speed: 1800 rpm
Airflow: 56.3 cfm | 95.7 m³/h
Static Pressure: 2.20 mmH2O
Noise Level: 0.3 Sone
Operating Ambient Temperature: 0–40 °C
Fan
Fan Frame: Standard
Control Type: Fixed Speed
Connector: 3-Pin Connector
Fan Bearing: Fluid Dynamic Bearing
Electric Characteristics
Typical Voltage: 12 V DC
Starting Voltage: 2.8 V
Current | Voltage: 0.16 A | 12 V
Cable Length: 400 mm
Size & Weight
- Length: 120 mm
- Width: 120 mm
- Height: 25 mm
- Weight: 139 g
 P12 (5 Pack) |  F12 (5 Pack) |  P12 Slim PWM PST (3 Pack) | P12 PWM PST (5 Pack) |  P12 Max (5 Pack) |  P12 PWM PST A-RGB (3 Pack) | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — no data | — no data | — |
| Size | 120?x?120?x?25 mm | 120?x?120?x?25 mm | 120?x?120?x?15 mm | 120?x?120?x?25 mm | 120 x 120 x 25 mm | 120?x?120?x?25 mm |
| Fan Speed | 1800 rpm | 1350 rpm | 300–2100 rpm | 200-1800 rpm | 200-3300 rpm | 200–2000 rpm |
| Airflow | 56.3 cfm | 95.7 m³/h | 53 cfm | 90.1 m³/h | 42.1 cfm | 71.53 m³/h | 56.3 cfm | 95.7 m³/h | 81.04 cfm | 137.69 m³/h | 48.8 cfm | 82.91 m³/h |
| Noise Level | 0.3 Sone | 0.3 Sone | 0.3 Sone | 0.3 Sone | 0.6 Sone | 0.3 Sone |
| Control Type | Fixed Speed | Fixed Speed | PWM PST | PWM PST | PWM | PWM PST |
| Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing |
| Weight | 139 g | 107 g | 85 g | 145 g | 184 g | 159 g |
| Static Pressure | 2.2 mmH2O | 1.0 mmH2O | 1.45 mmH2O | 2.2 mmH2O | 4.35 mmH2O | 1.85 mmH2O |
Optimised for Static Pressure
During the development of the new P12, special emphasis was placed on a focused airstream and thus a high static pressure. The fan assures extremely efficient cooling, even with increased air resistance. Therefore, the P12 is particularly suitable for use on heatsinks and radiators.
Lower Power Consumption
A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature.
High Quality Bearing
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
Highly Efficient
The ARCTIC P12 Case Fan is the ultimate PC-Cooler solution.
General Data
Performance
Fan Speed: 1800 rpm
Airflow: 56.3 cfm | 95.7 m³/h
Static Pressure: 2.20 mmH2O
Noise Level: 0.3 Sone
Operating Ambient Temperature: 0–40 °C
Fan
Fan Frame: Standard
Control Type: Fixed Speed
Connector: 3-Pin Connector
Fan Bearing: Fluid Dynamic Bearing
Electric Characteristics
Typical Voltage: 12 V DC
Starting Voltage: 2.8 V
Current | Voltage: 0.16 A | 12 V
Cable Length: 400 mm
Size & Weight
- Length: 120 mm
- Width: 120 mm
- Height: 25 mm
- Weight: 139 g
P12 (5 Pack) | F12 (5 Pack) |  P12 Slim PWM PST (3 Pack) | P12 PWM PST (5 Pack) | P12 Max (5 Pack) | P12 PWM PST A-RGB (3 Pack) | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — no data | — no data | — |
| Size | 120?x?120?x?25 mm | 120?x?120?x?25 mm | 120?x?120?x?15 mm | 120?x?120?x?25 mm | 120 x 120 x 25 mm | 120?x?120?x?25 mm |
| Fan Speed | 1800 rpm | 1350 rpm | 300–2100 rpm | 200-1800 rpm | 200-3300 rpm | 200–2000 rpm |
| Airflow | 56.3 cfm | 95.7 m³/h | 53 cfm | 90.1 m³/h | 42.1 cfm | 71.53 m³/h | 56.3 cfm | 95.7 m³/h | 81.04 cfm | 137.69 m³/h | 48.8 cfm | 82.91 m³/h |
| Noise Level | 0.3 Sone | 0.3 Sone | 0.3 Sone | 0.3 Sone | 0.6 Sone | 0.3 Sone |
| Control Type | Fixed Speed | Fixed Speed | PWM PST | PWM PST | PWM | PWM PST |
| Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing |
| Weight | 139 g | 107 g | 85 g | 145 g | 184 g | 159 g |
| Static Pressure | 2.2 mmH2O | 1.0 mmH2O | 1.45 mmH2O | 2.2 mmH2O | 4.35 mmH2O | 1.85 mmH2O |
