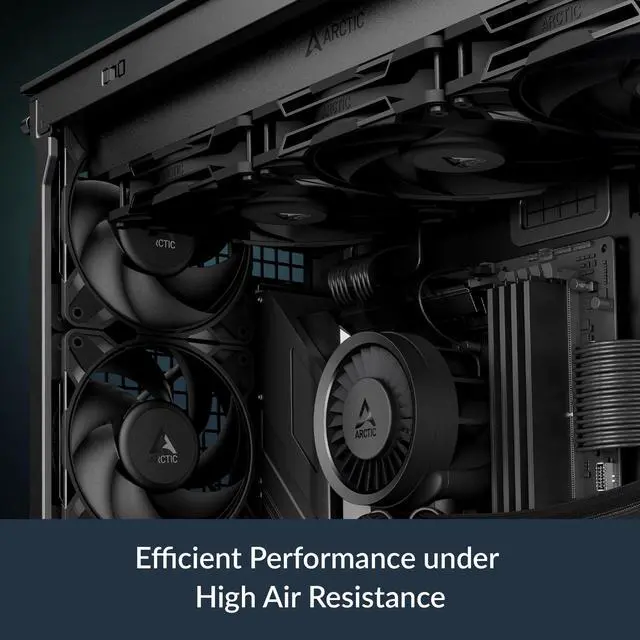

The high static pressure makes Pro fans ideal for use on radiators, as they can effectively move air through tight obstacles. Pressure-optimized fans are also particularly suitable for use with perforated panels or mesh fabrics, which create additional resistance.
Maximum Performance, Redefined
Revised fan blade design for an optimal balance of performance and quiet operation.
PST - Proven Cable Management
Thanks to an additional PWM connector, the P12 Pro PST can be directly connected to additional fans. This allows multiple fans to be daisy-chained and controlled synchronously via a single connector.
SOTA Microcontroller
Reduces motor noise and automatically compensates for speed drops due to increased resistance. Integrated protection mechanisms limit inrush current peaks and reliably protect against damage caused by reverse polarity.

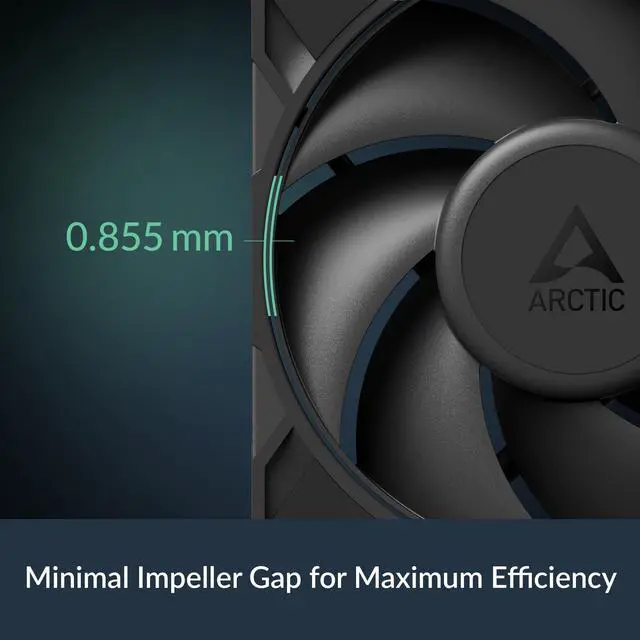

Minimal gaps for maximum efficiency
Narrower manufacturing tolerances and gaps allow the fan to work more effectively against resistance, maximizing static pressure and airflow efficiency.
More power - Less noise
The fan impresses with a significant increase in performance even at low speeds. Normalized to 25 dB(A), the fan offers both increased airflow and increased static pressure – ideal for quiet and efficient cooling.

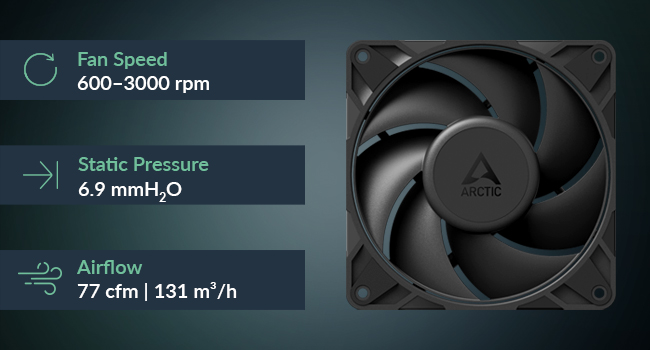

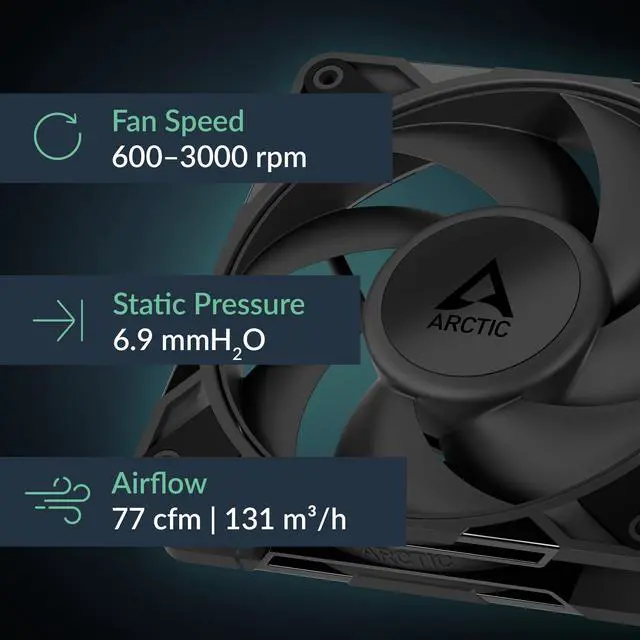

Technical Data
P12 Pro Series in Comparison
 P12 Pro PST |  P12 Pro PST - White | P12 Pro | P12 Pro PST CO |  P12 Pro A-RGB - Black |  P12 Pro A-RGB - White | |
|---|---|---|---|---|---|---|
Customer Reviews | — | — | — | — | — | — |
Price | — | — | — | — | — | — |
Fan Speed | 600–3000 rpm (PWM-controlled) | 600–3000 rpm (PWM-controlled) | 600–3000 rpm (PWM-controlled) | 600–3000 rpm (PWM-controlled) | 600–3000 rpm (PWM-controlled) | 600–3000 rpm (PWM-controlled) |
Airflow | 77 cfm | 131 m³/h | 77 cfm | 131 m³/h | 77 cfm | 131 m³/h | 77 cfm | 131 m³/h | 77 cfm | 131 m³/h | 77 cfm | 131 m³/h |
Bearing | Hydrodynamic Bearing | Hydrodynamic Bearing | Hydrodynamic Bearing | Dual Ball Bearing | Hydrodynamic Bearing | Hydrodynamic Bearing |
Static Pressure | 6,9 mmH2O | 6,9 mmH2O | 6,9 mmH2O | 6,9 mmH2O | 6,9 mmH2O | 6,9 mmH2O |
Cable Length | 400mm + 80mm Daisy-Chain Cable | 400mm + 80mm Daisy-Chain Cable | 400mm | 400mm + 80mm Daisy-Chain Cable | 400mm + 80mm Daisy-Chain Cable | 400mm + 80mm Daisy-Chain Cable |
Connection | 4-Pin Connctor | 4-Pin Connctor | 3-Pin Connctor | 4-Pin Connctor | 4-Pin Connctor | 4-Pin Connctor |
A-RGB LEDs | / | / | / | / | 12x A-RGB Gen2 LEDs | 12x A-RGB Gen2 LEDs |
RGB Connector | / | / | / | / | 3-pin A-RGB connector | 3-pin A-RGB connector |
Dimensions (L x W x H) | 120 x 120 x 15 mm | 120 x 120 x 15 mm | 120 x 120 x 15 mm | 120 x 120 x 15 mm | 120 x 120 x 15 mm | 120 x 120 x 15 mm |
Weight | 185 g | 185 g | 183 g | 185 g | 184 g | 184 g |
The high static pressure makes Pro fans ideal for use on radiators, as they can effectively move air through tight obstacles. Pressure-optimized fans are also particularly suitable for use with perforated panels or mesh fabrics, which create additional resistance.
Maximum Performance, Redefined
Revised fan blade design for an optimal balance of performance and quiet operation.

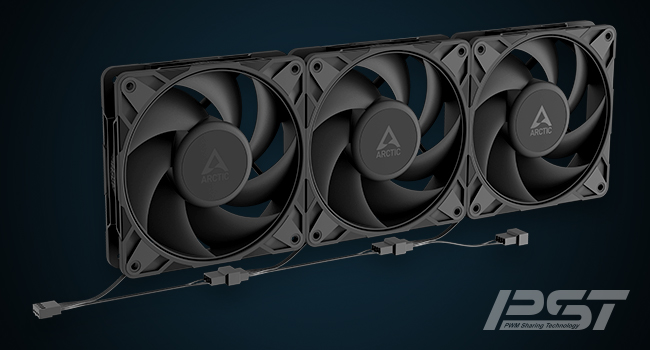

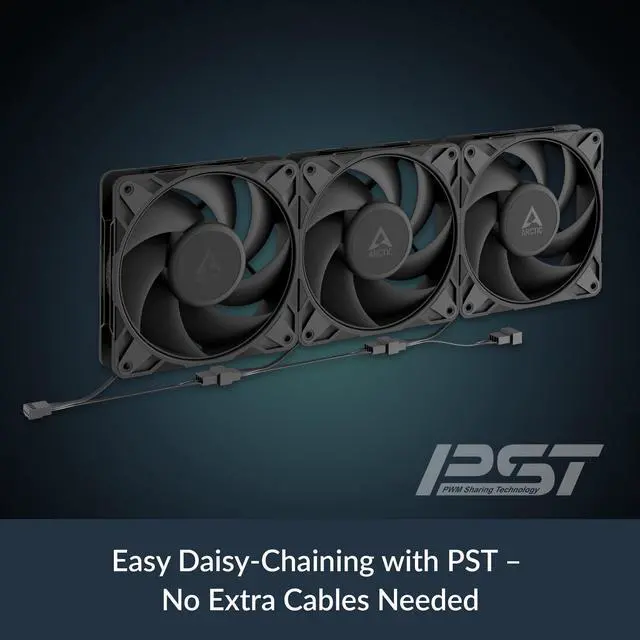

PST - Proven Cable Management
Thanks to an additional PWM connector, the P12 Pro PST can be directly connected to additional fans. This allows multiple fans to be daisy-chained and controlled synchronously via a single connector.

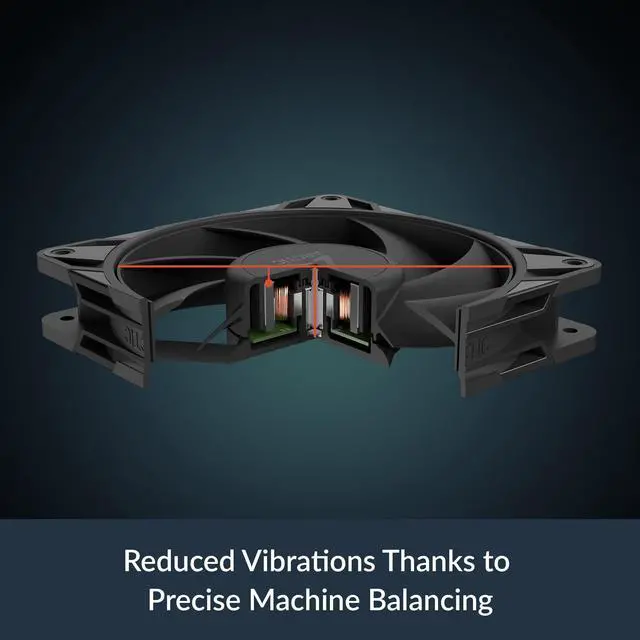

Automated Balancing
The precisely calculated balancing compound is injected precisely in one plane. This effectively reduces vibrations and ensures particularly smooth and long-lasting performance.

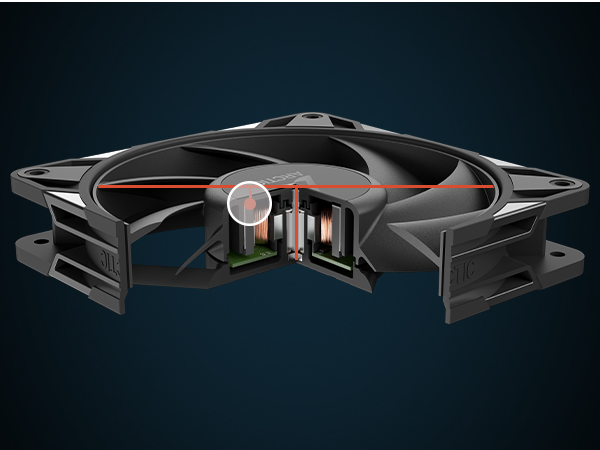

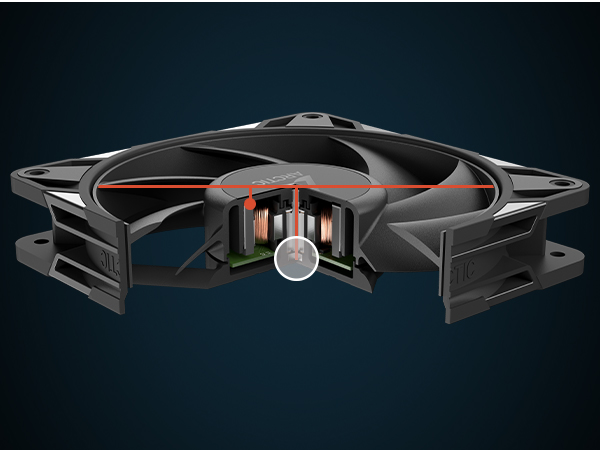

Optimized Bearing-Shaft Design (FDB)
Hydrodynamic plain bearing and extended impeller shaft – for better pressure distribution and reduced vibration, enabling particularly smooth operation.
High-Precision Measurement
An automated measuring system detects even the smallest imbalances and geometric deviations with high precision. Based on this data, each fan is precisely balanced.
SOTA Microcontroller
Reduces motor noise and automatically compensates for speed drops due to increased resistance. Integrated protection mechanisms limit inrush current peaks and reliably protect against damage caused by reverse polarity.

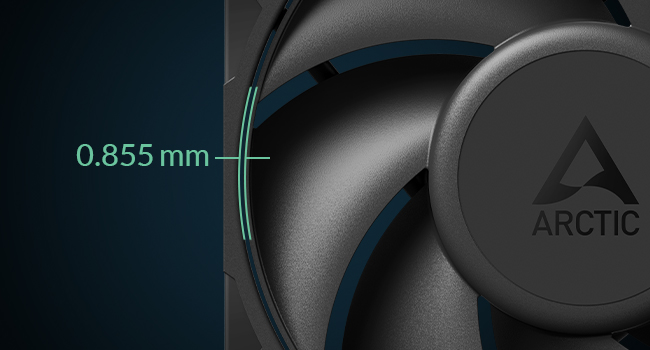

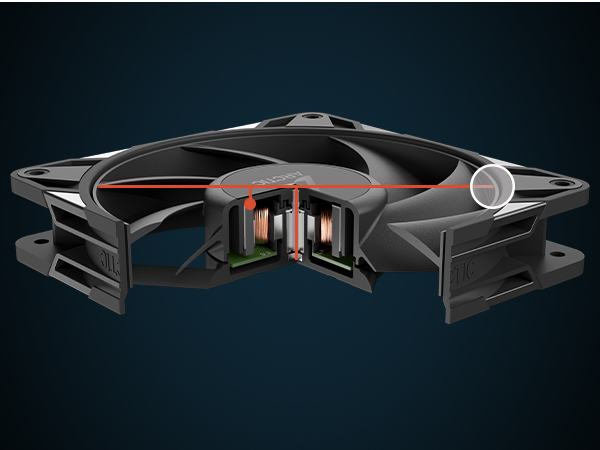

Minimal gaps for maximum efficiency
Narrower manufacturing tolerances and gaps allow the fan to work more effectively against resistance, maximizing static pressure and airflow efficiency.
More power - Less noise
The fan impresses with a significant increase in performance even at low speeds. Normalized to 25 dB(A), the fan offers both increased airflow and increased static pressure – ideal for quiet and efficient cooling.
Technical Data
| Speed | 600–3000 rpm (PWM controlled), 0 rpm below 5% PWM |
|---|---|
| Airflow | 77 cfm | 131 m³/h |
| Static pressure | 6.9 mmH2O |
| Fan bearing | Hydrodynamic sleeve bearing |
| Typical voltage | 12 V DC |
| Start-up voltage | 3.3 V DC |
| Current | 0.33 A |
| Cable length | 400 mm + 80 mm daisy chain cable |
| Connector | 4-pin fan connector + 4-pin fan socket |
| Operating ambient temperature | 0–40 °C |
| Dimensions | 120 (L) x 120 (W) x 25 (H) mm |
| Weight | 185 g |
P12 Pro Series in Comparison
P12 Pro PST | P12 Pro PST - White | P12 Pro | P12 Pro PST CO | P12 Pro A-RGB - Black | P12 Pro A-RGB - White |
|---|---|---|---|---|---|
| Customer Reviews | |||||
| — | — | — | — | — | — |
| Price | |||||
| — | — | — | — | — | — |
| Fan Speed | |||||
| 600–3000 rpm (PWM-controlled) | 600–3000 rpm (PWM-controlled) | 600–3000 rpm (PWM-controlled) | 600–3000 rpm (PWM-controlled) | 600–3000 rpm (PWM-controlled) | 600–3000 rpm (PWM-controlled) |
| Airflow | |||||
| 77 cfm | 131 m³/h | 77 cfm | 131 m³/h | 77 cfm | 131 m³/h | 77 cfm | 131 m³/h | 77 cfm | 131 m³/h | 77 cfm | 131 m³/h |
| Bearing | |||||
| Hydrodynamic Bearing | Hydrodynamic Bearing | Hydrodynamic Bearing | Dual Ball Bearing | Hydrodynamic Bearing | Hydrodynamic Bearing |
| Static Pressure | |||||
| 6,9 mmH2O | 6,9 mmH2O | 6,9 mmH2O | 6,9 mmH2O | 6,9 mmH2O | 6,9 mmH2O |
| Cable Length | |||||
| 400mm + 80mm Daisy-Chain Cable | 400mm + 80mm Daisy-Chain Cable | 400mm | 400mm + 80mm Daisy-Chain Cable | 400mm + 80mm Daisy-Chain Cable | 400mm + 80mm Daisy-Chain Cable |
| Connection | |||||
| 4-Pin Connctor | 4-Pin Connctor | 3-Pin Connctor | 4-Pin Connctor | 4-Pin Connctor | 4-Pin Connctor |
| A-RGB LEDs | |||||
| / | / | / | / | 12x A-RGB Gen2 LEDs | 12x A-RGB Gen2 LEDs |
| RGB Connector | |||||
| / | / | / | / | 3-pin A-RGB connector | 3-pin A-RGB connector |
| Dimensions (L x W x H) | |||||
| 120 x 120 x 15 mm | 120 x 120 x 15 mm | 120 x 120 x 15 mm | 120 x 120 x 15 mm | 120 x 120 x 15 mm | 120 x 120 x 15 mm |
| Weight | |||||
| 185 g | 185 g | 183 g | 185 g | 184 g | 184 g |
