AC Infinity is a technology company that specializes in environmental controls for audio/video and HVAC. The company was founded on the principle of working closely with customers to develop great products. Dependable service and a commitment to product quality are the foundations of the business's values.
AIRCOM Series
AIRPLATE Series
CLOUDPLATE Series
MULTIFAN Series
AIRPLATE S Series

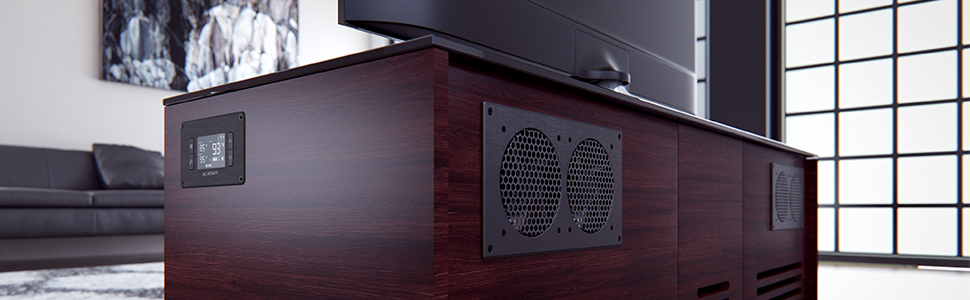

Speed controlled fan systems designed for cooling AV and home theater cabinets. Compatible with AC Infinity Thermal Controller.
Key Features
Multi-Speed Controller
With power switch enables setting the fan’s speed to optimal noise and airflow levels for various applications and noise environments.
Ultra-Quiet Fans
Designed to maximize airflow CFM to noise dBA ratio. Dual-ball bearings rated at 67,000 hours allows vertical and horizontal mounting.
Quality Approved
Contains axial fans that are UL recognized under certificate E503903 by Underwriter Laboratories. Verifiable through UL Online Certifications Directory.

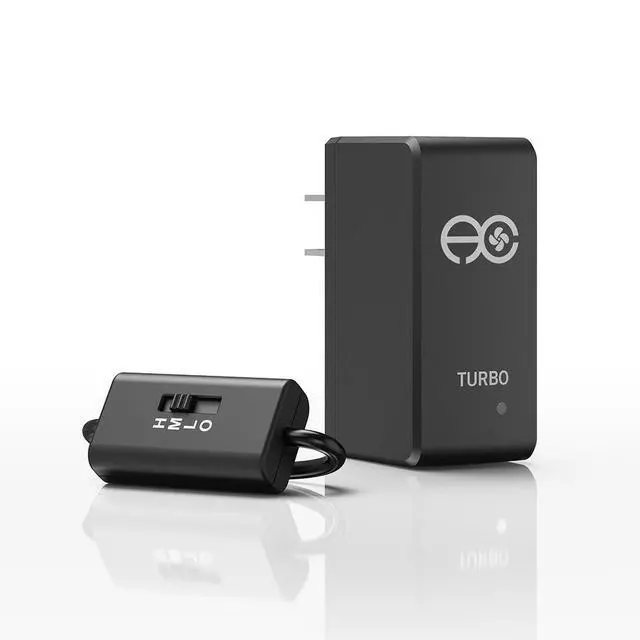

USB Port or Wall Outlet
Can be used to power the fan unit. Includes a Turbo Wall Adapter that increases the fan's RPM by up to 25% and boosts airflow ratings.
Connecting Additional Units

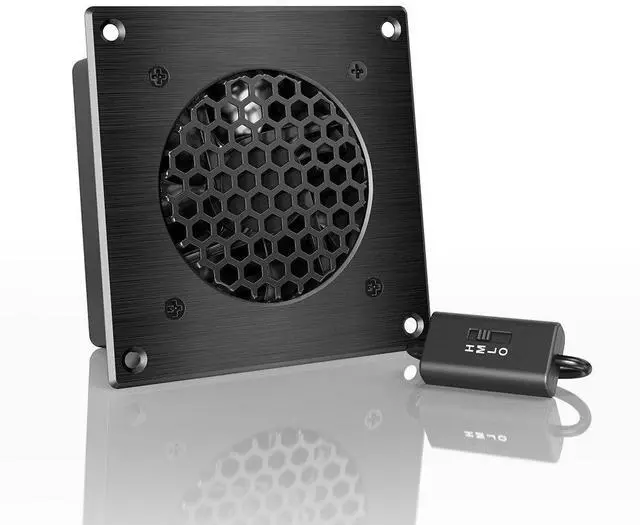

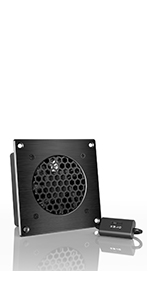

Multiple AIRPLATE S1
Up to six AIRPLATE S1 fans can be daisy chained to share the same speed controller and wall outlet. This set up is able to reach multiple areas of component shelves and can provide up to 156 CFM of airflow.

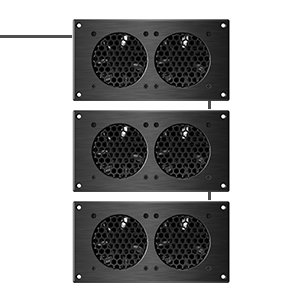

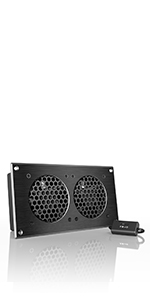

Multiple AIRPLATE S5
Up to three AIRPLATE S5 fans can be daisy chained to share the same speed controller and wall outlet. This set up is ideal for computer and audio video cabinets, and can provide up to 156 CFM of airflow.

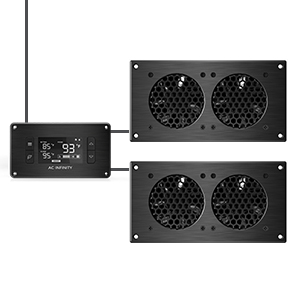

Controller Plus Two AIRPLATE T5
Two AIRPLATE T5 fans and an AC Infinity standard fan controller can be used in conjunction for a total of 104 CFM. This set-up is ideal for computer cabinets and component shelves.

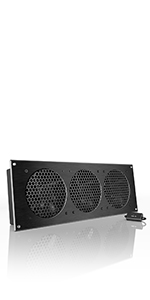

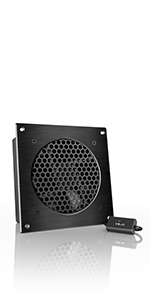

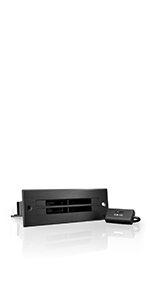

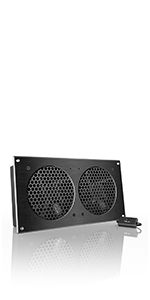

 AC Infinity, AIRPLATE S1 Home Theater and AV Cabinet Fan 4" |  AC Infinity, AIRPLATE S2 Home Theater and AV Cabinet Fan 6" |  AC Infinity, AIRPLATE S3 Home Theater and AV Cabinet Fan 6" |  AC Infinity, AIRPLATE S5 Home Theater and AV Cabinet Fan 8" |  AC Infinity, AIRPLATE S7 Home Theater and AV Cabinet Fan 12" |  AC Infinity, AIRPLATE S9 Home Theater and AV Cabinet Fan 18" | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Model | AI-CFS80BA | AI-APS2 | AI-CFS120BA | AI-CFD80BA | AI-CFD120BA | AI-APS9 |
| Dimensions | 4.6 x 4.6 x 1.3 in | 5.8 x 2.0 x 4.7 in | 6.3 x 6.3 x 1.3 in | 8.5 x 4.4 x 1.3 in | 11.7 x 6.1 x 1.3 in | 17.5 x 6.1 x 1.3 in |
| Airflow | 26 CFM | 35 CFM | 52 CFM | 52 CFM | 104 CFM | 156 CFM |
| Noise | 17 dBA | 17 dBA | 18 dBA | 18 dBA | 19 dBA | 21 dBA |
| Power | 1.1 W | 1.1 W | 1.6 W | 1.9 W | 2.9 W | 3.6 W |
| Power Source | USB port or 100-240V AC Outlet, Includes Wall Adapter | USB port or 100-240V AC Outlet, Includes Wall Adapter | 100-240V AC Outlet, Includes Wall Adapter | USB port or 100-240V AC Outlet, Includes Wall Adapter | USB port or 100-240V AC Outlet, Includes Wall Adapter | USB port or 100-240V AC Outlet, Includes Wall Adapter |
| Controller | In-line speed controller with power switch | In-line speed controller with power switch | In-line speed controller with power switch | In-line speed controller with power switch | In-line speed controller with power switch | In-line speed controller with power switch |
| Max fans sharing same controller and power source | 4 fans USB port; 6 fans wall outlet (this model contains 1 fan) | 4 fans USB port; 6 fans wall outlet (this model contains 1 fan) | 4 fans USB port; 6 fans wall outlet (this model contains 1 fan) | 4 fans USB port; 6 fans wall outlet (this model contains 2 fans) | 4 fans USB port; 6 fans wall outlet (this model contains 2 fans) | 4 fans USB port; 6 fans wall outlet (this model contains 2 fans) |
| Contains AC Infinity axial fans meeting UL-507 standards under UL certificate number E503903 | ? | ? | ? | ? | ? | ? |
| Includes all hardware needed to mount the unit onto your cabinet | ? | ? | ? | ? | ? | ? |
