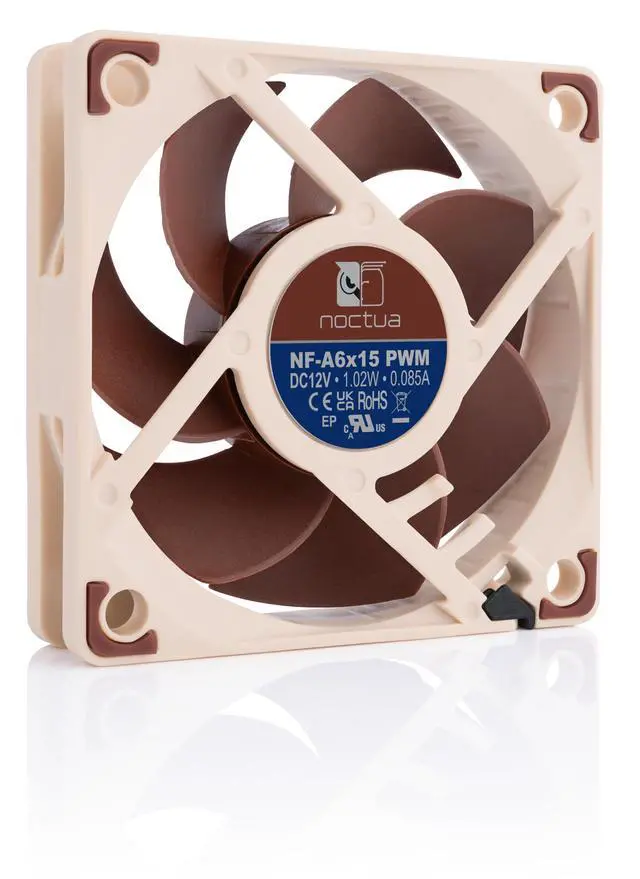

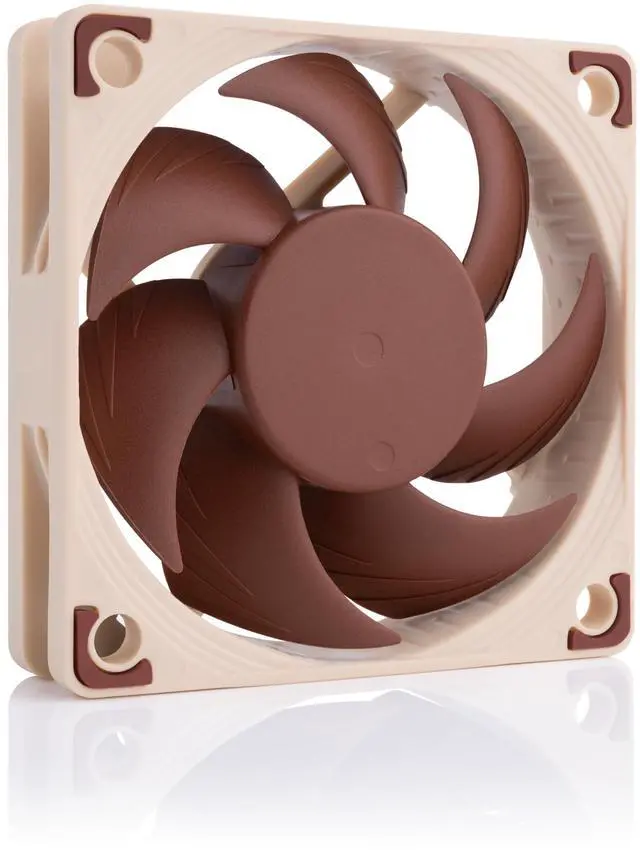

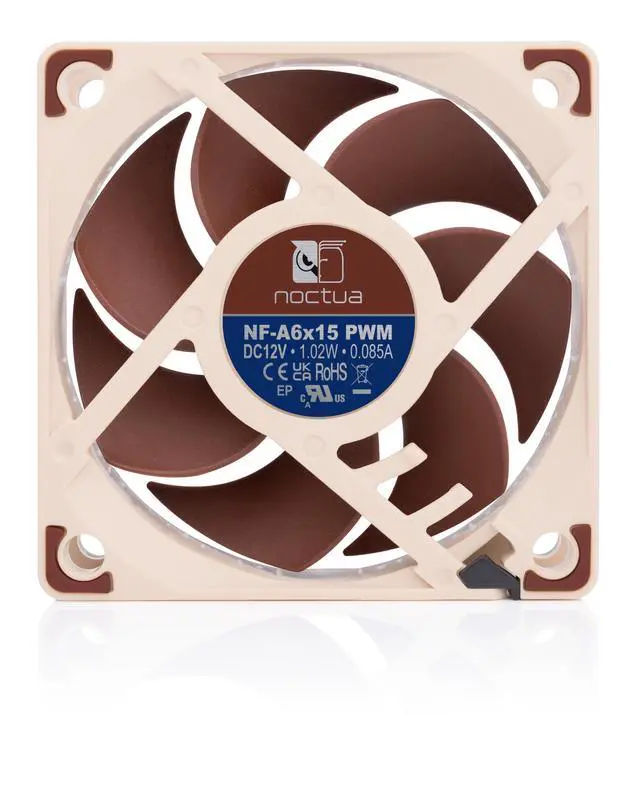

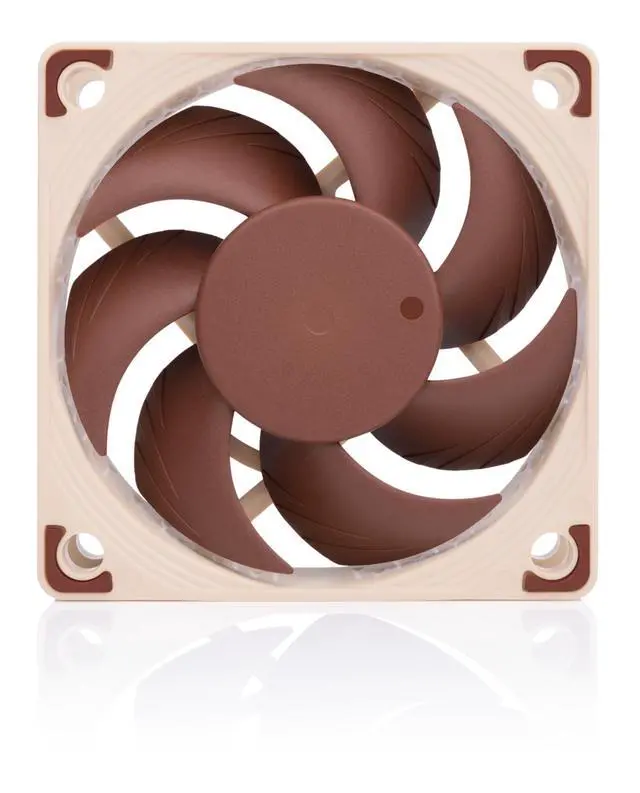

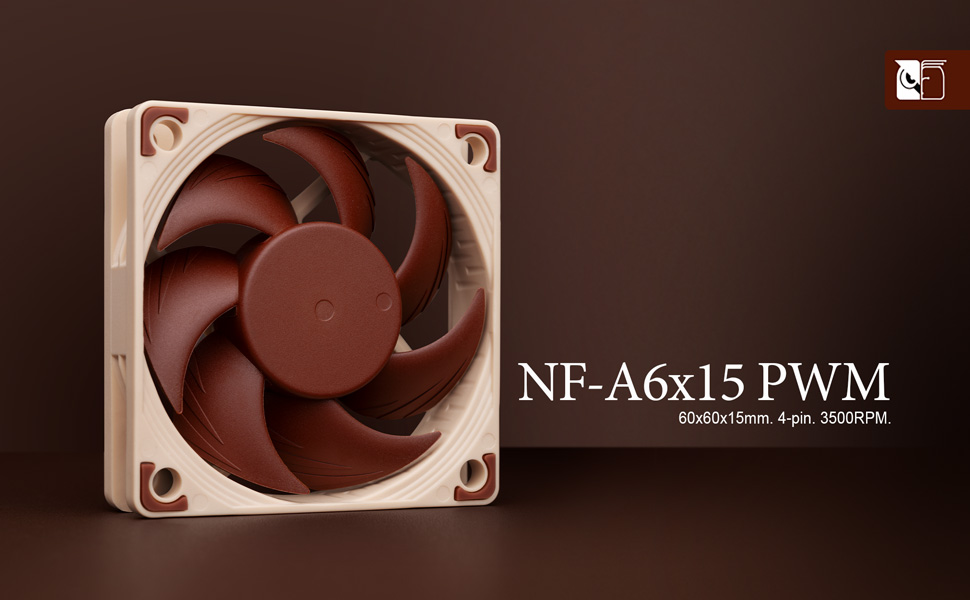

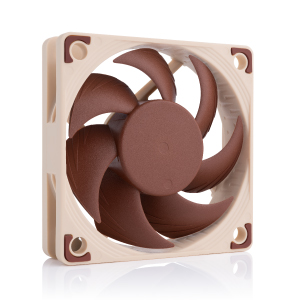

Featuring advanced aerodynamic design measures such as Flow Acceleration Channels and Noctua’s AAO frame, the NF-A6x15 is a highly optimised, premium-quality quiet fan in size 60x15mm. The PWM version uses Noctua’s custom-designed NE-FD1 IC for fully automatic speed control via 4-pin fan headers and comes with a Low-Noise Adaptor to reduce the maximum speed during PWM control from 3500 to 3050rpm. Its superb running smoothness, SSO2 bearing and Noctua’s trusted premium quality make it an elite choice for the highest demands.

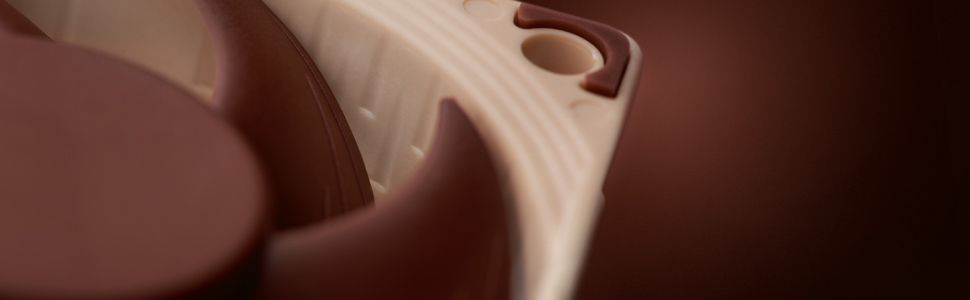

AAO frame
Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.
Integrated anti-vibration pads
Integrated anti-vibration pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard screws and most other mounting mechanisms.
SSO2 bearing
The NF-A6x15 features the further optimised second generation of Noctua’s renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.
Flow Acceleration Channels
The NF-A6x15 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.

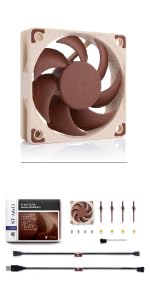

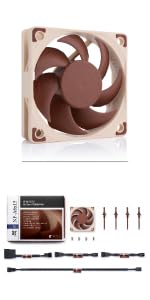

Scope of Delivery
- 4x NA-AV2 anti-vibration mounts
- NA-EC1 30cm extension cable
- NA-YC1 4-pin PWM splitter cable
- NA-RC14 Low-Noise Adaptor (L.N.A.)
- Fan screws
Custom-designed PWM IC with SCD
Supporting fully automatic PWM speed control, the NF-A6x15 PWM uses Noctua’s custom-designed NE-FD1 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at low speeds.
 NF-A6x15 PWM |  NF-A6x15 FLX |  NF-A6x15 5V PWM |  NF-A6x15 5V | |
|---|---|---|---|---|
| Customer Reviews | — | — | — | — |
| Price | — | — | — | — |
| Connector | 4-pin PWM | 3-pin | 4-pin PWM | 3-pin |
| Voltage | 12V | 12V | 5V | 5V |
| RPM | 3500 RPM | 3500 RPM | 3500 RPM | 3500 RPM |
| RPM with L.N.A. | 3050 RPM | 3050 RPM | - no data | - no data |
| RPM with U.L.N.A. | - no data | 2250 RPM | - no data | - no data |
| Acoustical Noise | 19,8 dB(A) | 19,8 dB(A) | 19,8 dB(A) | 19,8 dB(A) |
| Acoustical Noise with L.N.A. | 16,5 dB(A) | 16,5 dB(A) | - no data | - no data |
| Acoustical Noise with U.L.N.A. | - no data | 7,8 dB(A) | - no data | - no data |
| Size | 60x60x15 mm | 60x60x15 mm | 60x60x15 mm | 60x60x15 mm |
