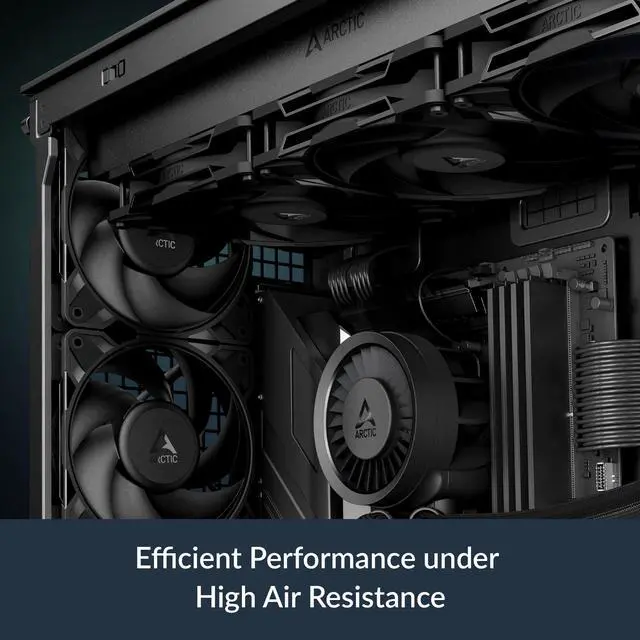

The high static pressure makes the Pro fans ideal for use on radiators as they can effectively move the air through tight obstacles. Pressure-optimized fans are also particularly suitable for pinhole covers or mesh fabrics that generate additional resistance.
Maximum Power, Redefined
Revised fan blade design for an optimal balance of performance and smoothness.

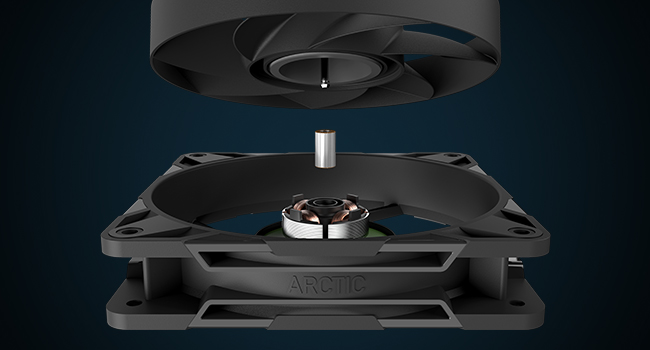

Optimized bearing-shaft design (FDB)
Hydrodynamic plain bearing and extended impeller shaft – for better pressure distribution and reduced vibrations, which enables particularly smooth operation.

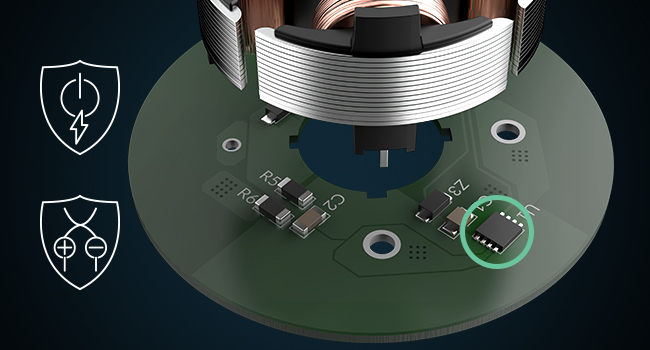

SOTA Microcontroller
Reduces motor noise and automatically compensates for speed drops with increased resistance. Integrated protection mechanisms limit inrush current peaks and reliably protect against damage caused by reverse polarity.
Minimum gap dimensions for maximum efficiency
Lower manufacturing tolerances and gap dimensions allow the fan to work more effectively against drag, maximizing static pressure and airflow efficiency.
More Power - Less Volume
The fan impresses with a significant increase in performance even in the low speed range. Normalized to 25 dB (A), the fan offers both higher air flow and increased static pressure – ideal for quiet and powerful cooling.
Technical Data
P14 Pro Series in Comparison
 P14 Pro | P14 Pro PST |  P14 Pro PST (White) | P14 Pro PST CO |  P14 Pro A-RGB |  P14 Pro A-RGB (White) | |
|---|---|---|---|---|---|---|
Customer Reviews | — | — | — | — | — | — |
Price | — | — | — | — | — | — |
Fan Speed | 400–2500 rpm (PWM-controlled) | 400–2500 rpm (PWM-controlled) | 400–2500 rpm (PWM-controlled) | 400–2500 rpm (PWM-controlled) | 400–2500 rpm (PWM-controlled) | 400–2500 rpm (PWM-controlled) |
Airflow | 110 cfm | 186 m³/h | 110 cfm | 186 m³/h | 110 cfm | 186 m³/h | 110 cfm | 186 m³/h | 110 cfm | 186 m³/h | 110 cfm | 186 m³/h |
Bearing Type | Hydrodynamic Bearing | Hydrodynamic Bearing | Hydrodynamic Bearing | Dual Ball Bearing | Hydrodynamic Bearing | Hydrodynamic Bearing |
Static Pressure | 5,2 mmH2O | 5,2 mmH2O | 5,2 mmH2O | 5,2 mmH2O | 5,2 mmH2O | 5,2 mmH2O |
Cable Length | 400mm | 400mm + 80mm Daisy-Chain Cable | 400mm + 80mm Daisy-Chain Cable | 400mm + 80mm Daisy-Chain Cable | 400mm + 80mm Daisy-Chain Cable | 400mm + 80mm Daisy-Chain Cable |
Connector | 4-Pin Connector | 4-Pin Connector | 4-Pin Connector | 4-Pin Connector | 4-Pin Connector | 4-Pin Connector |
A-RGB LEDs | / | / | / | / | 12x A-RGB Gen2 LEDs | 12x A-RGB Gen2 LEDs |
RGB Connector | / | / | / | / | 3-Pin-A-RGB-Connector | 3-Pin-A-RGB-Connector |
Dimensions (L x W x H) | 140 x 140 x 27 mm | 140 x 140 x 27 mm | 140 x 140 x 27 mm | 140 x 140 x 27 mm | 140 x 140 x 27 mm | 140 x 140 x 27 mm |
Weight | 240 g | 242 g | 242 g | 237 g | 237 g | 237 g |
The high static pressure makes the Pro fans ideal for use on radiators as they can effectively move the air through tight obstacles. Pressure-optimized fans are also particularly suitable for pinhole covers or mesh fabrics that generate additional resistance.
Maximum Power, Redefined
Revised fan blade design for an optimal balance of performance and smoothness.

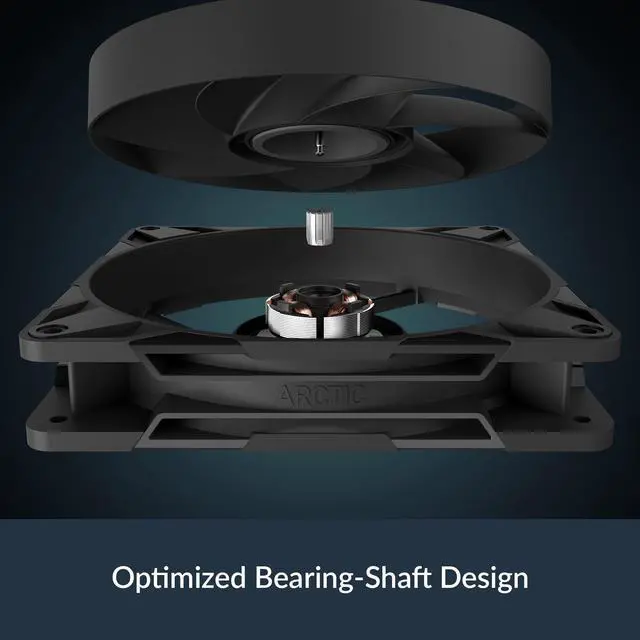

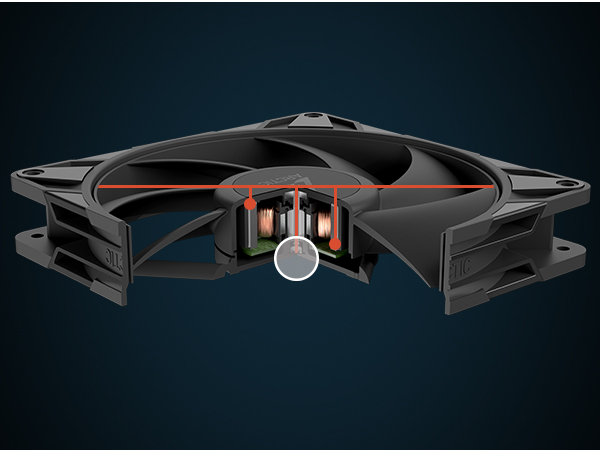

Optimized bearing-shaft design (FDB)
Hydrodynamic plain bearing and extended impeller shaft – for better pressure distribution and reduced vibrations, which enables particularly smooth operation.

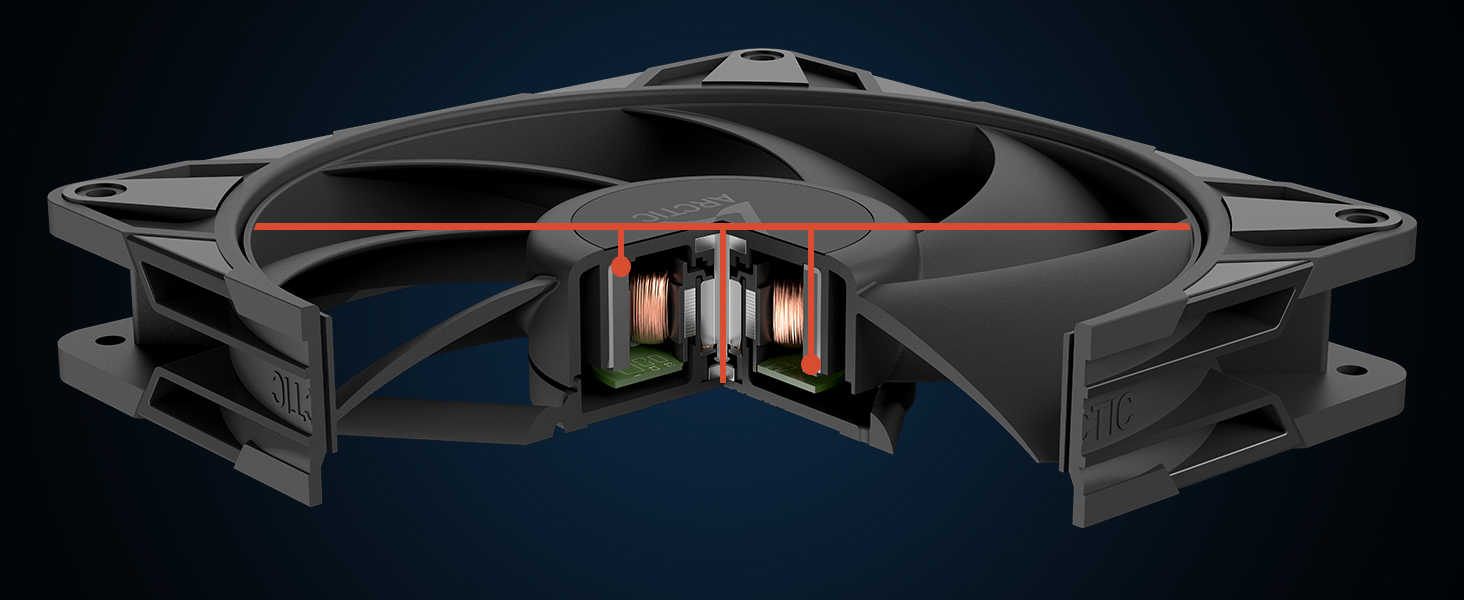

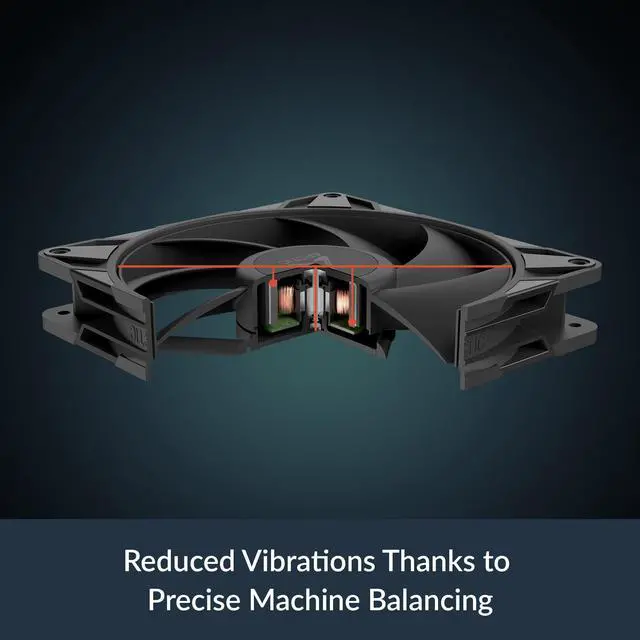

Automated Balancing
The precisely calculated balancing compound is injected with pinpoint accuracy into two planes. This effectively reduces vibrations and ensures particularly smooth and long-lasting performance.
Optimized Bearing-Shaft Design (FDB)
Hydrodynamic plain bearing and extended impeller shaft – for better pressure distribution and reduced vibration, enabling particularly smooth operation.
High-Precision Measurement
An automated measuring system detects the smallest imbalances and geometric deviations with high precision. Based on this data, each fan is precisely balanced.

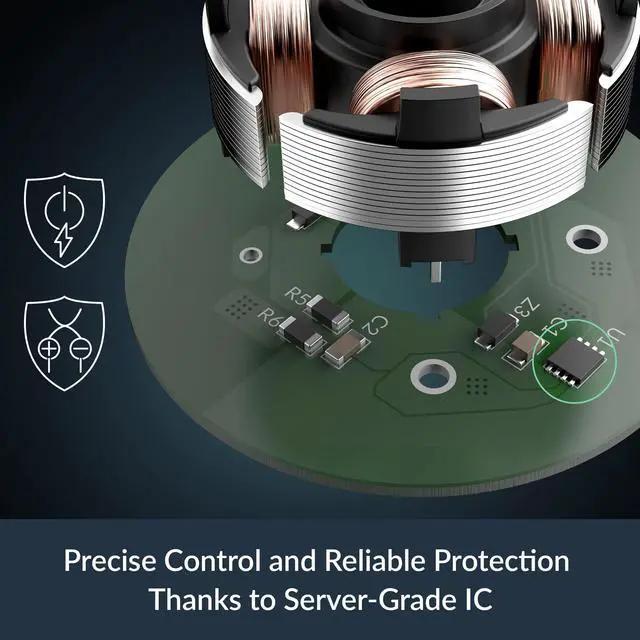

SOTA Microcontroller
Reduces motor noise and automatically compensates for speed drops with increased resistance. Integrated protection mechanisms limit inrush current peaks and reliably protect against damage caused by reverse polarity.

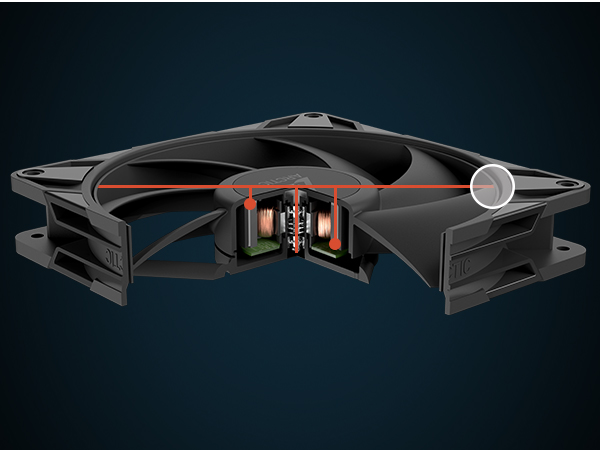

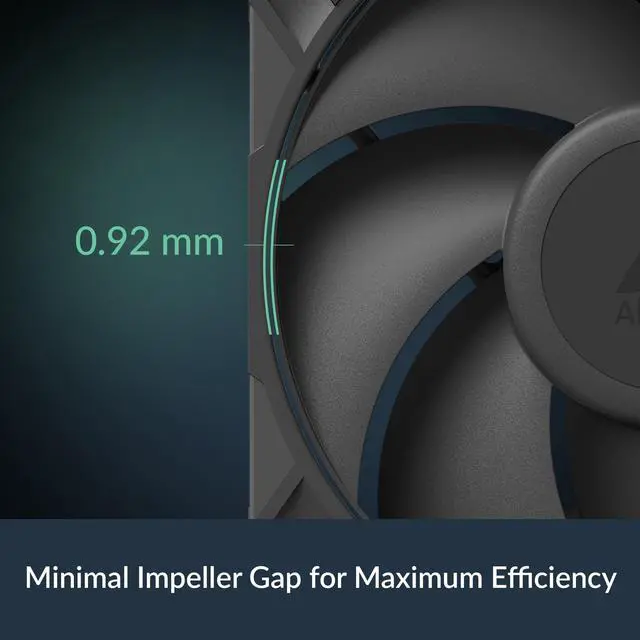

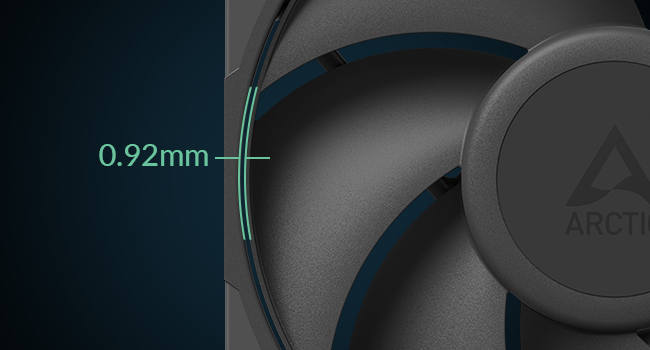

Minimum gap dimensions for maximum efficiency
Lower manufacturing tolerances and gap dimensions allow the fan to work more effectively against drag, maximizing static pressure and airflow efficiency.

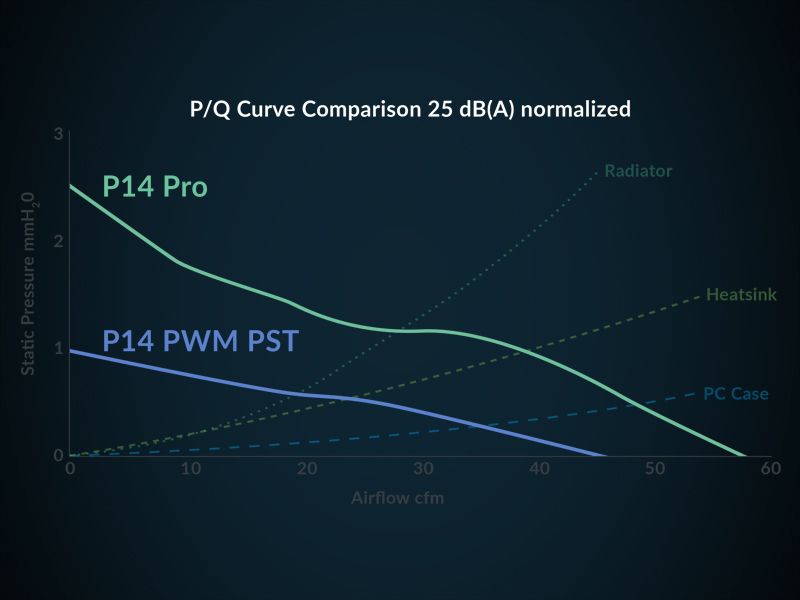

More Power - Less Volume
The fan impresses with a significant increase in performance even in the low speed range. Normalized to 25 dB (A), the fan offers both higher air flow and increased static pressure – ideal for quiet and powerful cooling.

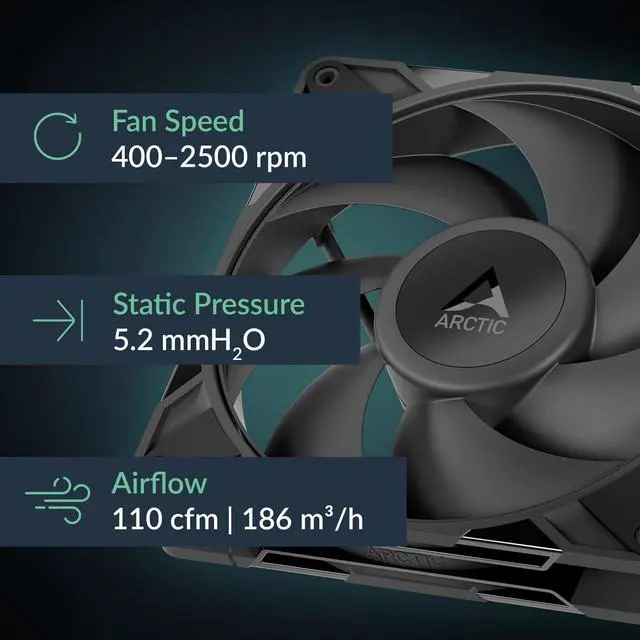

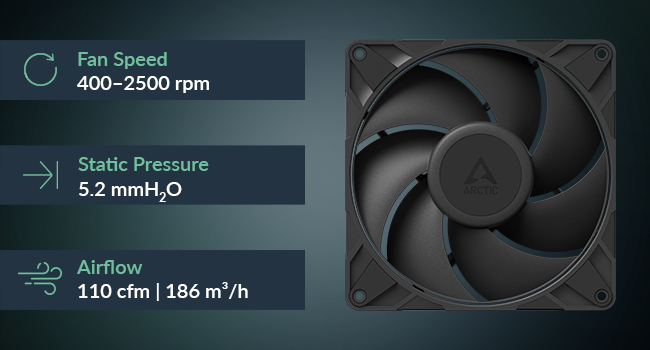

Technical Data
| Fan Speed | 400–2500 rpm (PWM-controlled), 0 rpm unter 5 % PWM |
|---|---|
| Airflow | 110 cfm | 186 m³/h |
| Static Pressure | 5,2 mmH2O |
| Typical Voltage | 12 V DC |
| Start-Up Voltage | 5 V DC |
| Current | 0.33 A |
| Cable Length | 400 mm |
| Connector | 4-Pin Fan Connector |
| Operating Ambient Temperature | 0–40 °C |
| Dimensions | 140 (L) x 140 (B) x 27 (H) mm |
| Weight | 240 g |
| Bearing Type | Hydrodynamic Bearing |
P14 Pro Series in Comparison
P14 Pro | P14 Pro PST | P14 Pro PST (White) | P14 Pro PST CO | P14 Pro A-RGB | P14 Pro A-RGB (White) |
|---|---|---|---|---|---|
| Customer Reviews | |||||
| — | — | — | — | — | — |
| Price | |||||
| — | — | — | — | — | — |
| Fan Speed | |||||
| 400–2500 rpm (PWM-controlled) | 400–2500 rpm (PWM-controlled) | 400–2500 rpm (PWM-controlled) | 400–2500 rpm (PWM-controlled) | 400–2500 rpm (PWM-controlled) | 400–2500 rpm (PWM-controlled) |
| Airflow | |||||
| 110 cfm | 186 m³/h | 110 cfm | 186 m³/h | 110 cfm | 186 m³/h | 110 cfm | 186 m³/h | 110 cfm | 186 m³/h | 110 cfm | 186 m³/h |
| Bearing Type | |||||
| Hydrodynamic Bearing | Hydrodynamic Bearing | Hydrodynamic Bearing | Dual Ball Bearing | Hydrodynamic Bearing | Hydrodynamic Bearing |
| Static Pressure | |||||
| 5,2 mmH2O | 5,2 mmH2O | 5,2 mmH2O | 5,2 mmH2O | 5,2 mmH2O | 5,2 mmH2O |
| Cable Length | |||||
| 400mm | 400mm + 80mm Daisy-Chain Cable | 400mm + 80mm Daisy-Chain Cable | 400mm + 80mm Daisy-Chain Cable | 400mm + 80mm Daisy-Chain Cable | 400mm + 80mm Daisy-Chain Cable |
| Connector | |||||
| 4-Pin Connector | 4-Pin Connector | 4-Pin Connector | 4-Pin Connector | 4-Pin Connector | 4-Pin Connector |
| A-RGB LEDs | |||||
| / | / | / | / | 12x A-RGB Gen2 LEDs | 12x A-RGB Gen2 LEDs |
| RGB Connector | |||||
| / | / | / | / | 3-Pin-A-RGB-Connector | 3-Pin-A-RGB-Connector |
| Dimensions (L x W x H) | |||||
| 140 x 140 x 27 mm | 140 x 140 x 27 mm | 140 x 140 x 27 mm | 140 x 140 x 27 mm | 140 x 140 x 27 mm | 140 x 140 x 27 mm |
| Weight | |||||
| 240 g | 242 g | 242 g | 237 g | 237 g | 237 g |
