PS5 NVMe SSD Heatsink, EL-P5C Heat Pipe + Solid Aluminum Cooler for PlayStation 5 Internal PCIe M.2 NVMe 4.0 Gen4 Memory, Re-Designed SSD Mounting Post Kit - (Not for Slim/Pro)
- [PS5 NVMe Heatsink] Patented heat sink for 1st PlayStation 5 (modeled CFI-1xxx) internal NVMe SSD. (Not for Slim or Pro). It features a heat pipe and a huge solid aluminum heatsink. The high performance comes from the numerous cooling fins and the delicate utilization of air circulation sucked by PS5 main cooling fan. The streamlined profile is a snag fit with the middle frame of PS5 chassis. The heatsink is the ultimate cooling solution to the heat management of extreme Gen4 gaming SSD
- [Heat Pipe and Thermal Pads] A 5mm copper heatpipe seamlessly embedded in the lower aluminum deck. The passive design with no cooling fan is aiming for being totally silent. The heat produced by the SSD will be absorbed by the heat pipe and effectively conducted to the extensive aluminum fins. Two pieces pre-divided thermal pads included for excellent heat connection. 1.0mm and 1.5mm thickness option adapts to any NVMe memory
- [Improved Mounting Post] It seems the leading maker Sony does not belong to M.2 SSD industry. We dont think that the stock screws mount M.2 SSD appropriately in the memory compartment. ElecGear did it better with a re-designed fixing structure for your gaming SSD. The modified guide post, standard M.2 screw and even a PVC washer to adjust the height of SSD are included in the box
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
for original PS5 alone, not for Slim or Pro
NVMe SSD Cooler Designed for PS5 Internal NVMe SSD

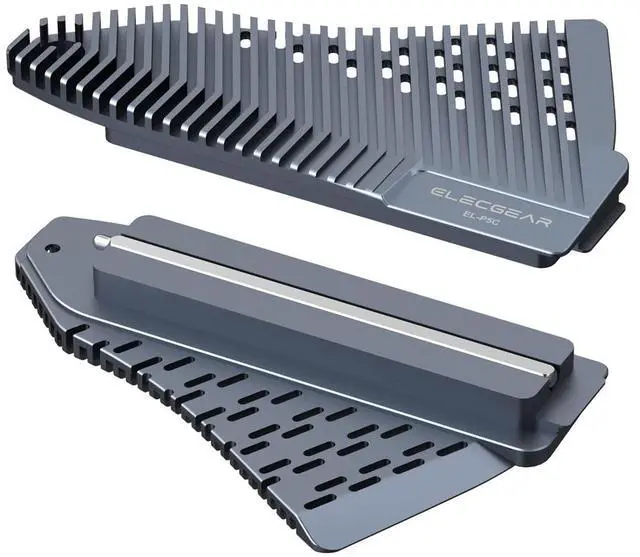

A 5mm High-end Heat Pipe & Solid Aluminum Heatsink

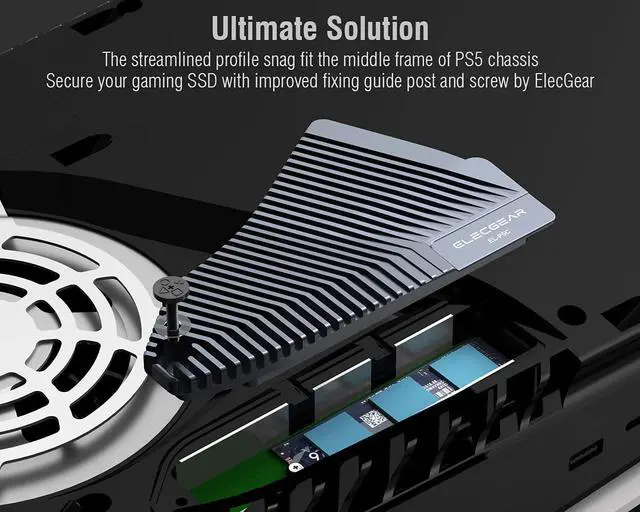

Snag Fit with the Middle Frame of PS5 Disc and Digital

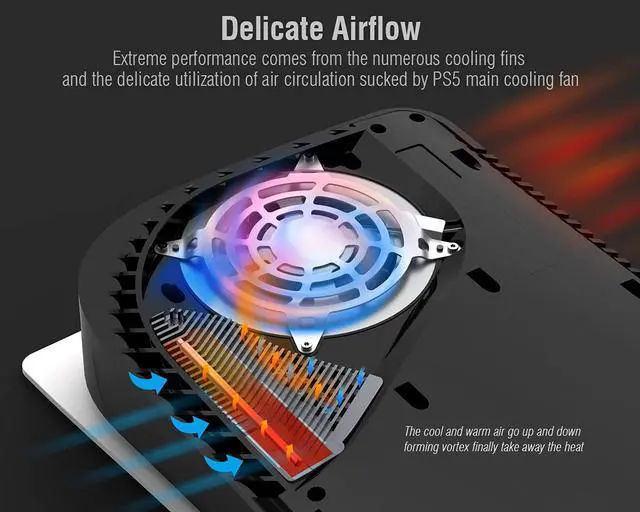

Delicate Utilization of PS5 Cooling Fan for being Silent
A re-designed Mounting Post and Standard M.2 Screw
Pre-divided Silicon Thermal Pads and Tool Kit Included
[Compatibility Note]:
First PS5 Ultra HD CFI-10xxA, 11xxA, 12xxA
First PS5 Digital CFI-10xxB, 11xxB, 12xxB
Not for Slim models: CFI-2xxx
Not for Pro models: CFI-7xxx
Brand: ElecGear
Model: EL-P5C
Material: Aluminum + Copper
Heat Pipe: D5x98mm
Color: Dark Grey
Surface Treatment: Anodic Oxidation
Pipe Treatment: Nickel Plated
Weight: 98gram
Dimension: 128x72x14mm
Packaging

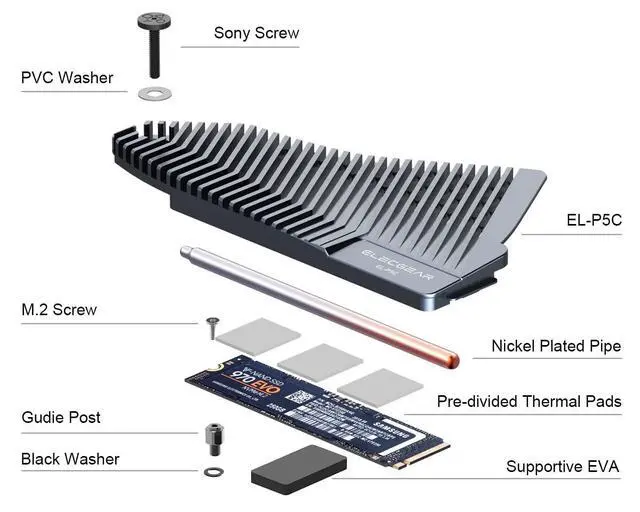

1*ElecGear EL-P5C Heatsink
Re-designed SSD Fixing Screw Kit
1*Thermal Pad (EL-10, 1.0mm, 4.2W/m-k, Single-sided Blue)
10*Small Thermal Pads (EL-15X, 1.5mm, 3.6W/m-k, Pre-divided Grey)
1*PH0 Screwdriver
