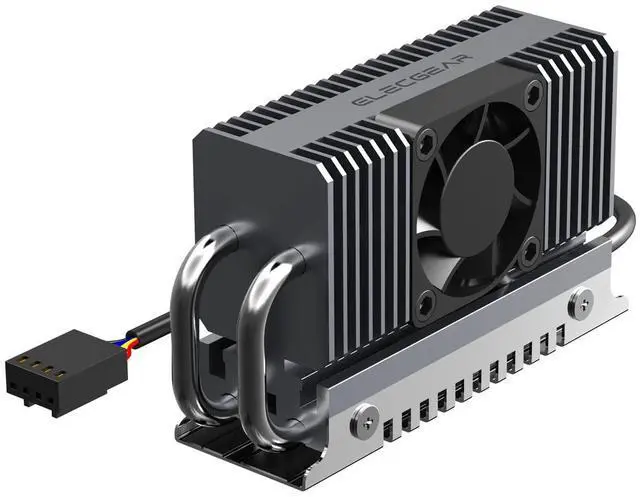

M.2 2280 SSD Cooler, EL-80X PWM Cooling Fan + Heat Pipe + Solid Aluminum Heatsink for 80mm PCIe NVMe and SATA SSD Internal Solid State Drive, Thermal Pads Included

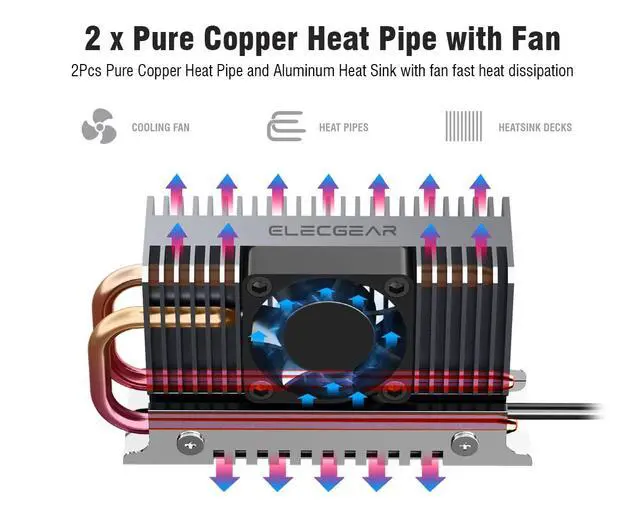

- [Heatsink with Heat Pipe] Patent pending angle and height adjustable heatpipe connects two layers of aluminum heatsink decks. The heat produced by M.2 2280 SSD will be absorbed by the heat pipe and effectively conducted to both the upper and bottom heatsink. 18 to 28 degrees Celsius drop is expected. NVMe and SATA M.2 SSD are supported. Suitable for PCIE 4.0 Gen4 NVMe

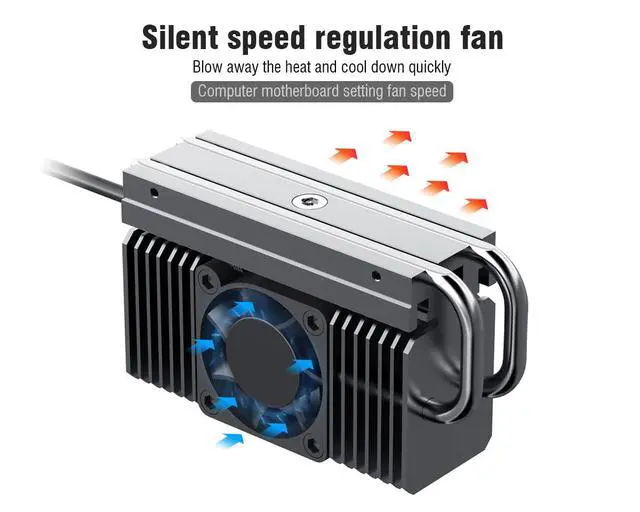

- [PWM Cooling Fan] Equipped with a 30mm cooling fan connected to the fan control socket of the motherboard. Low noise level at max rate 9300RPM rapidly cools down your SSD. Equipped with 4Pin 2510 connector fit most of PC. Please fine set the fan control strategy in the BIOS at a right balance between the temperature decrease and the noise level
- [Quality Thermal Pads] 2 packs of thermal pads deliver high performance at 4.8W/m-k. The pre-divided small pads are for the main control IC and memory chips, while the big single-sided pad is to apply to the middle frame facing against the bottom of the SSD
- [Compatibility Note]

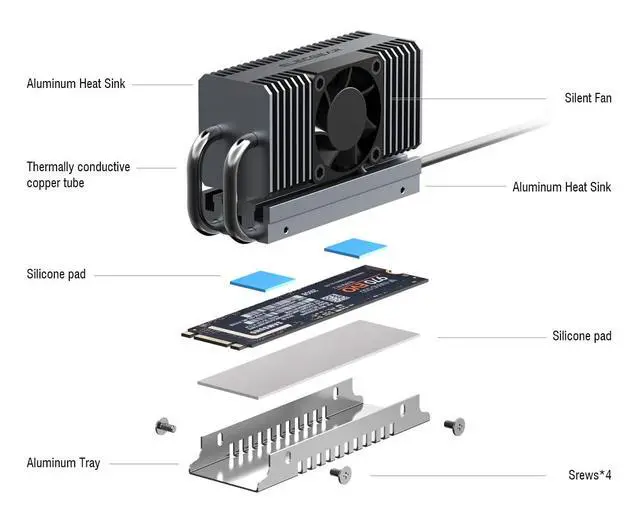

- [Whats in Package] 1x ElecGear EL-80X M.2 SSD Cooler, 1*Small Thermal Pads for IC Chips (Pre-divided Blue), 1*Thermal Pad for SSD back side (Single-sided Grey), Screws and Screwdriver
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features 2x 4mm High-end Heat Pipe
Double Layers of Aluminum Heatsink
PWM controlled Cooling Fan at 9300RPM

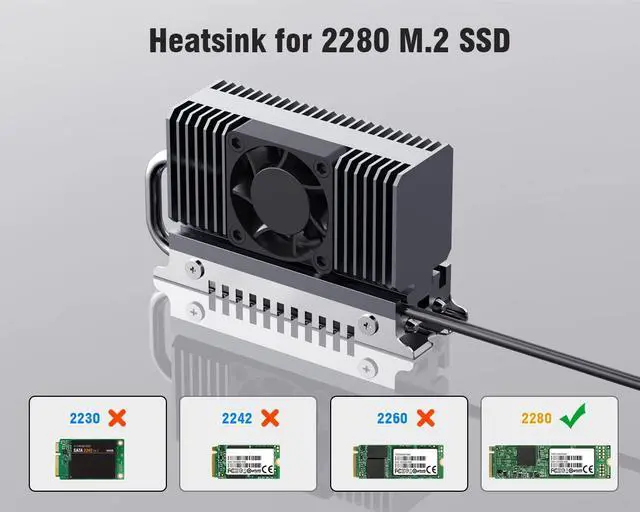

Designed for M.2 SSD 2280 Form Factor
Ready for Newest PCIe 4.0 Gen4 NVMe
Quality Thermal Pads for Memory Chip
Brand: ElecGear
Model: EL-80X
Material: Copper + Aluminum
Color: Grey
Working Voltage: DC12V
Working Current: 60mA (Max 90mA)
Fan Speed: 9300 RPM (Max)
Fan Dimension: 30x30x7 mm
Cable Connector: 4Pin 2510
Air Volume: 3.16 CFM
Dimension: L80.5 x W24.1 x H45 mm
Weight: 120 g
Heat Pipe: 2x4mm
Cable Length: 450 mm
[Packaging]
1x ElecGear EL-80X SSD Cooler
1x Thermal Pads for Memory Chips (Pre-divided Blue)
1x Thermal Pad for SSD Back Side (Single-sided Grey)
1x PH00 Screwdriver
1x Screw Set
