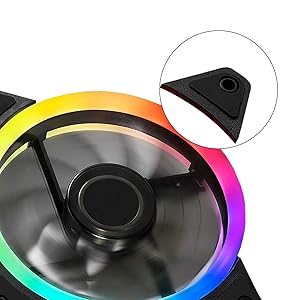

Super Quiet:
Equipped with rubber pads and hydraulic bearing,which greatly reduce operating noise and improves efficiency.
Long Service life:
The hydraulic bearing self-lubricates with a high-quality,friction-reducing substance,which lowers operation noise while improving thermal efficiency.The seal cap prevents lubricant leakage and extends the lifespan of the unit.

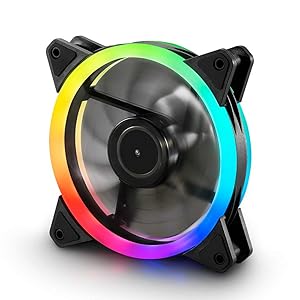

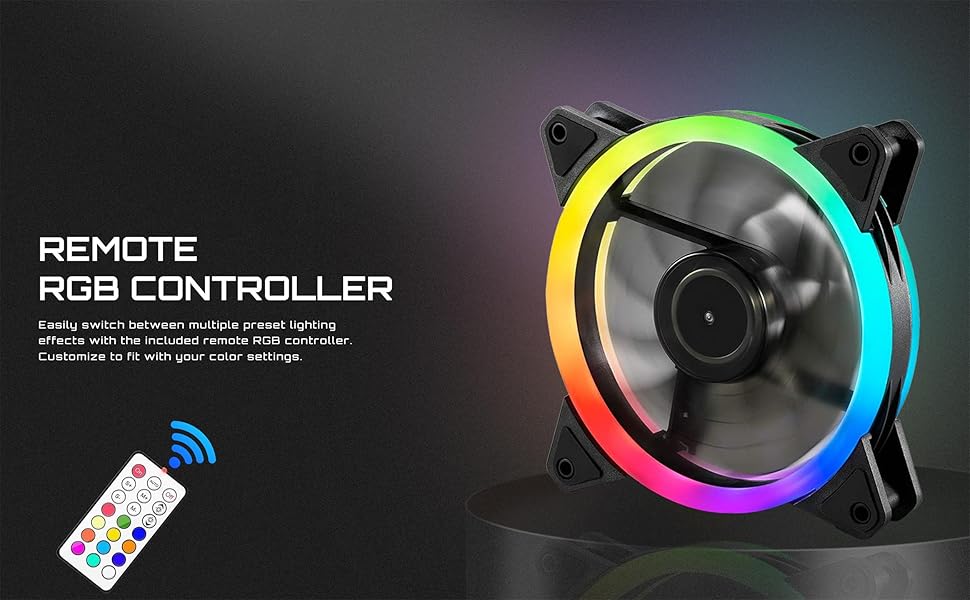

Double RGB LED Ring:
Maintain color and brightness uniformity. The lighting effect is visible from all directions and adds aesthetics to the chassis.

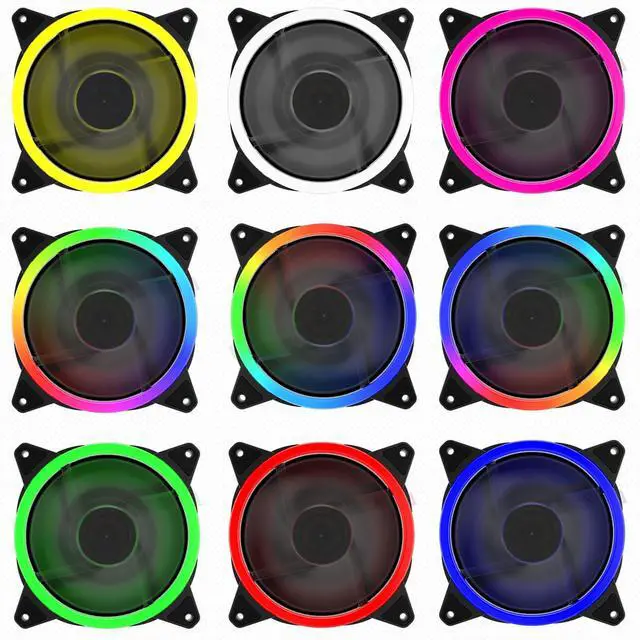

Dual RGB light loops to create vibrant lighting:
Tips:
**Please don't use our rgb controller to connect other brands of RGB fan.
Technical Spec:
Model:RGB123-5 PC RGB Case Fan
Size:120mm(W)*120mm(D)*25mm(H)
Fan Speed:1100rpm±10%
Noise Level:17.6 dB(A)
Input Power: 6.36W
Rated Voltage: DC 12V
Input Current:0.28A
Life Time: 40000Hrs
Fan interface:Hub:Sata / Fan:6-Pin

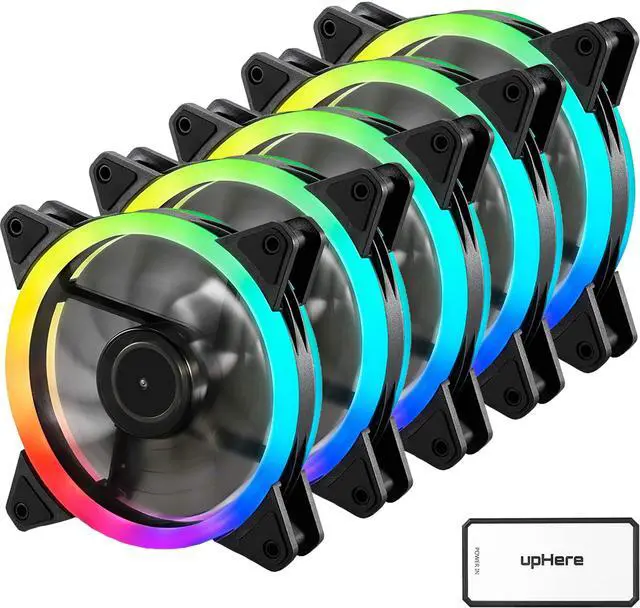

- Packing List:
- 5 x RGB Case Fan
- 1 x RGB Controller
- 1 x Control Hub
CAUTION:

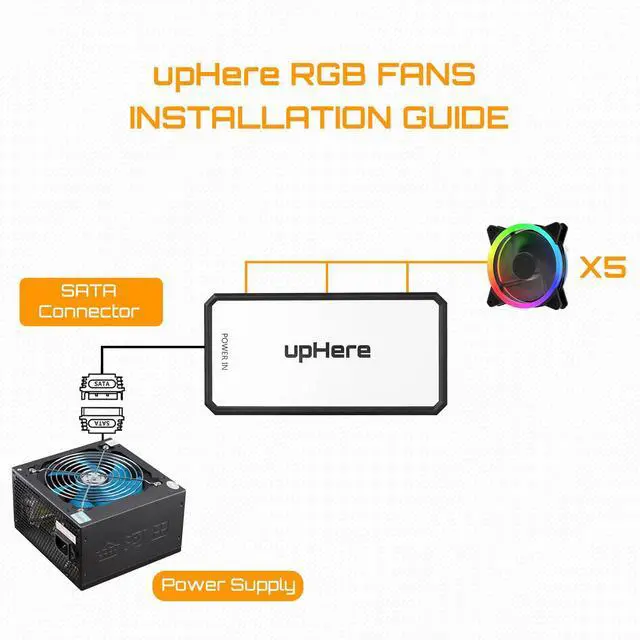

For your safety,please read the following installation tips before installing the product.
1.Please install this product when the computer was powered off.
2.If there are any problems during the installation process, please remove the control hub from the computer.
3.The model RGB123-5 PC Case Fan is a special case fan for the host computer. Please do not connect this product to other non-computer host equipment or use it for other purposes.

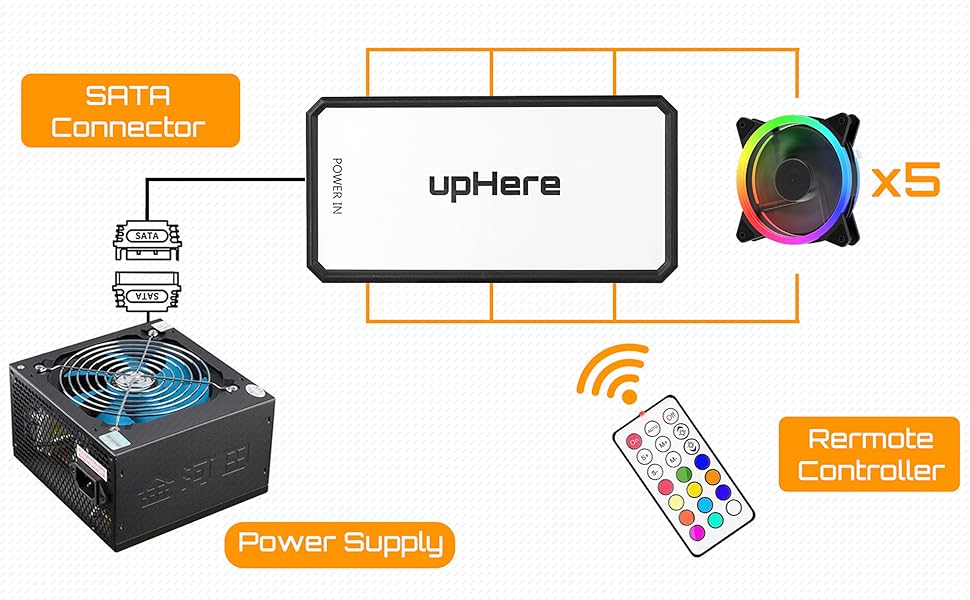

4.Please connect the control hub directly to the computer power supply. We don't recommend that you use other brands of SATA Splitter Adapter Cable connect to the control hub, as it may cause the fan control hub to become unusable.
5.The fan not allow to mixed use of different brands of controller.

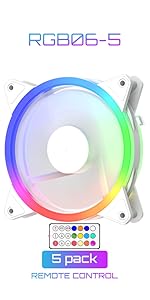

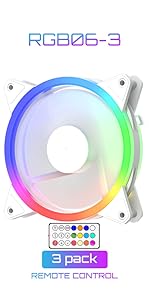

 RGB06-3 |  RGB06-5 |  RGB123-3 |  RGB123-5 |  F03 |  F03CF | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — no data | — no data | — | — | — | — no data |
| Product Size: | 120*120*25mm | 120*120*25mm | 120*120*25mm | 120*120*25mm | 120*120*25mm | 120*120*25mm |
| LED: | STATIC RAINBOW | DYNAMIC RAINBOW | RGB | RGB | STATIC RAINBOW | DYNAMIC RAINBOW |
| Interface: | 3PIN+MOLEX 4PIN | 3PIN+MOLEX 4PIN | FAN:6PIN HUB:SATA | FAN:6PIN HUB:SATA | 3PIN+MOLEX 4PIN | 3PIN+MOLEX 4PIN |
| Speed: | 1100RPM±10% | 1100RPM±10% | 1100RPM±10% | 1100RPM±10% | 1100RPM±10% | 1100RPM±10% |
| Noise: | 26.4 dB(A) | 26.4 dB(A) | 17.6 dB(A) | 17.6 dB(A) | 26.4 dB(A) | 26.4 dB(A) |
| Rated voltage: | DC12V | DC12V | DC12V | DC12V | DC12V | DC12V |
| Color: | White | White | Black | Black | Black | Black |
Super Quiet:
Equipped with rubber pads and hydraulic bearing,which greatly reduce operating noise and improves efficiency.
Long Service life:
The hydraulic bearing self-lubricates with a high-quality,friction-reducing substance,which lowers operation noise while improving thermal efficiency.The seal cap prevents lubricant leakage and extends the lifespan of the unit.
Double RGB LED Ring:
Maintain color and brightness uniformity. The lighting effect is visible from all directions and adds aesthetics to the chassis.
Dual RGB light loops to create vibrant lighting:
Technical Spec:
Tips:
**Please don't use our rgb controller to connect other brands of RGB fan.
Model:RGB123-5 PC RGB Case Fan
Size:120mm(W)*120mm(D)*25mm(H)
Fan Speed:1100rpm±10%
Noise Level:17.6 dB(A)
Input Power: 6.36W
Rated Voltage: DC 12V
Input Current:0.28A
Life Time: 40000Hrs
Fan interface:Hub:Sata / Fan:6-Pin
- Packing List:
- 5 x RGB Case Fan
- 1 x RGB Controller
- 1 x Control Hub
CAUTION:
For your safety,please read the following installation tips before installing the product.
1.Please install this product when the computer was powered off.
2.If there are any problems during the installation process, please remove the control hub from the computer.
3.The model RGB123-5 PC Case Fan is a special case fan for the host computer. Please do not connect this product to other non-computer host equipment or use it for other purposes.
4.Please connect the control hub directly to the computer power supply. We don't recommend that you use other brands of SATA Splitter Adapter Cable connect to the control hub, as it may cause the fan control hub to become unusable.
5.The fan not allow to mixed use of different brands of controller.
RGB06-3 | RGB06-5 | RGB123-3 | RGB123-5 | F03 | F03CF | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — no data | — no data | — | — | — | — no data |
| Product Size: | 120*120*25mm | 120*120*25mm | 120*120*25mm | 120*120*25mm | 120*120*25mm | 120*120*25mm |
| LED: | STATIC RAINBOW | DYNAMIC RAINBOW | RGB | RGB | STATIC RAINBOW | DYNAMIC RAINBOW |
| Interface: | 3PIN+MOLEX 4PIN | 3PIN+MOLEX 4PIN | FAN:6PIN HUB:SATA | FAN:6PIN HUB:SATA | 3PIN+MOLEX 4PIN | 3PIN+MOLEX 4PIN |
| Speed: | 1100RPM±10% | 1100RPM±10% | 1100RPM±10% | 1100RPM±10% | 1100RPM±10% | 1100RPM±10% |
| Noise: | 26.4 dB(A) | 26.4 dB(A) | 17.6 dB(A) | 17.6 dB(A) | 26.4 dB(A) | 26.4 dB(A) |
| Rated voltage: | DC12V | DC12V | DC12V | DC12V | DC12V | DC12V |
| Color: | White | White | Black | Black | Black | Black |
