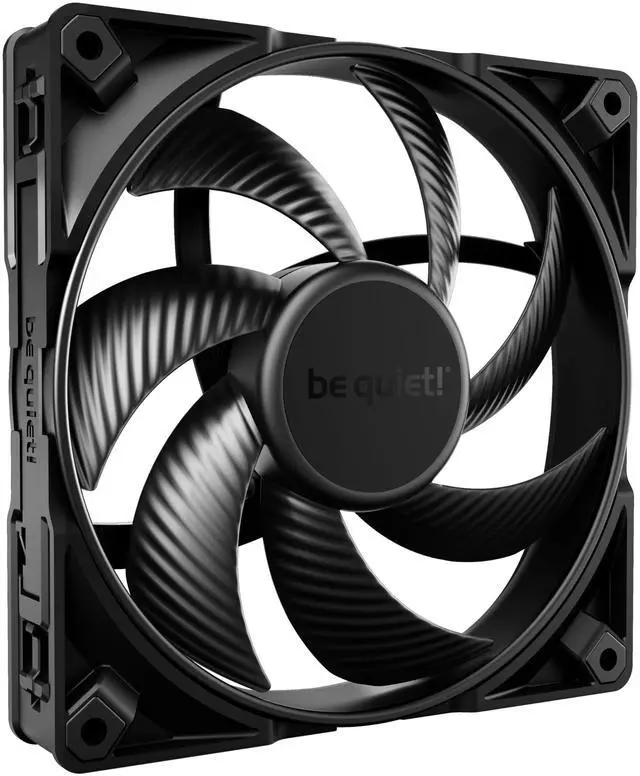

Altered blade arrangement for new generation performance
The fan blades are what makes a fan. It is for this reason that the fan blades of Silent Wings Pro 4 140mm PWM have been developed newly from scratch. The new blade arrangement enables a performance second to none for all possible operations. Be it in a case, on radiators or heat sinks.
Minimum distance for maximum air pressure
Silent Wings Pro 4 140mm PWM makes for extraordinary air pressure and therefore, significantly increases the system’s performance. The decreased distance between the fan blades and the frame enables an extraordinarily high air pressure. By that, the Silent Wings Pro 4 140mm PWM allows the user to run even the most demanding applications.
3 speed options for any possible application
The speed switch makes switching between medium, high-speed and ultra-high-speed of maximum RPM levels quick and easy. The Silent Wings Pro 4 140mm PWM alters its application with a simple slide to the right. Medium-speed is suitable for any operation that requires regular cooling performance. High-speed lets the fan spin faster, providing more cooling power. Ultra-high-speed ultimately offers enough rpm to cool even the most demanding hardware in high-end PC builds.
The key for virtually inaudible operation when needed
6-pole fan motor with 3 phases for very low power consumption, less vibration and therefore quiet max. operation of 36.8dB(A). Equipped with this state-of-the-art technology the fan is virtually inaudible when operated in mid-speed. The advanced fluid-dynamic bearing (FDB) enables a super long fan life of up to 300,000 hours. In addition, it reduces the vibrations significantly and supports the virtually inaudible operation of Silent Wings Pro 4 140mm PWM.
3 DIFFERENT MOUNTING OPTIONS
Silent Wings Pro 4 140mm PWM has 3 mounting options in the scope of delivery. The pre-installed radiator corners are specially designed for radiators on which the incomparable performance of this high-end fan completely shines. On the other hand, for chassis use, the anti-vibration mounting is the first choice as they reduce vibrations to a minimum. The plastic mountings round up the scope.
 be quiet! Silent Wings Pro 4 140mm PWM High Speed 2400 RPM Premium Low Noise ... |  be quiet! Silent Wings 4 Cooling Fan | 140mm PWM | 2400 RPM | White | BL119 |  be quiet! Silent Wings Pro 4 120mm PWM 3000 RPM Premium Low Noise Cooling Fan... |  be quiet! Silent Wings 4 Cooling Fan | 120mm PWM | 3000 RPM | White | BL118 | |
|---|---|---|---|---|
| Customer Reviews | — | — | — | — |
| Price | — | — | — | — |

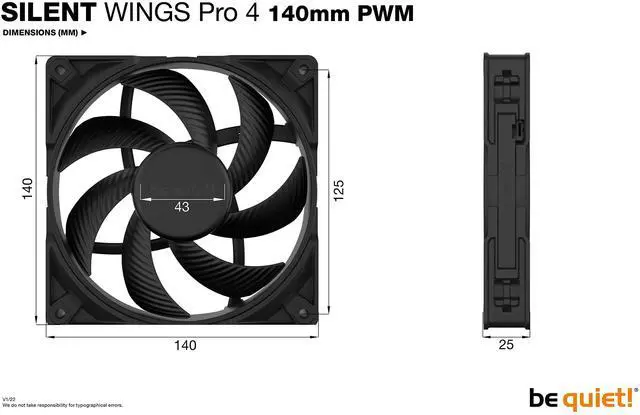

| Dimensions, (W x H x D in mm) | 140 x 140 x 25 | 140 x 140 x 25 | 120 x 120 x 25 | 120 x 120 x 25 |
| Fan speed (rpm) @ 100% PWM | 2400 | 2400 | 3000 | 3000 |
| Noise level (dB(A)) @ 100% PWM | 36.8 | 36.8 | 36.9 | 36.9 |
| Airflow @ 100% PWM (cfm / m³/h) | 97.41 / 165.5 | 97.41 / 165.5 | 83.9 / 142.5 | 83.9 / 142.5 |
| Air pressure (mm / H²O) | 3.64 | 3.64 | 5.31 | 5.31 |
| Voltage range DC (V) | 7 - 13.2 | 7 - 13.2 | 7 - 13.2 | 7 - 13.2 |
| Input power (W) | 3.6 | 3.6 | 3.6 | 3.6 |
| Input current (A) | 0.3 | 0.3 | 0.3 | 0.3 |
| Connector | 4-pin PWM | 4-pin PWM | 4-pin PWM | 4-pin PWM |
| Lifetime @ 25°C (h) | up to 300,000 | up to 300,000 | up to 300,000 | up to 300,000 |
Altered blade arrangement for new generation performance
The fan blades are what makes a fan. It is for this reason that the fan blades of Silent Wings Pro 4 140mm PWM have been developed newly from scratch. The new blade arrangement enables a performance second to none for all possible operations. Be it in a case, on radiators or heat sinks.
Minimum distance for maximum air pressure
Silent Wings Pro 4 140mm PWM makes for extraordinary air pressure and therefore, significantly increases the system’s performance. The decreased distance between the fan blades and the frame enables an extraordinarily high air pressure. By that, the Silent Wings Pro 4 140mm PWM allows the user to run even the most demanding applications.
3 speed options for any possible application
The speed switch makes switching between medium, high-speed and ultra-high-speed of maximum RPM levels quick and easy. The Silent Wings Pro 4 140mm PWM alters its application with a simple slide to the right. Medium-speed is suitable for any operation that requires regular cooling performance. High-speed lets the fan spin faster, providing more cooling power. Ultra-high-speed ultimately offers enough rpm to cool even the most demanding hardware in high-end PC builds.
The key for virtually inaudible operation when needed
6-pole fan motor with 3 phases for very low power consumption, less vibration and therefore quiet max. operation of 36.8dB(A). Equipped with this state-of-the-art technology the fan is virtually inaudible when operated in mid-speed. The advanced fluid-dynamic bearing (FDB) enables a super long fan life of up to 300,000 hours. In addition, it reduces the vibrations significantly and supports the virtually inaudible operation of Silent Wings Pro 4 140mm PWM.
3 DIFFERENT MOUNTING OPTIONS
Silent Wings Pro 4 140mm PWM has 3 mounting options in the scope of delivery. The pre-installed radiator corners are specially designed for radiators on which the incomparable performance of this high-end fan completely shines. On the other hand, for chassis use, the anti-vibration mounting is the first choice as they reduce vibrations to a minimum. The plastic mountings round up the scope.
be quiet! Silent Wings Pro 4 140mm PWM High Speed 2400 RPM Premium Low Noise ... | be quiet! Silent Wings 4 Cooling Fan | 140mm PWM | 2400 RPM | White | BL119 | be quiet! Silent Wings Pro 4 120mm PWM 3000 RPM Premium Low Noise Cooling Fan... | be quiet! Silent Wings 4 Cooling Fan | 120mm PWM | 3000 RPM | White | BL118 | |
|---|---|---|---|---|
| Customer Reviews | — | — | — | — |
| Price | — | — | — | — |
| Dimensions, (W x H x D in mm) | 140 x 140 x 25 | 140 x 140 x 25 | 120 x 120 x 25 | 120 x 120 x 25 |
| Fan speed (rpm) @ 100% PWM | 2400 | 2400 | 3000 | 3000 |
| Noise level (dB(A)) @ 100% PWM | 36.8 | 36.8 | 36.9 | 36.9 |
| Airflow @ 100% PWM (cfm / m³/h) | 97.41 / 165.5 | 97.41 / 165.5 | 83.9 / 142.5 | 83.9 / 142.5 |
| Air pressure (mm / H²O) | 3.64 | 3.64 | 5.31 | 5.31 |
| Voltage range DC (V) | 7 - 13.2 | 7 - 13.2 | 7 - 13.2 | 7 - 13.2 |
| Input power (W) | 3.6 | 3.6 | 3.6 | 3.6 |
| Input current (A) | 0.3 | 0.3 | 0.3 | 0.3 |
| Connector | 4-pin PWM | 4-pin PWM | 4-pin PWM | 4-pin PWM |
| Lifetime @ 25°C (h) | up to 300,000 | up to 300,000 | up to 300,000 | up to 300,000 |
