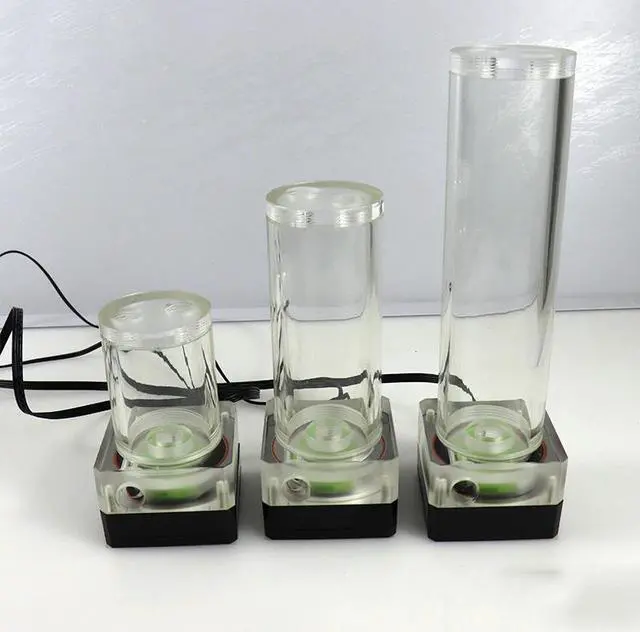

NOTE: 210ml 170mm /125ml 110mm 210ml 170mm/50ml 60mm Without thread
175ml 200mm With thread
Feature:

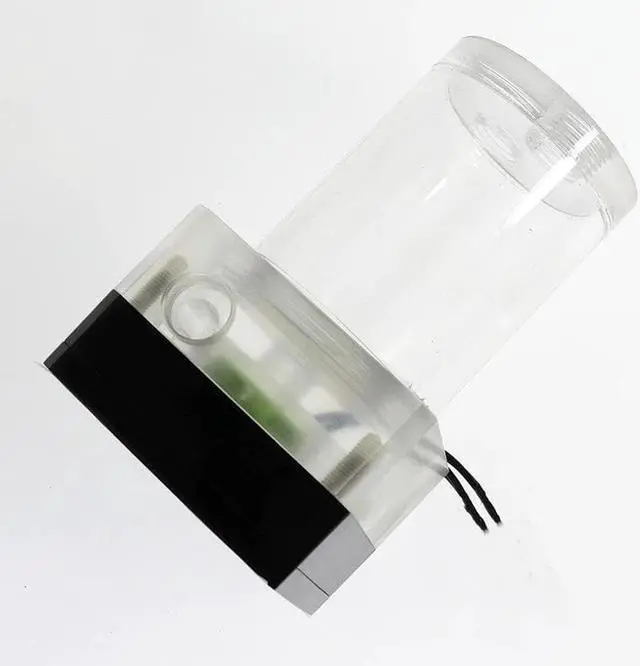

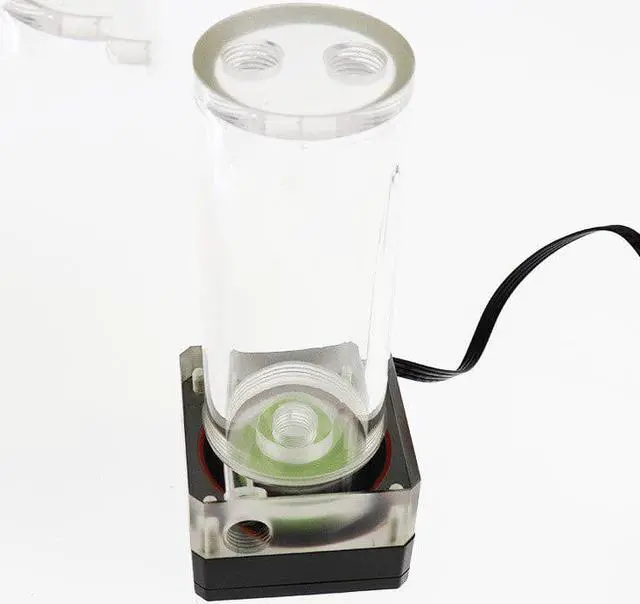

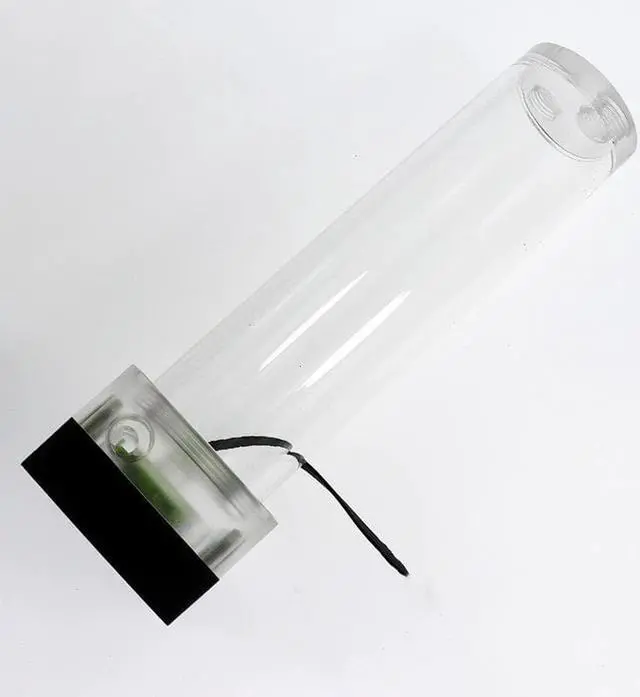

Product model: water pump
Input voltage: DC 12V
Working current: 0.6A
Maximum flow: 350L/hour
Maximum lift: 3.5 meters
Maximum speed: PWM speed regulation, up to 2600RPM
Power interface: big 4P interface + 2P interface
Speed measurement interface: different power interfaces
Water inlet and outlet: G1/4 thread
Filling hole position: G1/4 thread
Dimensions: 62*62*42mm (length*width*height)
Water tank capacity: 360ml/530ml (depending on the water tank)
Working noise: 30db-39db
Bearing material: ceramic
Working temperature: -10~60
Liquid type: thermal fluid
Design life: 50000 hours
Circuit design: three-phase brushless DC circuit, using MCU control
Package Including:
1*water tank
1*pump
1*bracket plug
1*shockproof pad
