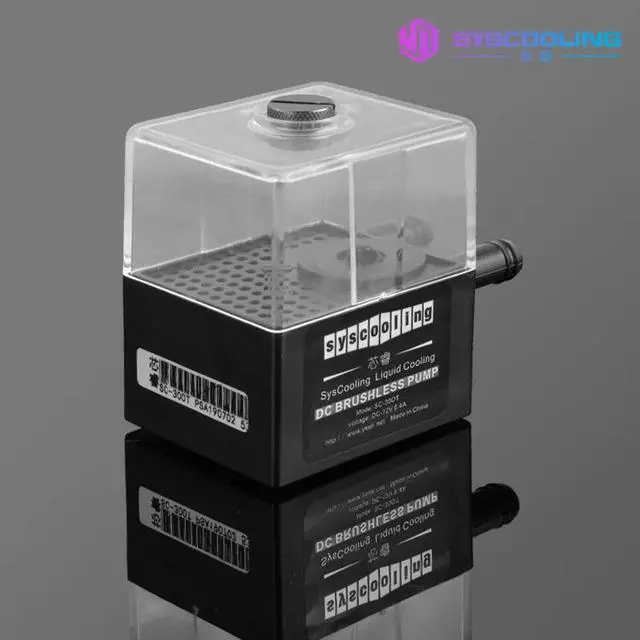

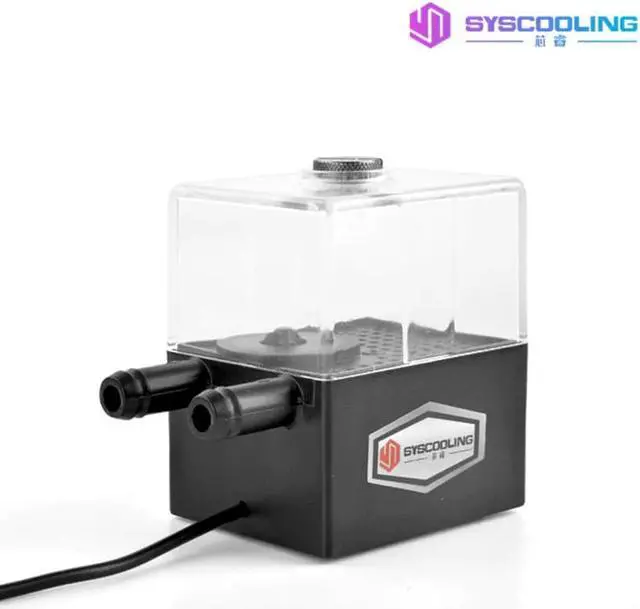

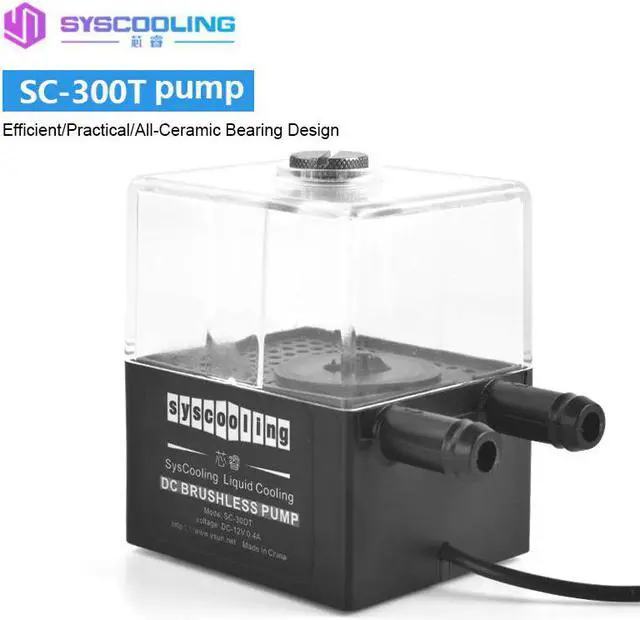

Product Model:SC-300T
Maximum lift:1.9m
Maximum flow:300L/H
Voltage:DC12V
Working current:0.3A
Product Size:65*56*82mm
Speed interface:Small 3P
Operating temperature: -10~60
Working noise:23DB
Design life:50,000 hours
Water tank capacity:150ml
Bearing material:Ceramics

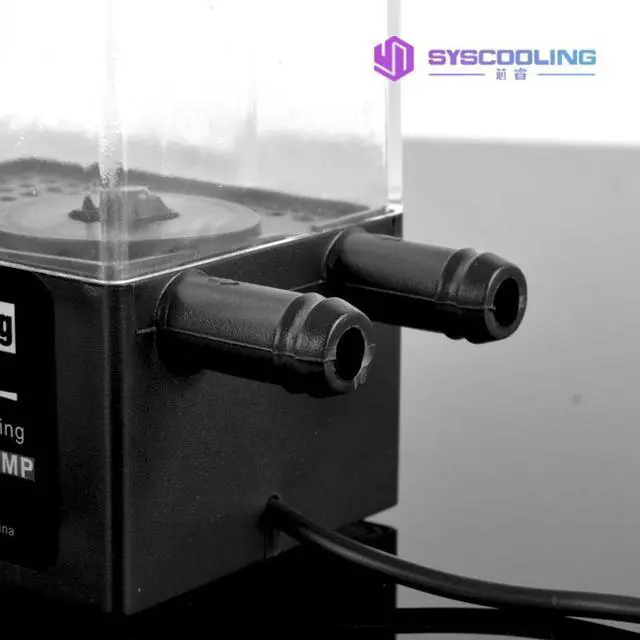

Spout diameter:8mm with Dongyuan standard N8 transparent catheter
Power interface:Small 3P connector(The red line is DC12V positive, black line negative, yellow line speed)
Dosing hole:G1/4 thread
Circuit design:Three-phase brushless DC circuit with MCU control
Power:4W
Maximum speed:2200RPM
Remarks:The red line is the DC12V power line, the black line is the ground line, and the yellow line is the speed line.
