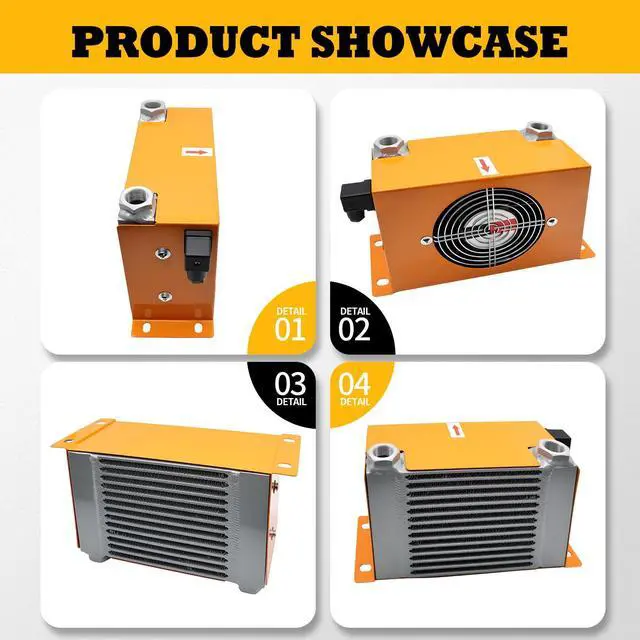

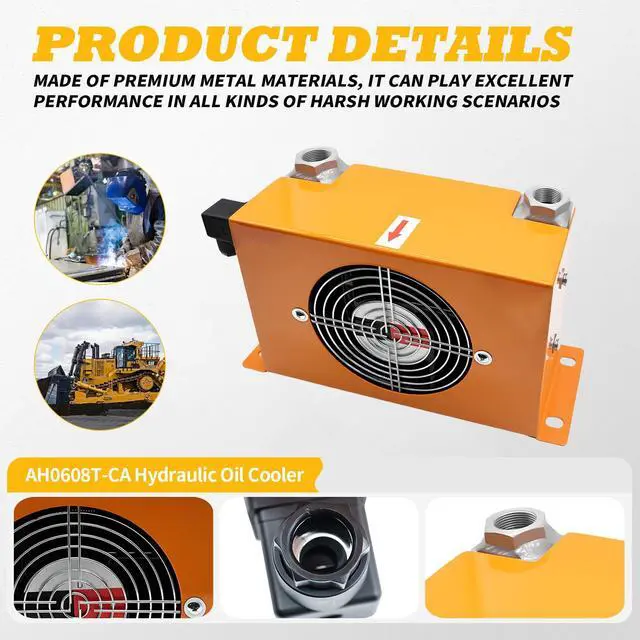

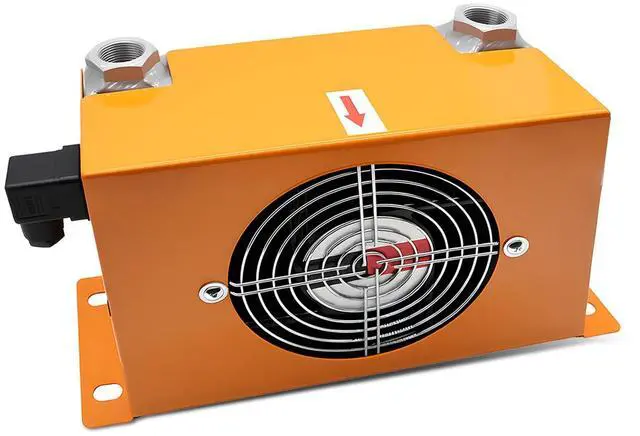

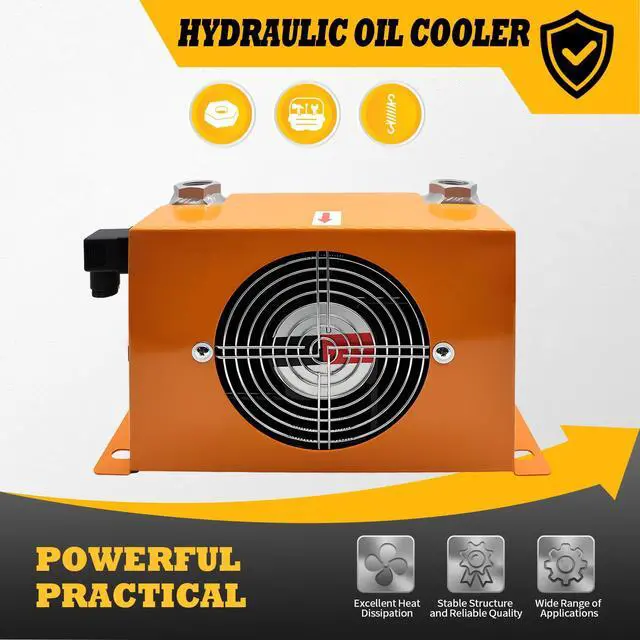

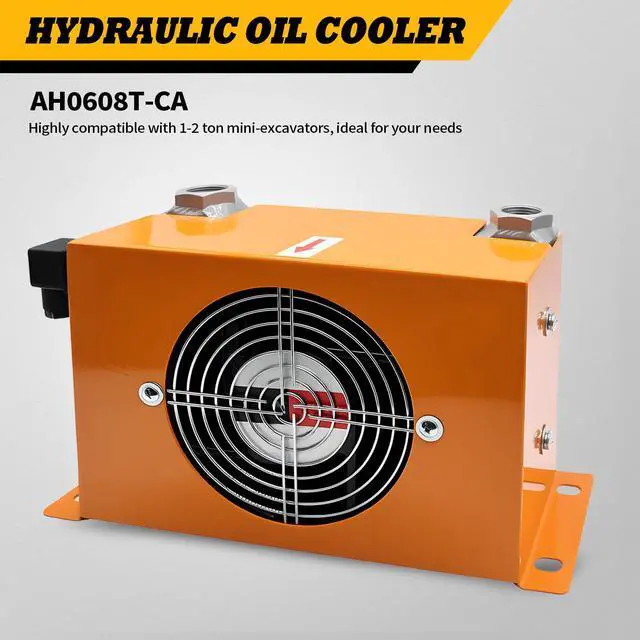

AH0608T-CA Hydraulic Oil Cooler Compatible with Mini Excavator | 1-2Ton, DC 12V, 38W Rated Power, 60L/min Flow Rate, 1.3 Heat Dissipation Area, Efficient Heat Dissipation
Limited time offer, ends 08/27 By FiveMacro Store
- Product Specifications: Fan voltage DC 12V, fan power 38W, cooling capacity 2300kcal/h, flow rate 60L/min, working pressure 2.0MPa. Design Characteristics: The oil passage features fins, which enlarge the heat dissipation area. The external fin heat dissipation area is 1.3m², with a blowing rate of 200m³/h. High Heat Dissipation Performance: Provides a cooling capacity of 2300kcal/h, enabling swift heat dissipation. Key Attributes: Constructed from premium materials for quiet operation. Important Note: When the cooler is integrated into a quantitative pump system circuit, a bypass unloading circuit must be installed to prevent excessive pulse pressure during system startup, which could damage the radiator
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

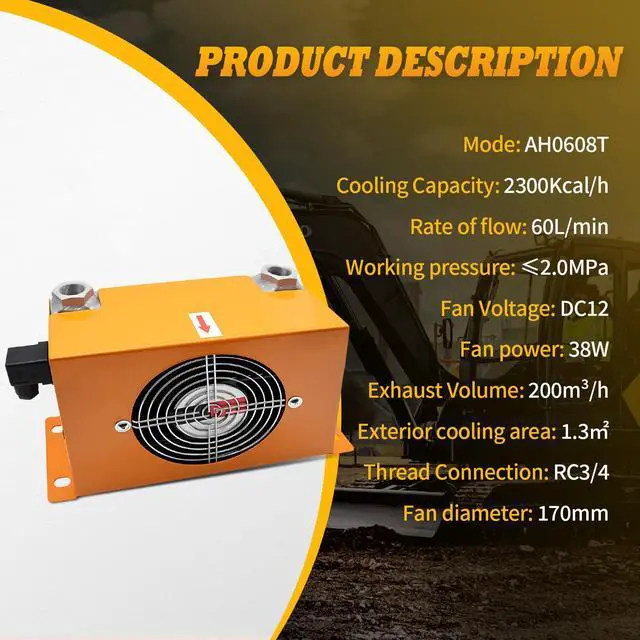

Product Specifications: Fan voltage DC 12V, fan power 38W, cooling capacity 2300kcal/h, flow rate 60L/min, working pressure 2.0MPa. Design Characteristics: The oil passage features fins, which enlarge the heat dissipation area. The external fin heat dissipation area is 1.3m², with a blowing rate of 200m³/h. High Heat Dissipation Performance: Provides a cooling capacity of 2300kcal/h, enabling swift heat dissipation. Key Attributes: Constructed from premium materials for quiet operation. Important Note: When the cooler is integrated into a quantitative pump system circuit, a bypass unloading circuit must be installed to prevent excessive pulse pressure during system startup, which could damage the radiator
