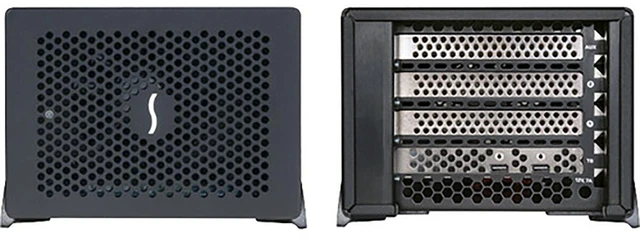

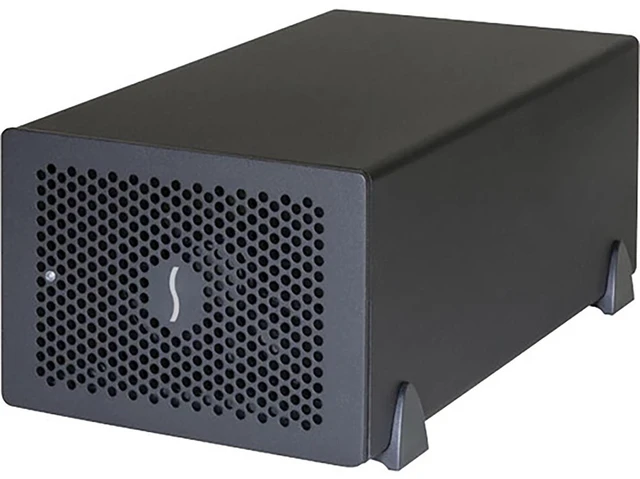

Sonnet Echo SE III Thunderbolt 5 3-Slot PCIe Card Expansion System

The Echo SE III Thunderbolt 5 Three-Slot PCIe Card Expansion System is a premium hardware chassis designed to connect full-sized desktop PCIe cards to laptops or compact computers via next-generation Thunderbolt technology. Based on Sonnet's Thunderbolt 5 lineup architecture, here is an overview of its core features and technical specifications: Thunderbolt 5 IntegrationLeverages the latest standard to provide significantly upgraded data speeds (up to 80Gbps native, and up to 120Gbps via Bandwidth Boost). Massive PCIe BandwidthOffers up to 6, 800 MB/s of bi-directional PCIe bandwidth, effectively doubling the throughput limits found on older Thunderbolt 3 or 4 chassis options. Three-Slot CapacityEngineered to support up to three PCIe cards simultaneously, making it ideal for multi-card audio interfaces, pro video capture (e. g., Blackmagic DeckLink), high-speed networking, or heavy-duty RAID controllers. Dual Thunderbolt 5 PortsIncludes one primary port to link directly to your host computer, and a secondary port that allows for daisy-chaining up to five additional Thunderbolt/USB peripherals or hooking up ultra-high-resolution external monitors. Acoustic & Power EfficiencyFeatures a rugged aluminum shell integrated with an automatic temperature-controlled variable-speed fan for whisper-quiet cooling, alongside smart power management that automatically sleeps and wakes with your computer. Form FactorDesktop hardware expansion enclosure. Interface StandardsThunderbolt 5 (backward compatible with Thunderbolt 4, Thunderbolt 3, and USB4 depending on OS architecture). Expansion Slots3 x PCIe slots (typically utilizing physical x8 mechanical sizing operating at PCIe 4.0 standard limits enforced by the controller).

Card CompatibilityBuilt to house half-length plus full-height, single-width specialized cards (with flexibility for multi-space daughter cards depending on internal configuration). Supplemental PowerIncludes internal auxiliary power connectivity to satisfy power-hungry processing and acceleration cards. Cross-Platform CompatibilityBroadly compatible across modern operating systems, including macOS (M-Series / Intel), Windows 11, and Linux systems equipped with supporting Thunderbolt or USB4 root ports.
