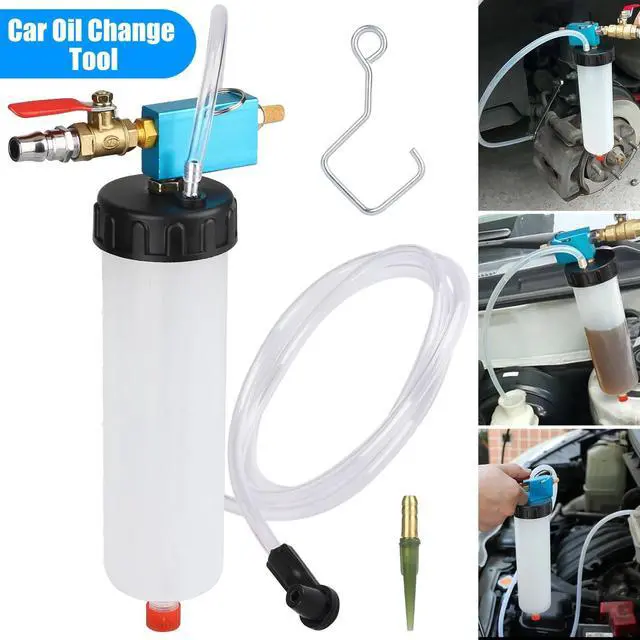

Car Vehicle Vacuum Brake Bleeder Tank Fluid Oil Change Pump Equipment Tool Kit

Product Features

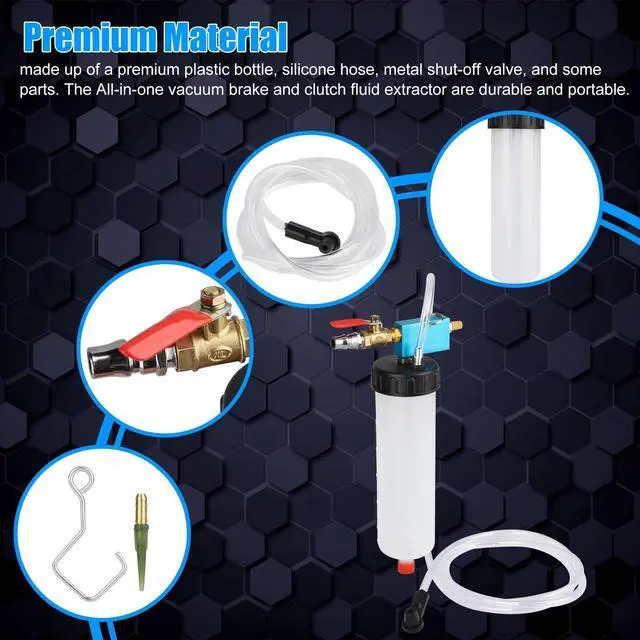

1. Premium Material: Made up of a premium plastic bottle, silicone hose, metal shut-off valve, and some parts. The All-in-one vacuum brake and clutch fluid extractor are durable and portable.

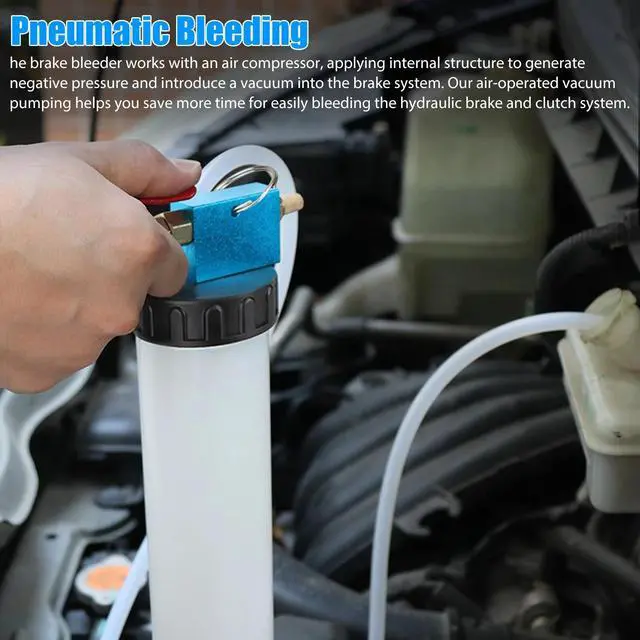

2. Pneumatic Bleeding: The brake bleeder works with an air compressor, applying internal structure to generate negative pressure and introduce a vacuum into the brake system. Our air-operated vacuum pumping helps you save more time for easily bleeding the hydraulic brake and clutch system.
3. Easy Operation: Our brake fluid replacement tool is easy to operate and connect. You do not need to press the pedal back and forth or need others' help, and you will not stain the floor too.

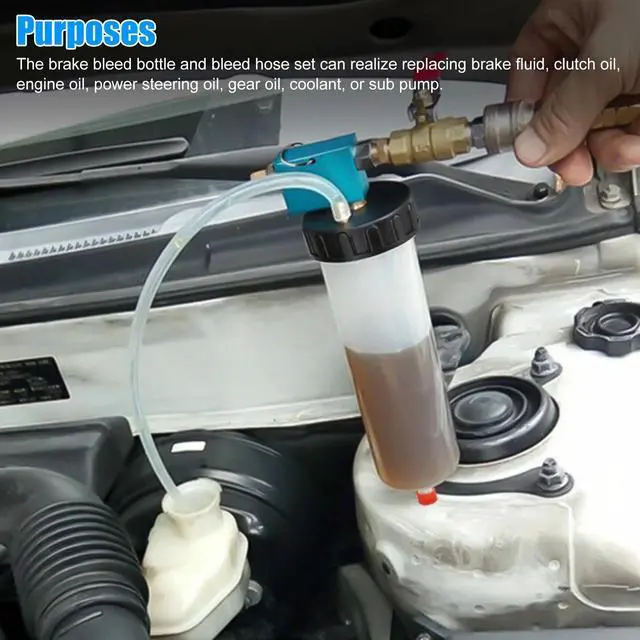

4. Purposes: This pneumatic bleeder tool is widely suitable for most vehicles, such as sedans, motorcycles, trucks, SUVs, etc. The brake bleed bottle and bleed hose set can realize replacing brake fluid, clutch oil, engine oil, power steering oil, gear oil, coolant, or sub pump.

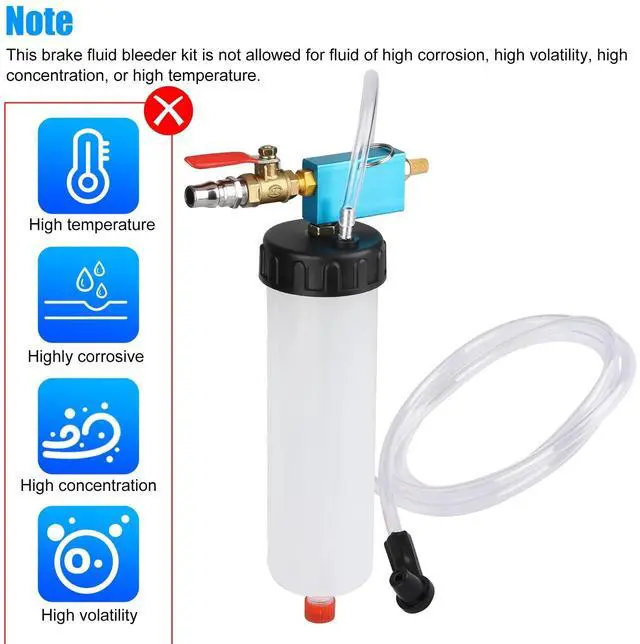

5. Note: This brake fluid bleeder kit is not allowed for fluid of high corrosion, high volatility, high concentration, or high temperature.

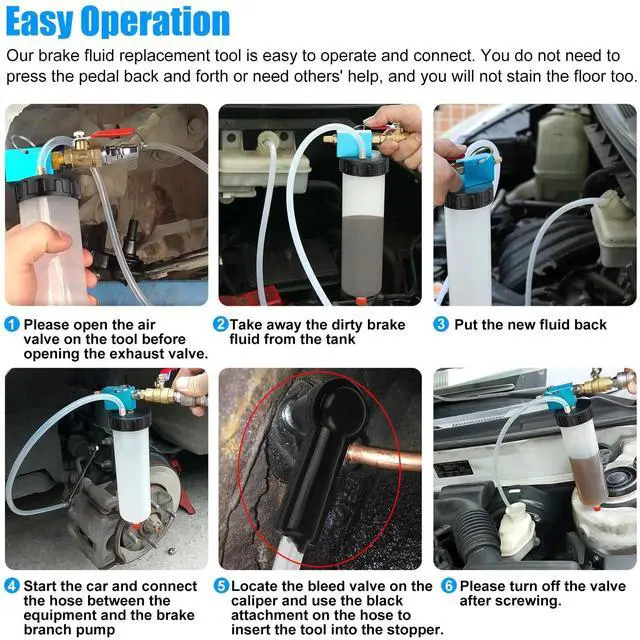

How to Use

1. There's a little screw-on diaphragm part you need to put where the tool outputs air, so screw that on and make sure the red cap is inserted on the bottom of the bottle and make sure the bottle itself is tightened well.
2. Connect the hose to the bottle. First, suck out all the old fluid from the reservoir but don't go too crazy leave some fluid in there so the system doesn't go too dry so you don't introduce air.
3. Fill up the reservoir up to the top with fresh dot 3 or 4 fluid whichever your vehicle needs and close the cap. Locate the bleeder valve on the caliper, remove the protective rubber, and plug the tool into the plug' using the black attachment on the hose. Make sure the attachment is in all the way on the hose and is also snug onto the bleeder valve.
4. Turn on the air valve on the tool before opening the bleeder valve and keep the tool and hose above the valve to allow any air in the lines to travel upward.

Note

1. Instructions for Use:
2. If your pump is on the front, start from the rear right wheel, the rear left, then the front right, and the front left. Some vehicles have pumps in the back so you can start from a front wheel.
3. Please turn on the air valve on the tool before opening the bleeder valve and keep the tool and hose above the valve to allow any air in the lines to travel upward.
4. While it bleeds always check the reservoir and re-fill it with new fluid, don't let it go dry.
5. When bleeding is done, please close the bleeder valve first then shut off the air valve on the tool.
6. The bleeding process will be slow. You will see dark fluid coming into the bottle. You'll want to keep it going until you fill up about half the bottle from each wheel for a nice flush and eventually you will see clear new fluid building up on top of the old dirty fluid on the bottom.

Product Specification

Package Included

1. 1 x Brake Fluid Replacement Tool
