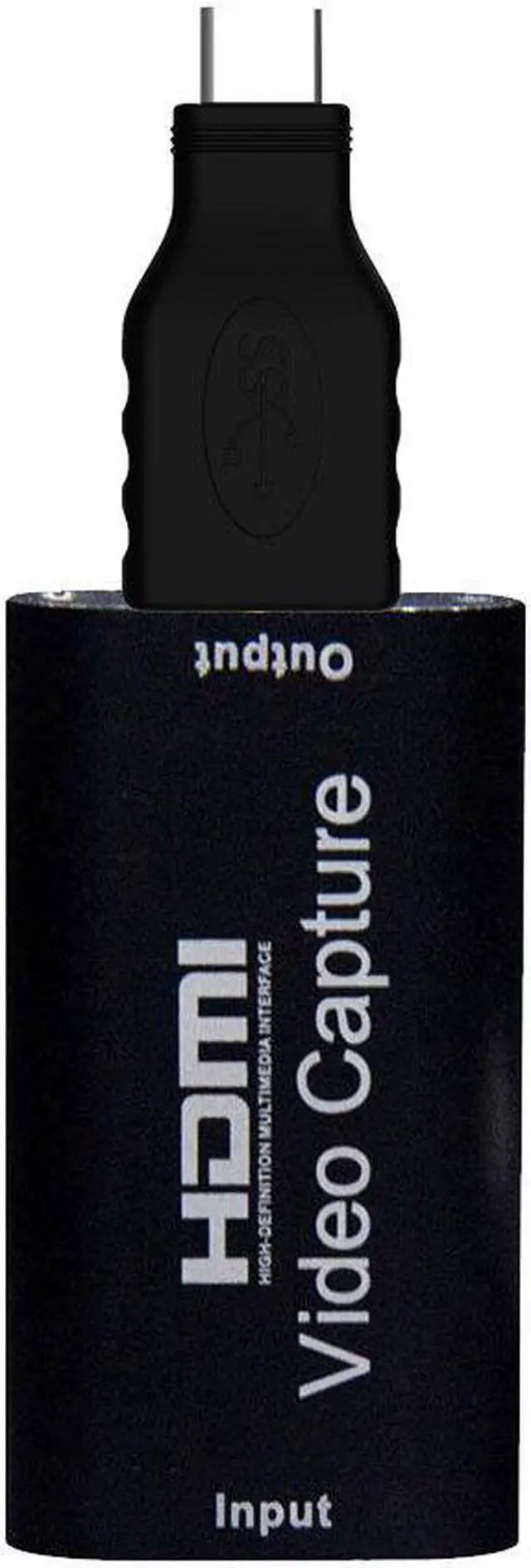

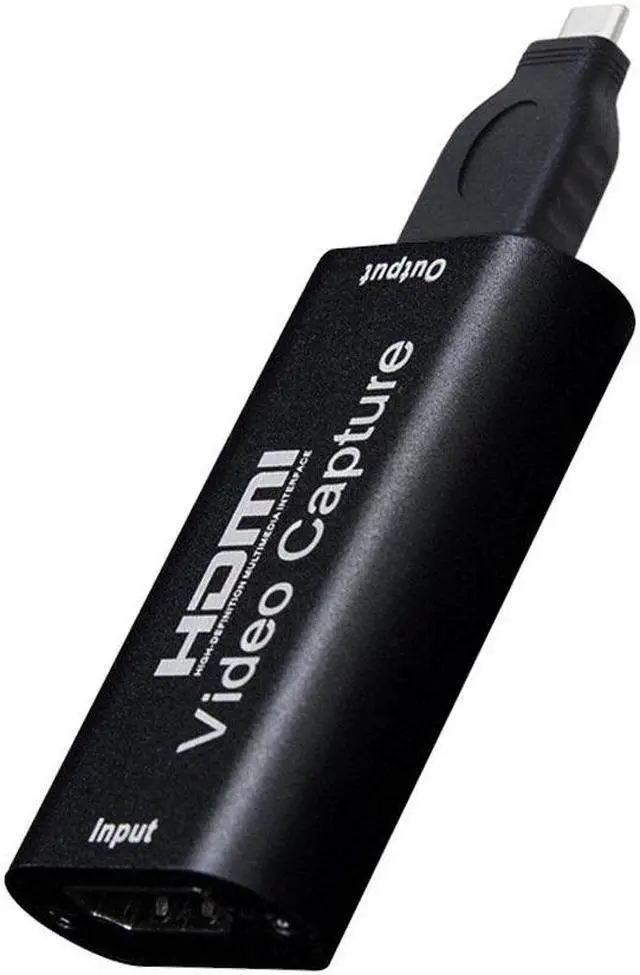

Mini HD Video Capture 180P Video Grabber Record Box for PS4 Game DVD Camcorder HD Camera Recording

Product Introduction:

This USB 2.0 capture card can capture video and audio at the same time, and can transmit audio and video signals to a computer or smartphone for preview and storage. Suitable for high-definition acquisition, teaching recording, medical imaging, etc.

Features:

Support maximum input resolution up to 4K;

Support maximum output resolution up to 1080P;

Support 8/10/12 bit color depth;

When using standard AWG26 cable, the input transmission distance is up to 15 meters (1080P and below resolution);

Support most acquisition software, such as VLC, OBS, Amcap, etc .;

Support Windows, Android and Mac;

Comply with USB video UVC specifications;

Conforms to USB audio UAC specifications;

No external power supply is required, compact and easy to carry.

Specifications:

HD Resolution: Max input can support 3840×2160@30Hz / 4K

Video Output Resolution: Max output can be 1920×1080@30Hz

Video Input Format: 8 / 10 / 12-bit Deep Color

Video Output Mode: YUV / JPEG

Support Audio Format: L-PCM

Support AWG26 Standard Cable: input 15 meters, AWG26 standard cable.

Maximum Working Current: 0.4A / 5VDC

Operating temperature range: (-10 to + 55 )

Dimension (L x W x H): 64x28x13 (mm)

Weight: 21.4g

Packaging Includes:

1 * Audio Video Capture Card

1 * User Manual
