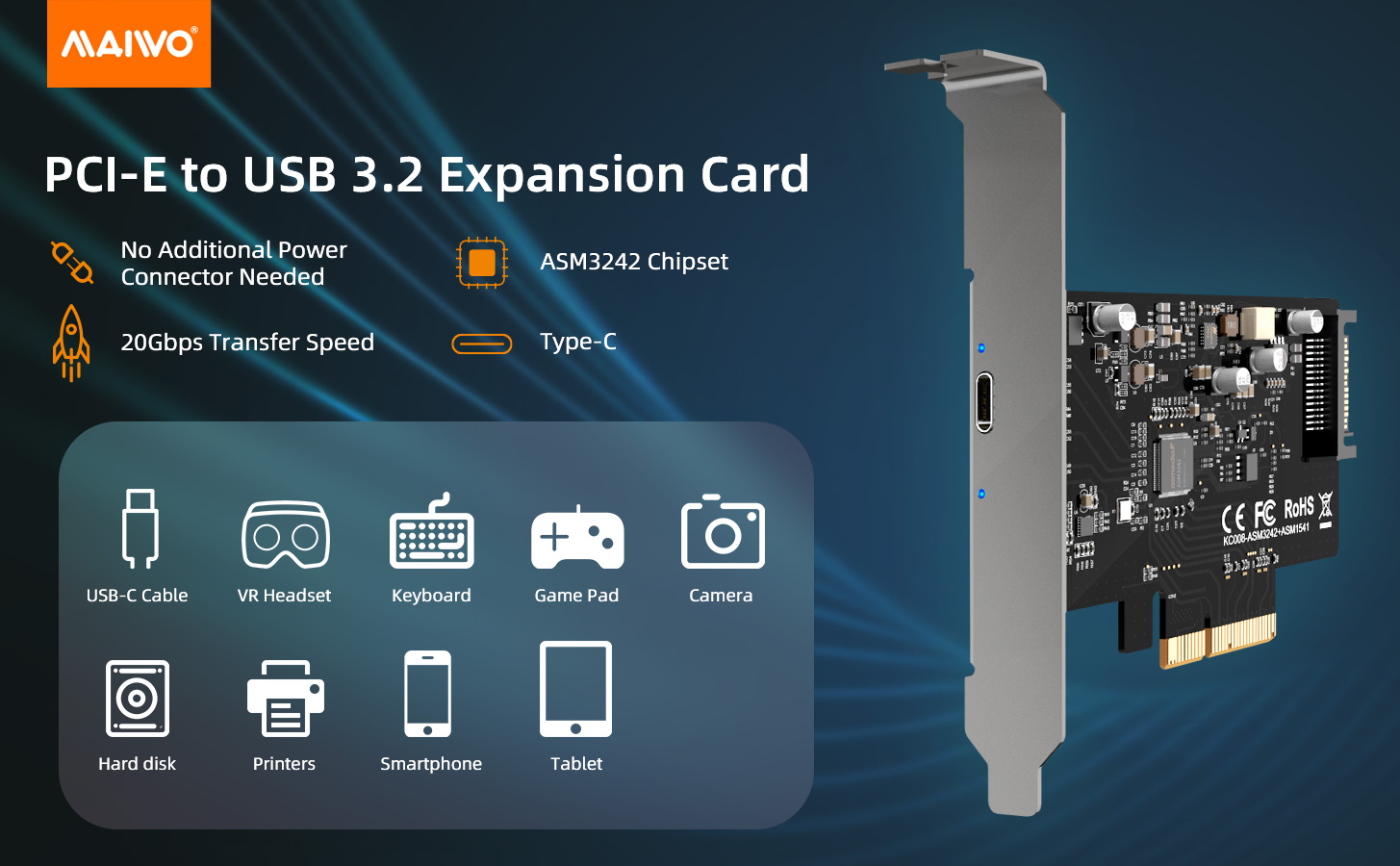

MAIWO KC008 PCI-E Card is equipped with 20Gbps bandwidth, which ensures fast data transmission, real speed of USB 3.2 for the individual port.

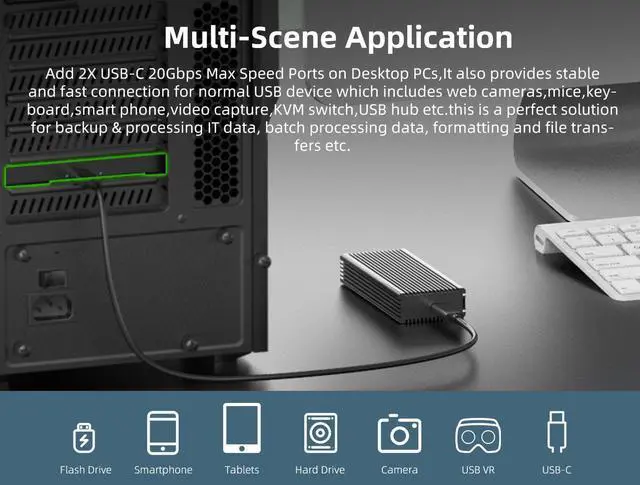

This expansion card is a necessity for external drives and is ideal for file backups, video editing, and data recovery, and compatible with USB 3. 0 and USB 2.0 devices (Note: The actual transmission speed may be limited by the connected device, Thunderbolt 3 device connected to this expansion card is only compatible with 10G rate)

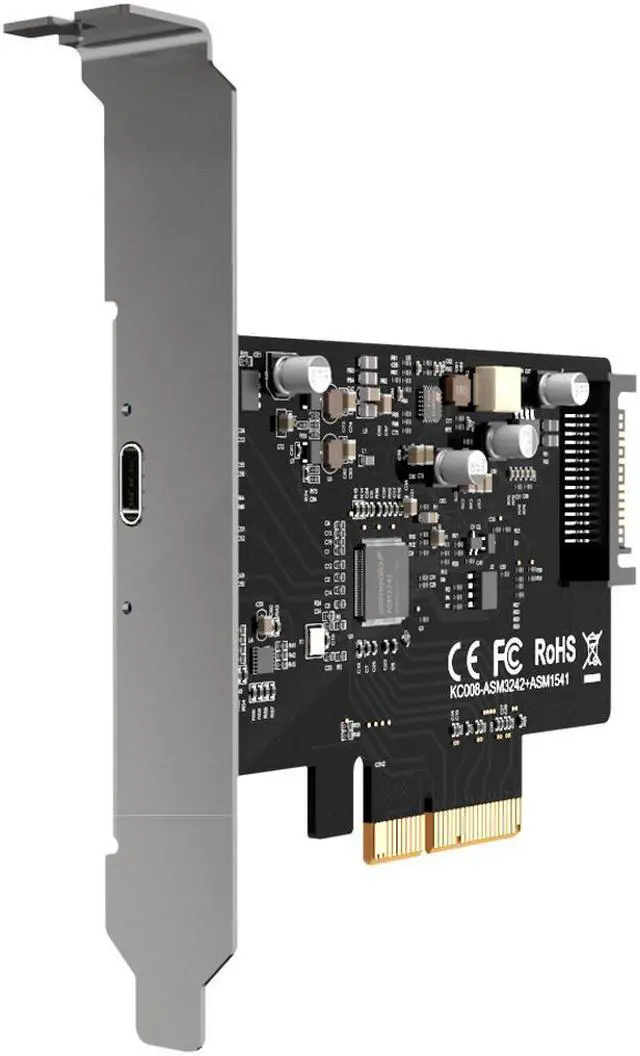

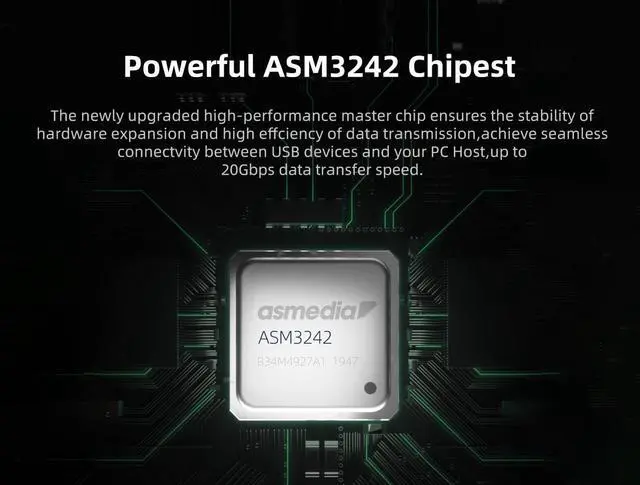

Built with ASMedia ASM3242. Fully RoHS compliant. Note: The card does not support DP Alt Mode or USB Power Delivery.

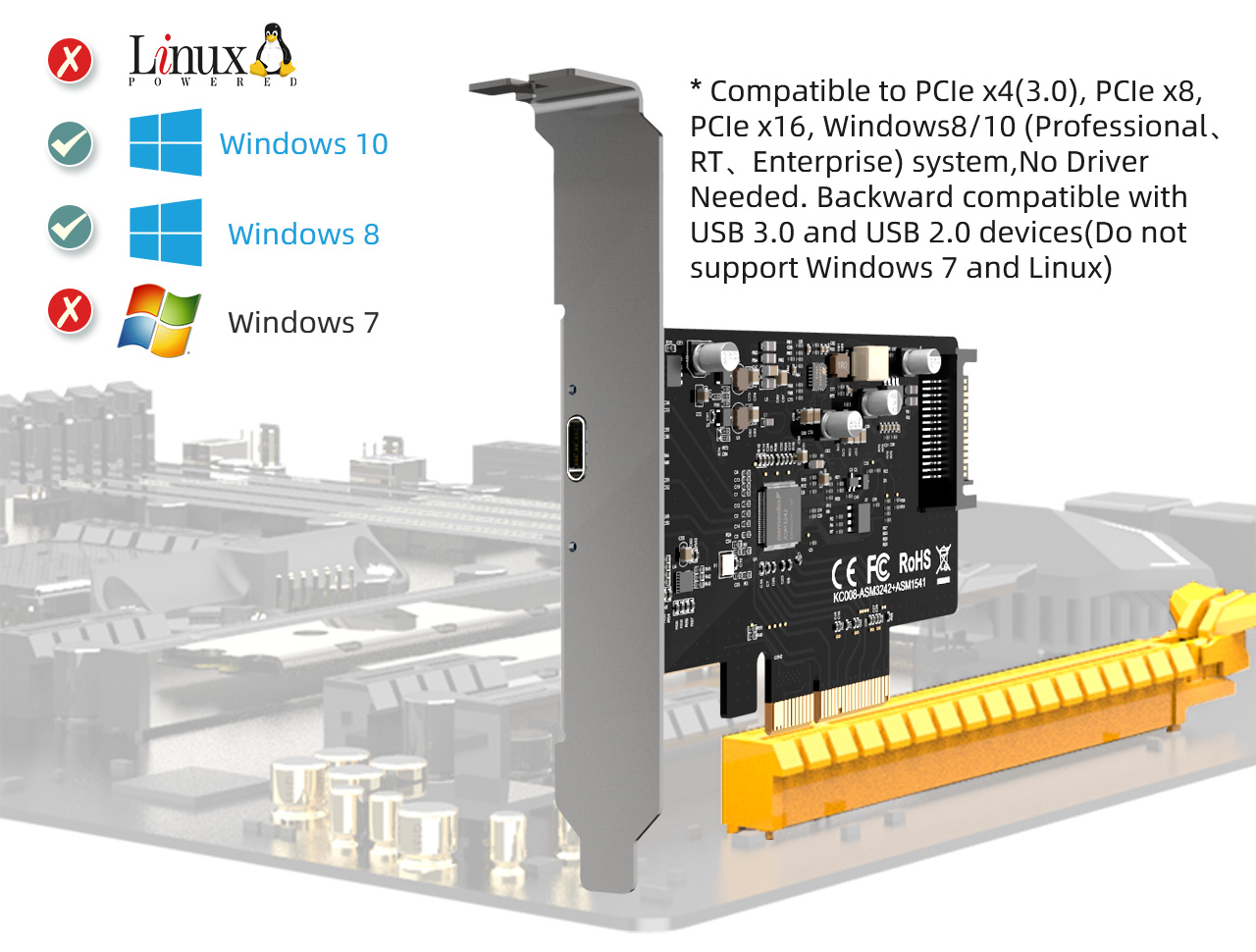

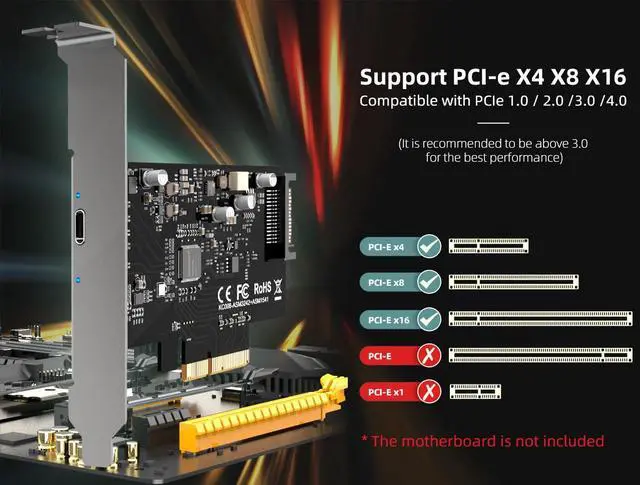

This PCIe Expansion card supports PCIe x4(3.0),PCIe x8, PCIe x16,backward compatible with PCIe 2.0, and comptible with Windows 8/10 (Professional, RT,Enterprise) system, no driver needed. USB3.2 Interface is backward compatible with USB3.1,USB3.0 and USB2.0 devices, it does not support Windows 7 and Linux operating systems.

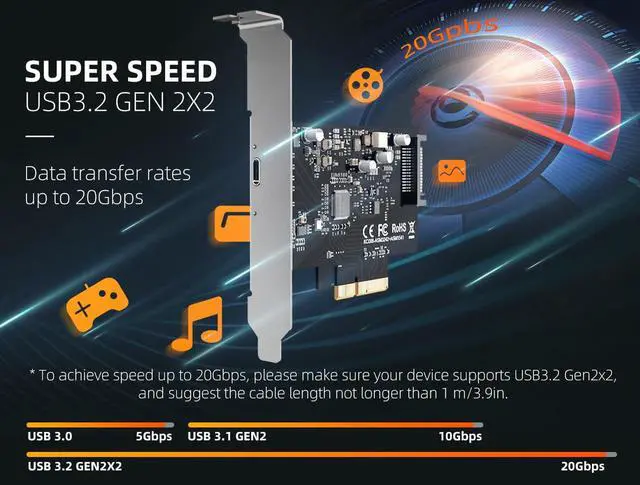

USB 3.2 New Nomenclature:
1. USB3.2 Gen 1 = USB3.1 Gen 1 , Product transfer rate is up to 5Gbps, Marketing name: SuperSpeed USB
2. USB3.2 Gen 2 = USB3.1 Gen 2 , Product transfer rate is up to 10Gbps, Marketing name: SuperSpeed USB 10Gbps
3. USB3.2 Gen 2X2, Product transfer rate is up to 20Gbps, Marketing name: SuperSpeed USB 20Gbps

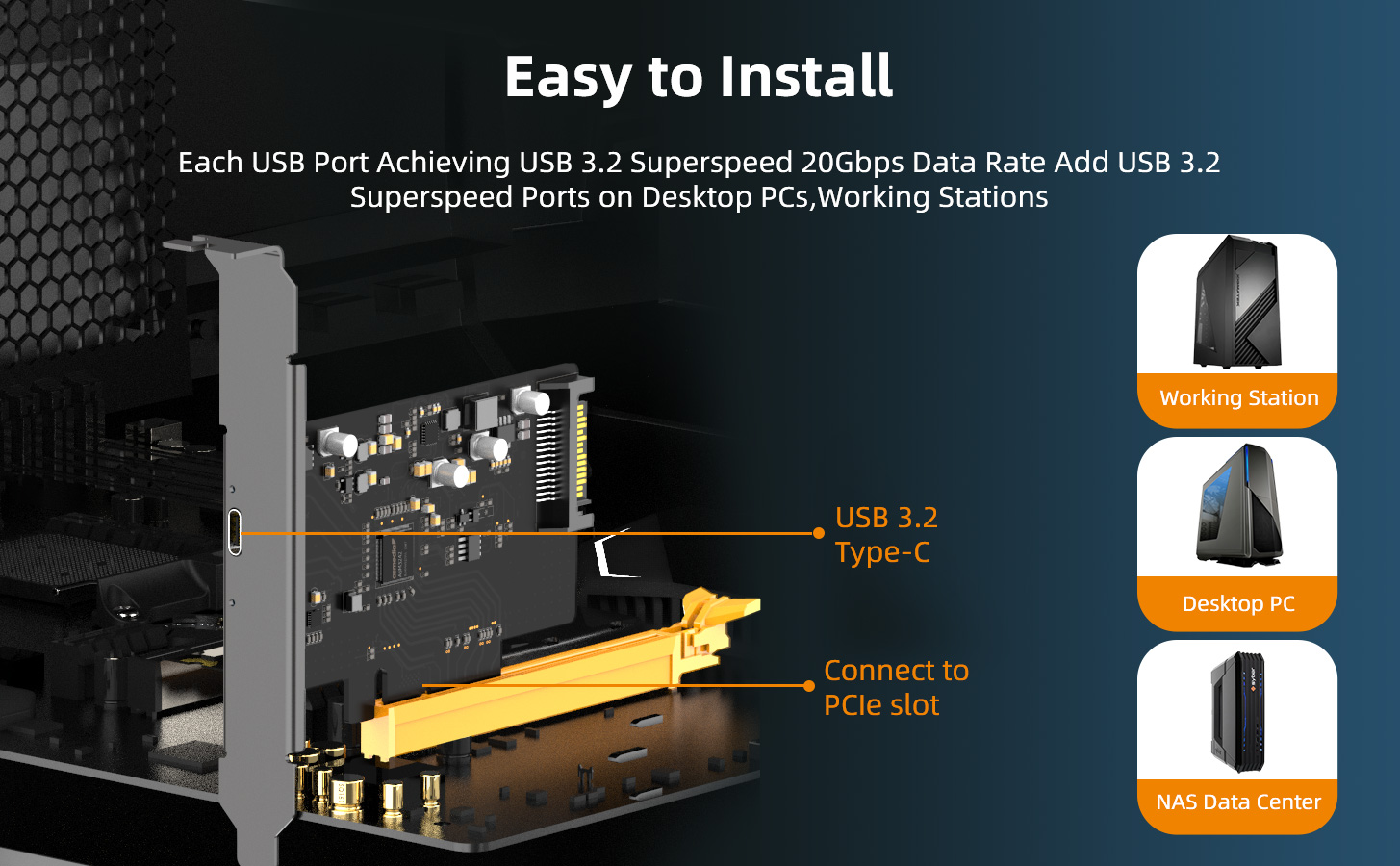

Easy Installtion
1.Turn off the computer power, then remove the cover from the computer case.
2.Find the corresponding PCI-E card slot.
3.Insert the card into a empty PCI Express slot.
4.Lock the screws.
