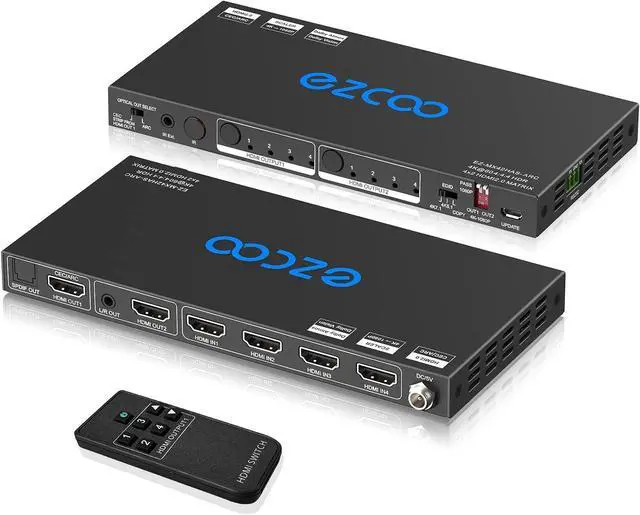

HDMI Matrix ARC 4 In 2 Out 4K HDR EDID 4K7.1/5.1/COPY Switch with SPDIF L/R Audio Extractor - Down-Scale 4K to 1080P,D-o-l-b-y Vision Atmos in Sync,HDMI Switch 4x2 CEC HDCP2.2 4K60 4:4:4 IR Remote Ext
- HDMI Matrix Switch 4 input 2 output ARC CEC 4K 60Hz with SPDIF,Stereo L/R 3.5mm audio extractor, HDMI Down-scaler 4K source to 1080p TV, EDID mode 4K 7.1, 4K 5.1, COPY for easy set up -- High Stable Performance for high-fidelity gaming, home entertainment. High Compatible with Fire TV, Roku, Apple TV, PS4 Pro, PS5, chromecast tv, Android TV Box S905, mac macbook, HDMI LED Box, Backlight Light neo sync -- Pls use new HDMI2.0 AWG26 cable less than 3 meter.

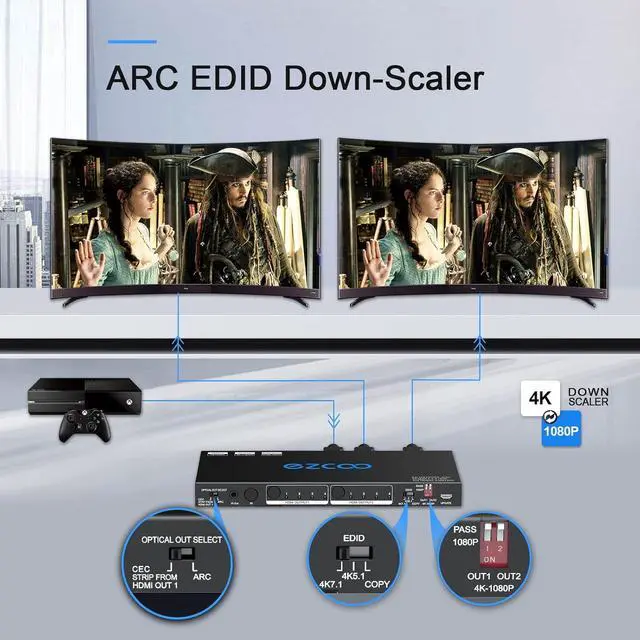

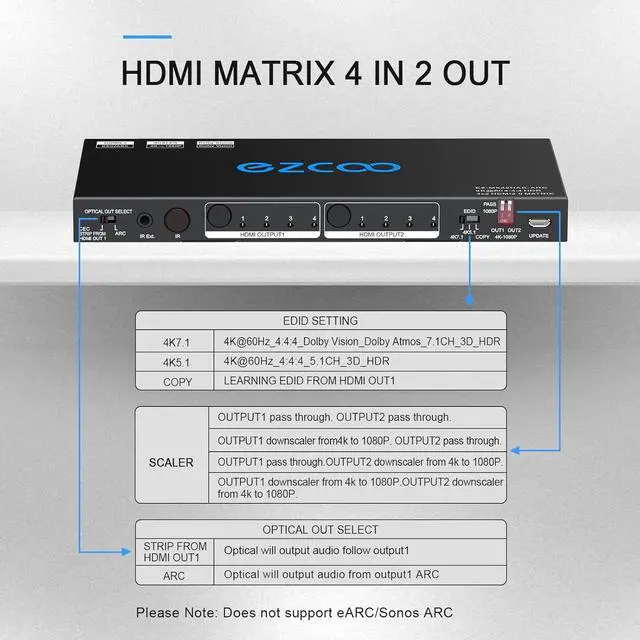

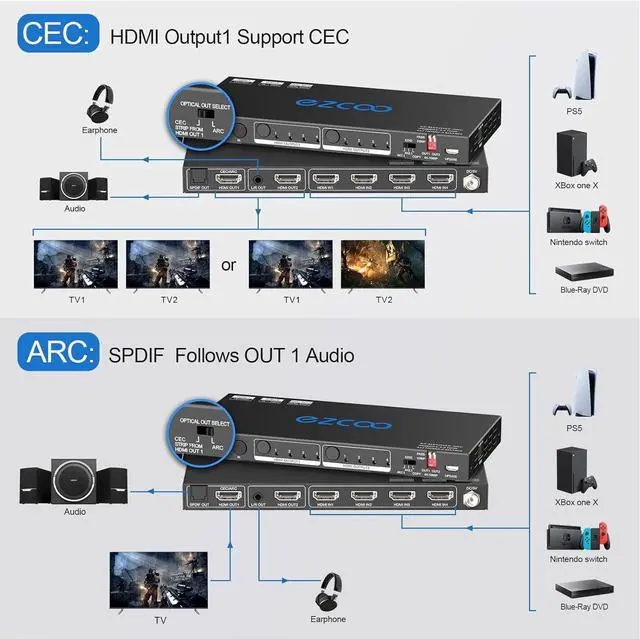

- ARC CEC Support ARC TV, ARC soundbar via SPDIF port. Not for Sonos ARC -- OUT 1 support ARC CEC only. ARC CEC is ALTERNATIVE. Pls check ARC CEC picture well -- EDID 4K 7.1ch, 4K 5.1ch, COPY mode toggle switch for easy set up-- Two outputs can Down-scale 4K source to 1080p 60Hz TV ONLY together or separately. NOT down-scale 4K HDR D-o-l-b-y Vision (4K60Hz 4:2:2), VRR. --Support 4K & 1080p TV work in sync, D-o-l-b-y Atmos soundbar, D-o-l-b-y Vision TV work in sync.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
AUDIO VIDEO HDMI Matrix Switch 4x2 support HDCP 2.2 HDMI 2.0 4K 60Hz

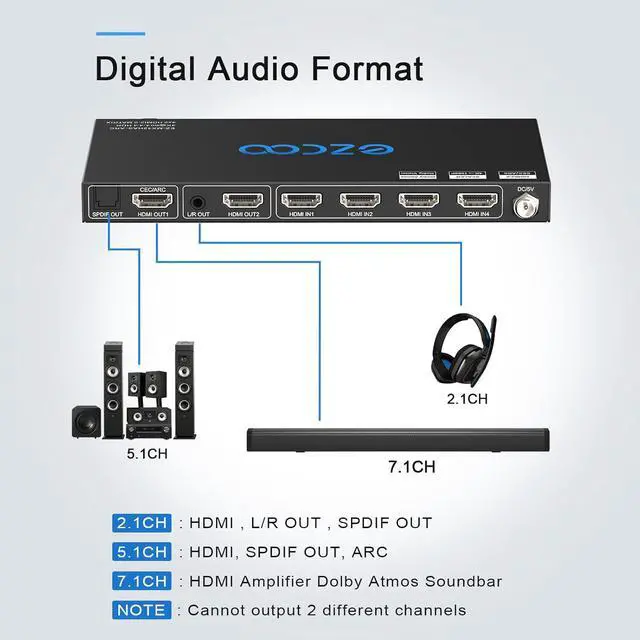

YUV 4:4: 4 18Gbps 8bit HDR D-o-l-b-y Vision, HDCP Bypass strip, 1080p @ 144Hz/ 120Hz/ 60Hz 3D, 3840x2160 @60Hz, 3440x1440 @ 60Hz, 1440p@ 120Hz/ 60Hz --HDMI audio Digital 7.1CH, D-o-l-b-y Atmos, DTS: X. De-embed SPDIF Optical 5.1CH follows up HDMI OUT 1. Stereo 2.1CH audio for headset earphone. NOT support ATMOS 7.1 & 5.1 audio work in sync. It is not audio down mixer.
ATTENTION PLS Plug and Play. Pls use new HDMI 2.0 AWG26 cable less than 3 meter. It's simple device, just needs to be hooked up correctly -- IR remote IR Extension Cable. Pls remove battery shield in IR remote firstly. NOT extend screen, matrix COPY mirror duplicate monitor.
HIGH COMPATIBILITY HDMI four input two output switcher matrix support G-Sync, N-v-idia Shield, X-f-i-nity box, 4K60 MK 2 Game Video Capture, XBox series, OSSC, Roku Express 4K+ Ultra Streaming Stick+, 4K camera etc. 4K IMAX HDMI bypass HDCP strip for IMAX DIGITAL 2K-4K. 1~3 sec Fast Input Switching.
YUV 4:4: 4 18Gbps 8bit HDR D-o-l-b-y Vision, HDCP Bypass strip, 1080p @ 144Hz/ 120Hz/ 60Hz 3D, 3840x2160 @60Hz, 3440x1440 @ 60Hz, 1440p@ 120Hz/ 60Hz --HDMI audio Digital 7.1CH, D-o-l-b-y Atmos, DTS: X. De-embed SPDIF Optical 5.1CH follows up HDMI OUT 1. Stereo 2.1CH audio for headset earphone. NOT support ATMOS 7.1 & 5.1 audio work in sync. It is not audio down mixer.
ATTENTION PLS Plug and Play. Pls use new HDMI 2.0 AWG26 cable less than 3 meter. It's simple device, just needs to be hooked up correctly -- IR remote IR Extension Cable. Pls remove battery shield in IR remote firstly. NOT extend screen, matrix COPY mirror duplicate monitor.
HIGH COMPATIBILITY HDMI four input two output switcher matrix support G-Sync, N-v-idia Shield, X-f-i-nity box, 4K60 MK 2 Game Video Capture, XBox series, OSSC, Roku Express 4K+ Ultra Streaming Stick+, 4K camera etc. 4K IMAX HDMI bypass HDCP strip for IMAX DIGITAL 2K-4K. 1~3 sec Fast Input Switching.
