8K@60 HDMI 2.1 and ARC Audio Extractor/Adapter, HDMI Audio to Optical, RCA R/L, Support 4K@120Hz, HDR10+, Dolby Vision, Dolby True Atmos, DTS-HD Audio Pass Through
- HDMI2.1 Audio extractor:It can extract audio signals from HDMI input sources(Such as PS5, Fire TV stick,Laptop,Blu ray DVD, TV) ,send HDMI signal to display device and audio to sound system through optical , RCA L/R port

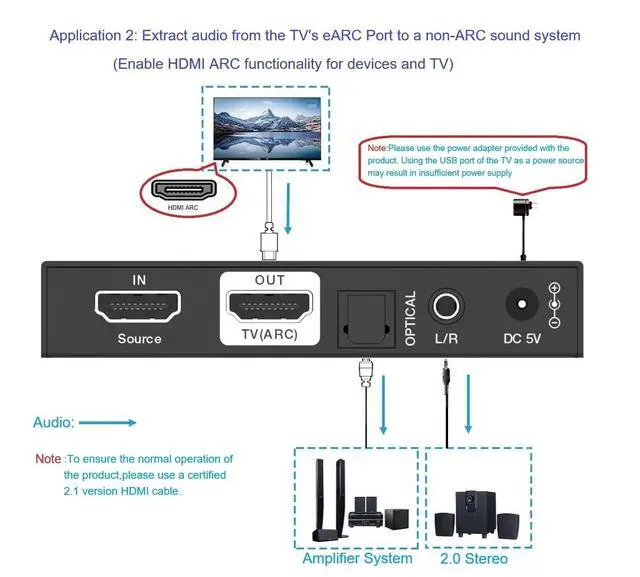

- ARC Audio extractorIt can extract audio signals from TV with HDMI ARC port, audio signals can be transmitted to a stereo audio or sound system through optical , RCA L/R port.
- Technical SpecificationsSupport 48Gbps FRL and 18Gbps TMDS video bandwidth; Support video resolution up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit; Support VRR, ALLM, QMS, QFT, SBTM; Support HDR, HDR 10, HDR 10+, Dolby Vision, HLG pass-through.Support LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master, DSD Audio pass-through.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Audio Out FormatsOPTICAL OUT: PCM 2.0CH, Dolby, DTS 5.1CHL /R
OUT: PCM 2.0CHW hen the source is 5.1 audiooutput via optical as 5.1, there is no sound from L/R; when the source is 2.0 audio, both the optical and L/R outputs 2.0 audio.
ServiceSupports Intelligent EDID management; A USB-C port that allows for online upgrades. Our Products Provide 1-year Limited Warranty And Lifelong Technical Support. If there is any doubt during use. Please Feel Free To Contact Us (1, Find Your Order. 2, Click The "contact Seller" Button) And We Will reply you Within 24 Hours.
This 48Gbps ARC Audio Extractor is designed for extract audio signals from an HDMI source or TV with HDMI ARC port, and output digital S/PDIF audio or analog audio to audio system. It supports data rates up to 48Gbps complying with HDMI 2.1 and HDCP 2.3 requirements. It includes several features for ease of integration, such as EDID management and cable equalization. It provides an easy solution for HDMI to send video to display display device and audio signals to sound system.
OUT: PCM 2.0CHW hen the source is 5.1 audiooutput via optical as 5.1, there is no sound from L/R; when the source is 2.0 audio, both the optical and L/R outputs 2.0 audio.
ServiceSupports Intelligent EDID management; A USB-C port that allows for online upgrades. Our Products Provide 1-year Limited Warranty And Lifelong Technical Support. If there is any doubt during use. Please Feel Free To Contact Us (1, Find Your Order. 2, Click The "contact Seller" Button) And We Will reply you Within 24 Hours.
This 48Gbps ARC Audio Extractor is designed for extract audio signals from an HDMI source or TV with HDMI ARC port, and output digital S/PDIF audio or analog audio to audio system. It supports data rates up to 48Gbps complying with HDMI 2.1 and HDCP 2.3 requirements. It includes several features for ease of integration, such as EDID management and cable equalization. It provides an easy solution for HDMI to send video to display display device and audio signals to sound system.
