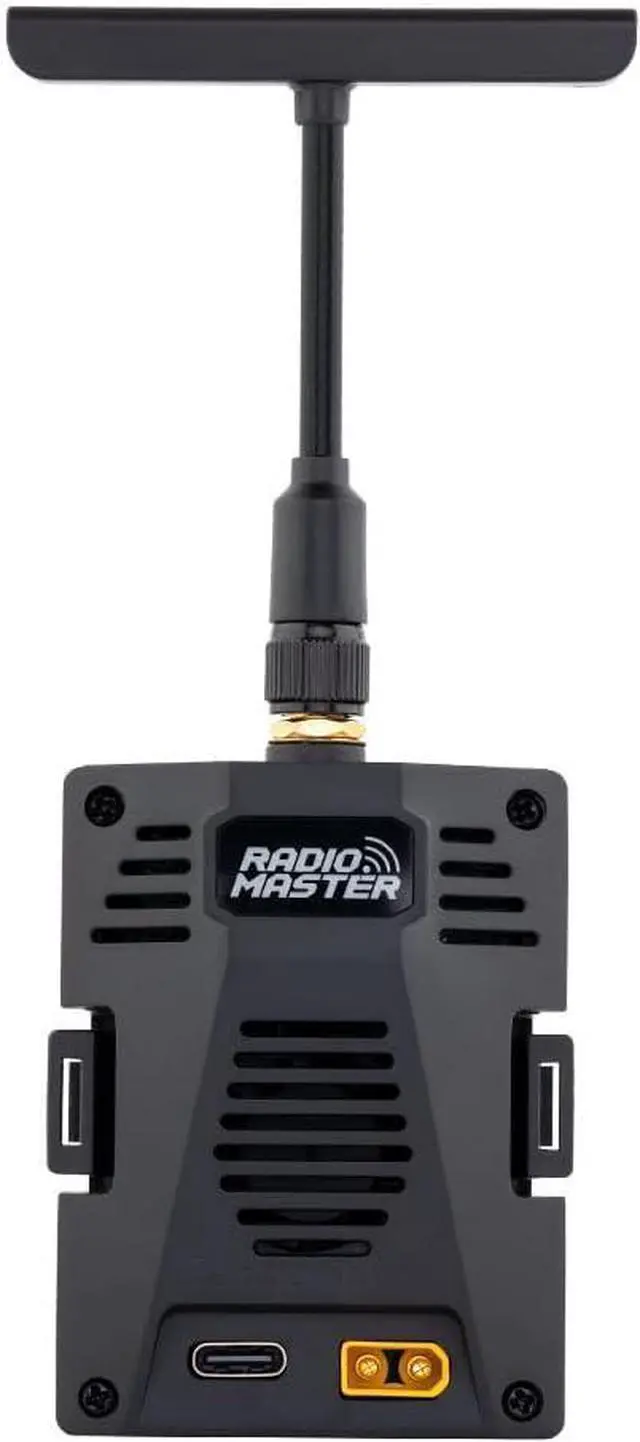

Ranger Micro 2.4GHz ELRS Module for TX16S TX12 MKII
- The Ranger Micro 2.4GHz ELRS Module represents the cutting edge in ELRS technology. Attach the module to a compatible radio (TX16S, TX16S MkII, TX12, TX12 MkII and more) to enjoy all that ELRS has to offer.
- The included T-shape antenna is designed for maximum signal coverage. An optional MOXON antenna is available for directional applications.
- The Ranger Micro 2.4GHz ELRS Module fits JR style micro module bays.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Eouipped With High Efficiency Cooling System
Wifi and Bluetooth support
FeaturesHigh-efficiency cooling system
Wifi and Bluetooth support
T-antenna included
With the Micro connector, support TX16S MKII and TX12 MKII radio
The Ranger Micro 2.4GH z ELRS Module fits JR style micro module bays, for Nano connectors, please consider the Ranger and the Ranger Nano modules.
SpecificationItem: Ranger Micro Module
Regulatory Domain: ISM2400
MCU: ESP32 (main), ESP8285(aux, as espbackpack)
RF chip: SX1281IMLTRT
Frequency Range: 2400 MHz to 2480 MHz
Minimum receiver refresh rate: 25Hz
Wifi Support: Yes
Bluetooth support: Yes

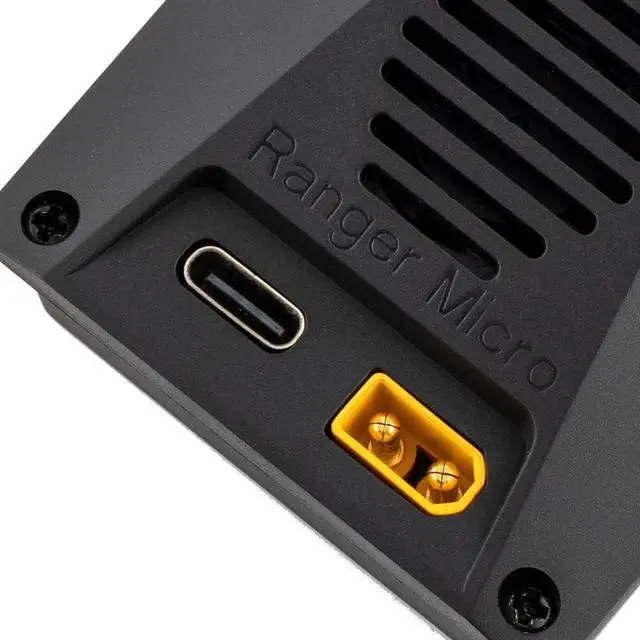

XT30 Power supply voltage: DC 6V - 16.8V
Weight: 50g (with antenna) / 40.5 g (without antenna)

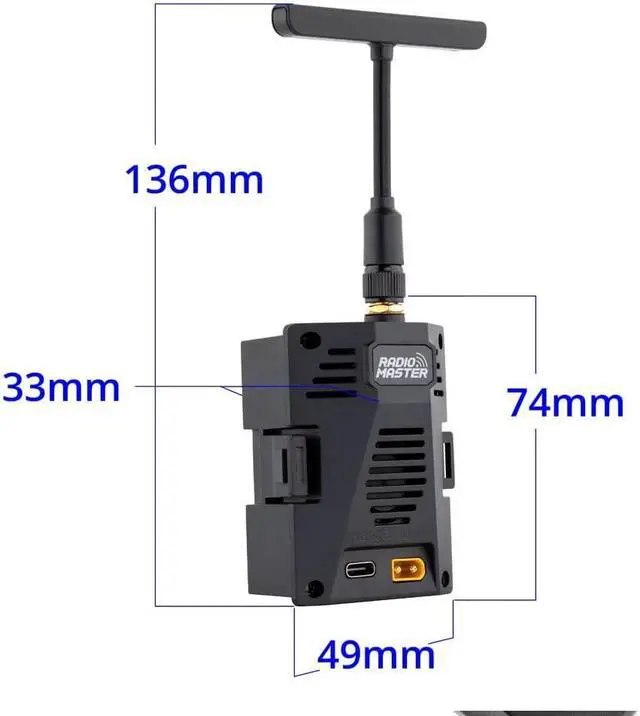

Dimension: 136*49*33mm (with T antenna) / 74*49*33mm (without antenna)
Package includes
1 x Ranger Micro Module
Wifi and Bluetooth support
FeaturesHigh-efficiency cooling system
Wifi and Bluetooth support
T-antenna included
With the Micro connector, support TX16S MKII and TX12 MKII radio
The Ranger Micro 2.4GH z ELRS Module fits JR style micro module bays, for Nano connectors, please consider the Ranger and the Ranger Nano modules.
SpecificationItem: Ranger Micro Module
Regulatory Domain: ISM2400
MCU: ESP32 (main), ESP8285(aux, as espbackpack)
RF chip: SX1281IMLTRT
Frequency Range: 2400 MHz to 2480 MHz
Minimum receiver refresh rate: 25Hz
Wifi Support: Yes
Bluetooth support: Yes
XT30 Power supply voltage: DC 6V - 16.8V
Weight: 50g (with antenna) / 40.5 g (without antenna)
Dimension: 136*49*33mm (with T antenna) / 74*49*33mm (without antenna)
Package includes
1 x Ranger Micro Module
