Metal Concealed Hinge Jig with Woodworking Tools,35mm Concealed Door Hinge Jig,Cabinet Hinge Jig for Door Cabinets Hinges Mounting for Woodworking Door Cabinet Hinges Mounting Tool
- High-Quality Aluminium AlloyThe 35mm concealed hinge boring jig kit is made of high-quality aluminium alloy. It is precisely manufactured for accurate positioning and has a sharp drill bit. It is wear-resistant, durable, anti-corrosive and anti-rust, and one hinge jig can be used for many years. It is the best woodworking hole opening auxiliary tool.

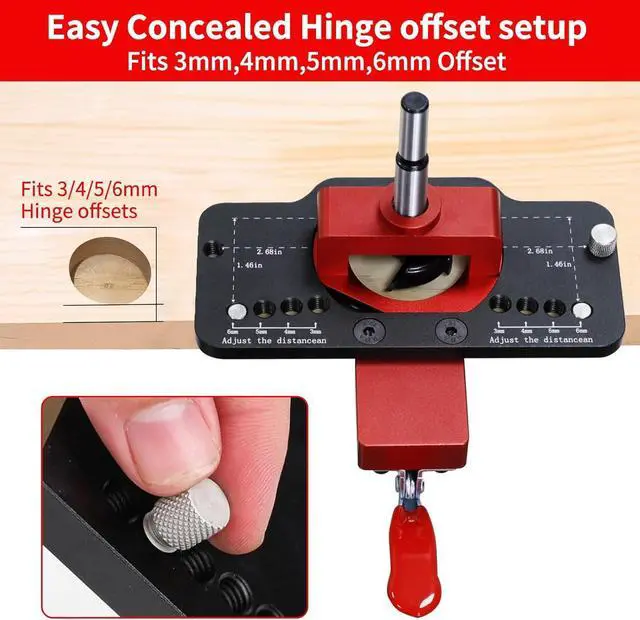

- Easy operationThe 35mm Hinge Drilling Jig makes drilling easy. The adjustable dials for 3 mm, 4 mm, 5 mm and 6 mm hinge offsets help you to choose your drilling position easily. Attach the drill bit to the drill for an easy and fast drilling experience. Finally, the auxiliary locator holes on both sides allow screws to be easily screwed into the wood panel.
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Wide ApplicationThese 35 mm hinge clips are widely used for hinge installation, door hinge drilling and positioning, and woodworking opening assistance. With a 35 mm opening and a distance to the edge of 5 mm, they are applicable to most common hinges, allowing you to easily install multiple cabinet doors.

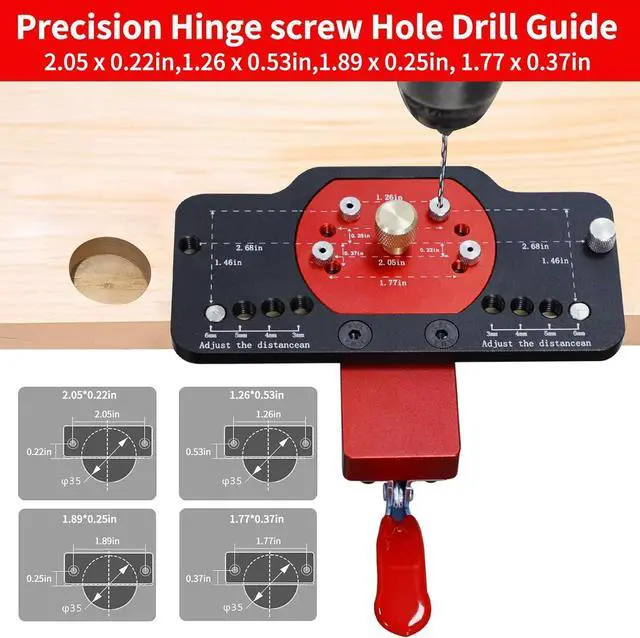

How to use: 1. Install the 35 mm hole opener and secure the limit ring. 2. Adjust the black fixing tool on the fixture (the tool is adjustable for fixing plate sizes between 15 and 25 mm). 3. Install the locator and drill bit provided. 4. Tighten the drill handle and press the drill bit down evenly to a depth of 1213 mm. 5. Drill two 2 mm screw holes on each of the left and right sides.

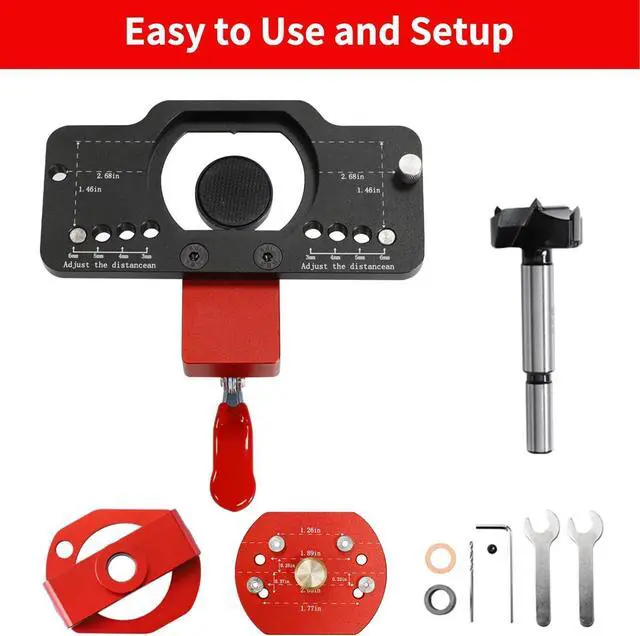

Package List1*Hinge boring hole drill guide body, 2*drilling guide locator, 1*35mm hole opener, 1* 2mm drill bit, 2*wrench, 1*bearing. It's the best woodworking hole opening auxiliary tool.
Adjust the position of the limit ring and lock it accordingto the depth of the hinge cup.
This high-quality hinge drilling jig is designed specifically for 35mm European and American hinges, suitable for most common hinges.
Before use, adjust the drilling depth according to your needs, with an adjustment range of 10-15mm. The operation is simple
The cabinet door invisible hinge fixture is designed with humanization, easy to install, and can be easily operated by beginners, saving time and improving work efficiency. Reduce errors during the operation process, ensure correct installation and drilling accuracy
How to use: 1. Install the 35 mm hole opener and secure the limit ring. 2. Adjust the black fixing tool on the fixture (the tool is adjustable for fixing plate sizes between 15 and 25 mm). 3. Install the locator and drill bit provided. 4. Tighten the drill handle and press the drill bit down evenly to a depth of 1213 mm. 5. Drill two 2 mm screw holes on each of the left and right sides.
Package List1*Hinge boring hole drill guide body, 2*drilling guide locator, 1*35mm hole opener, 1* 2mm drill bit, 2*wrench, 1*bearing. It's the best woodworking hole opening auxiliary tool.
Adjust the position of the limit ring and lock it accordingto the depth of the hinge cup.
This high-quality hinge drilling jig is designed specifically for 35mm European and American hinges, suitable for most common hinges.
Before use, adjust the drilling depth according to your needs, with an adjustment range of 10-15mm. The operation is simple
The cabinet door invisible hinge fixture is designed with humanization, easy to install, and can be easily operated by beginners, saving time and improving work efficiency. Reduce errors during the operation process, ensure correct installation and drilling accuracy
