OBD2 Breakout Box Automotive Advanced OBDII Protocol Detector with LCD Display & LED Indicator, 16-Pin CAN Breakout Box Diagnostic Tool for Power Car E.CU, Use with Scanner/Multimeter/Oscilloscope

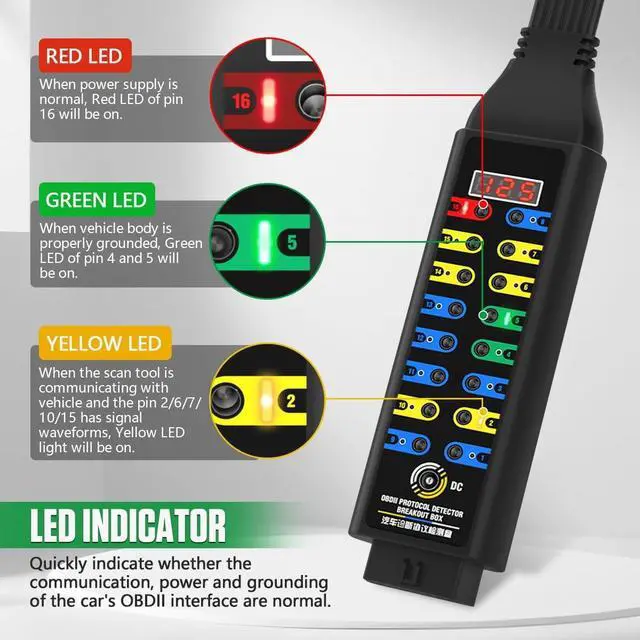

3-color LED Indicator of OBDII Breakout BoxThe LED lights on the OBD2 breakout box can quickly indicate whether the communication, power and grounding of the car's OBDII interface are normal. Yellow LED (Pin 2/6/7/10/15) lights up to indicate that the OBD2 scanner is communicating with the vehicle and the pins have signal waveforms. Green LED (Pin 4/5) lights up to indicate that car body is properly grounded. Red LED (Pin 16) lights up to indicate that the power supply is normal.

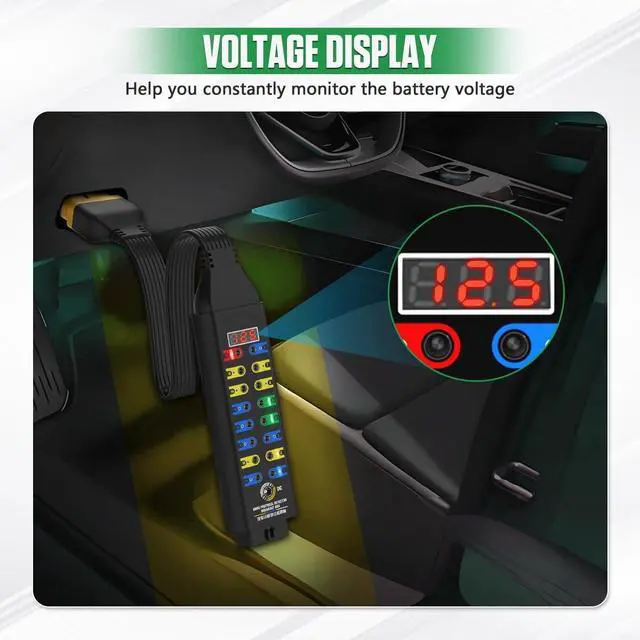

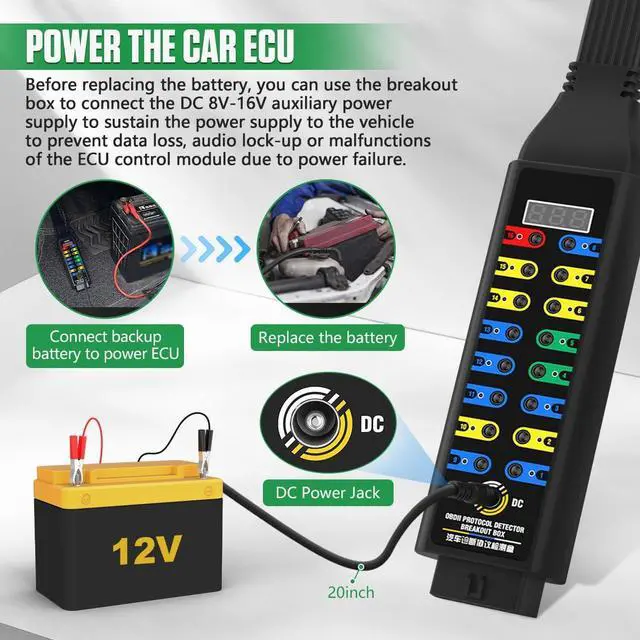

Voltage Display & Power E. CU when Replacing BatteryOur OBD2 breakout box is equipped with a voltage display to help you constantly monitor the battery voltage. Breakout box also comes with a DC power jack and a 12V battery alligator clip. Before replacing the battery, you can use the breakout box automotive to connect the DC 8V-16V auxiliary power supply to sustain the power supply to the vehicle to prevent data loss, audio lock-up or malfunctions of the E. CU control module due to power failure.

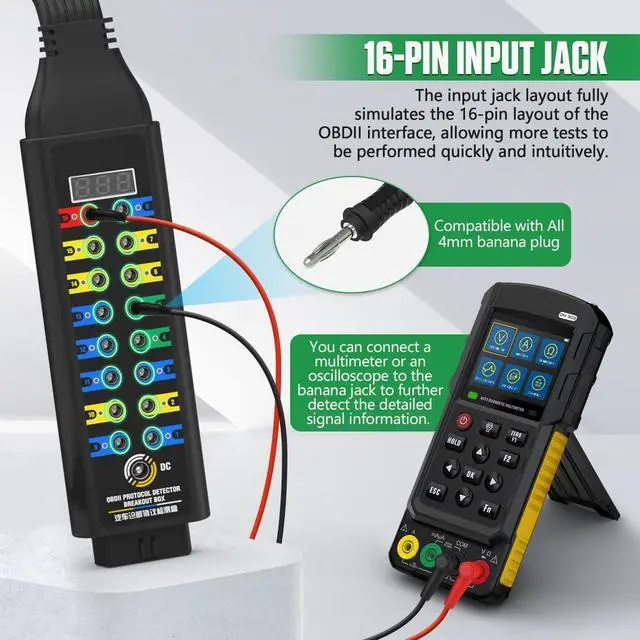

16-Pin Jack Layout Design for All 4mm Banana PlugThe input jack layout of OBDII breakout box fully simulates the 16-pin layout of the OBDII interface, allowing more tests to be performed quickly and intuitively. You can easily access each of the 16 pins while OBD2 scanner communicating with vehicles. The built-in input jack can be connected to all types of 4mm banana plug. You can connect a multimeter or an oscilloscope to the banana jack to further detect the detailed signal information.
High Elasticity & High Flexibility 18-inch Extension Cable & 4 Sets of Universal Jumper WiresOBDII breakout box is equipped with a 18-inch extension cable, which is made of elastic thermoplastic TPU material with high elasticity, high strength and high flexibility. OBDII extension cable adopts multi-thread connection data technology, which makes connection faster and smoother. It also is equipped with 4 sets of universal jumper wires with different plugs in 4 colors, which can be wired flexibly.
