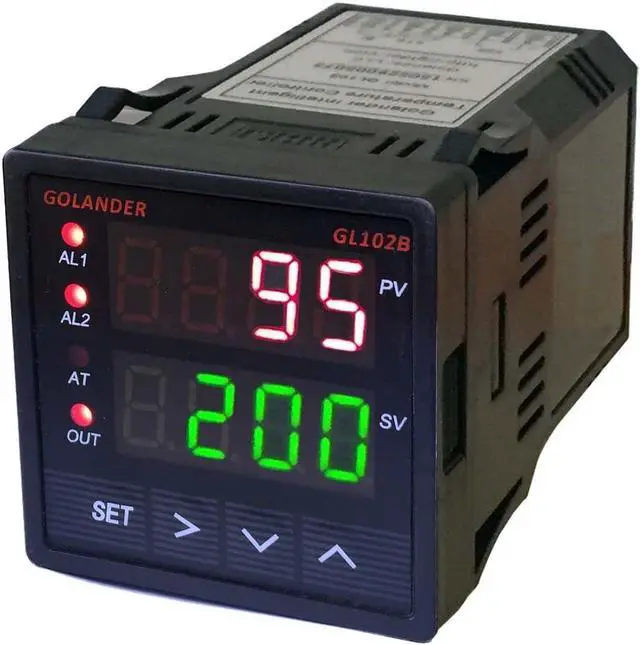

12V/24V DC Powered Universal 1/16DIN PID Temperature Controller, PID, On/Off, Manual Control, with 2 Alarm Relays
- 9-30V DC powered. Supports 10 different types of commonly used temperature sensor inputs
- The PID, on/off or manual control output can be configured by the user for either relay contact or SSR
- Displays temperature in either Fahrenheit or Celsius
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
On/Off control mode for refrigerator, motor and solenoid valve control application
Bump less transfer between Auto and Manual control
Universal controller to work with either contactor or SSR
Display: Two lines, Four digits. ºF or ºC
Input type TC: K, E, S, R, J, T, B, WRe3-WRe25
RTD: Pt100, Cu50
Input range: K (-200~+1300ºC), S (-50~+1600ºC), WRe3-WRe25 (0~2300ºC), R (-50~+1600ºC), T (-200~400ºC), E (-200~900ºC), J (-200~1200ºC), B (350~1800ºC), Pt100 (- 99.9 ~ 600.0 ºC) or (-200~+600ºC), Cu50 (-50~150ºC)
Display Resolution: 1ºC, 1ºF, or 0.1 ºC, 0. 1ºF, with Pt100
Accuracy: 0.2 % or 1 unit of full input range
Control mode: PID, On-Off, Manual
Output mode: Relay
contact: 3A at 240 VAC, SSR: 8VDC, short circuit 40 mA
Alarm: Process high/low alarm
Power consumption:
Bump less transfer between Auto and Manual control
Universal controller to work with either contactor or SSR
Display: Two lines, Four digits. ºF or ºC
Input type TC: K, E, S, R, J, T, B, WRe3-WRe25
RTD: Pt100, Cu50
Input range: K (-200~+1300ºC), S (-50~+1600ºC), WRe3-WRe25 (0~2300ºC), R (-50~+1600ºC), T (-200~400ºC), E (-200~900ºC), J (-200~1200ºC), B (350~1800ºC), Pt100 (- 99.9 ~ 600.0 ºC) or (-200~+600ºC), Cu50 (-50~150ºC)
Display Resolution: 1ºC, 1ºF, or 0.1 ºC, 0. 1ºF, with Pt100
Accuracy: 0.2 % or 1 unit of full input range
Control mode: PID, On-Off, Manual
Output mode: Relay
contact: 3A at 240 VAC, SSR: 8VDC, short circuit 40 mA
Alarm: Process high/low alarm
Power consumption:
