Electromagnetic Lock with Z and L Bracket 280KG 600LBS Holding Force Electric Magnetic Door Lock 12V Fail Safe NC Mode for Access Control System
- Materials: Stainless steel, Anti-residual magnesium designed. This magnetic door lock provides a strong sense of security with its outstanding holding force 600Lbs (280KG) and significant features.
- Size: The lock size is 9.84 x 1.93 x 0.98 inch (250 x 49 x 25mm); Armature plate: 7.09 x 1.50 x 0.43 inch (180 x 38 x 11mm). Holding Force: 600LBS (280KG).
- Mode: NC Mode (Fail-Safe Mode), Locked whilst power supply is operating, unlocked when power off; Voltage: DC12V.
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Security protection: This electromagnetic lock has safety function. It is built in voltage spike suppressor.
Wide Applications: This electric magnetic door lock is suitable for Wooden Door, Glass Door, Metal Door, Fire Proof Door, Cabinet, etc.

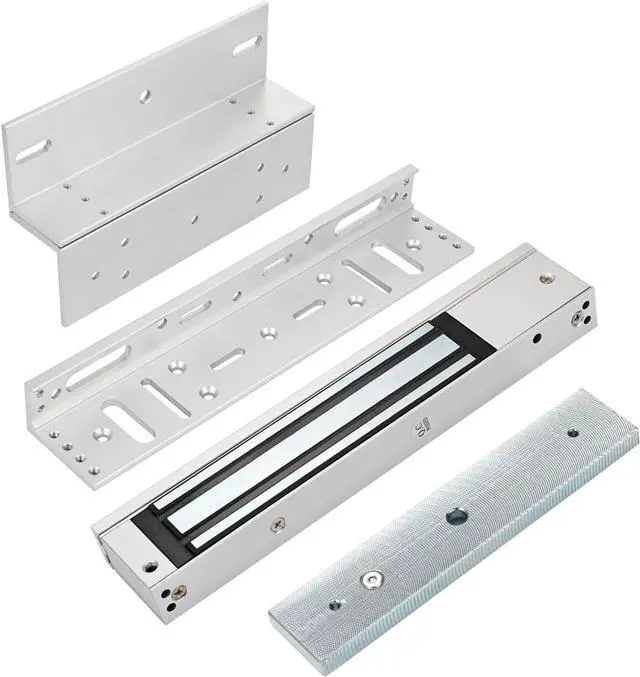

This 600LBS Holding Force electric magnetic lock consists of an electromagnet and an armature plate used for access control door locks.
By attaching this to the door frame and the armature plate to the door, a current passing through the electromagnet attracts the armature plate, holding the access control door lock shut.
NC Mode (Fail-Safe Mode): The door will be closed when power is on; when power off, the door will open.
It is suitable for wooden door, glass door, metal door, fire-proof door, Cabinet, etc.
Please check if Z and L brackets are required for installation.
Specification:
Electromagnetic plate Material: Aluminum Alloy + Metal Plate
Armature Plate Material: Zinc
Cover Finish: Anodized aluminum
Color: Silver
Holding Force: 600LBS/280KG
Input Voltage: DC 12V
Operating Temperature: -10C to +55C (14 to 131F)
Operating Current: 480mA
Size: 9.84L x 1.93W x 0.98H (inch) / 290L x 45W x 25H (mm)
Armature plate: 7.09L x 1.50W x 0.43H (inch) / 180L x 38W x 11H (mm)
Package Weight: Approx. 4.0 lb ( 1.78KG )

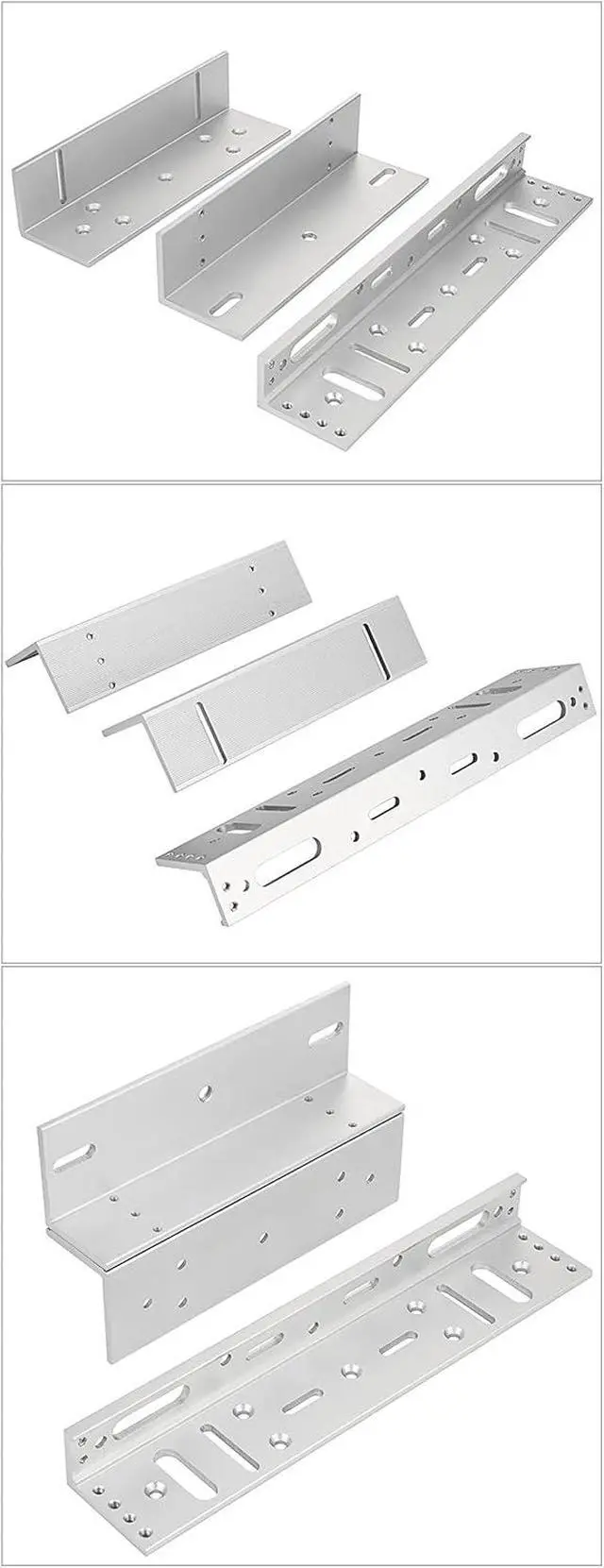

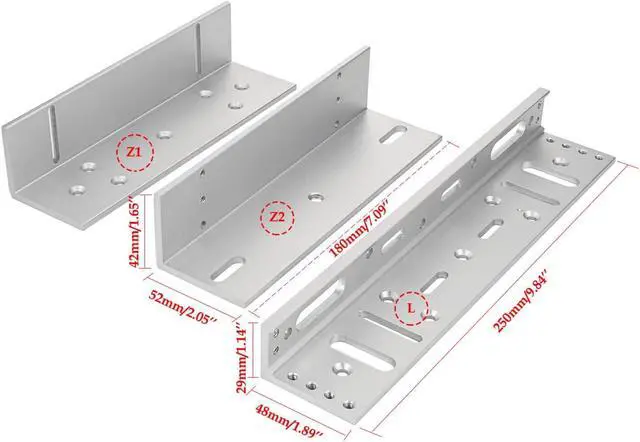

Specification of Z and L Bracket:
Material: High strength aluminum, sandblast finished
Opening Mode: 90 degree door
Suitable for Door: Wooden door and metal door
Suitable for Lock: Electromagnetic lock series of 600LBS/ 280KG holding force
Easy to install and convenient to use
Package Weight: 0.60KG / 1.33 pounds
Package list:
1 * Electromagnetic Lock
1 * Armature Plate
1 * Screws Pack
1 * User Manual (English)
Package List of Z and L Bracket:
1* "Z" Style Bracket (2 parts)
1 * "L" Style Bracket
1 * Screws Pack
Wide Applications: This electric magnetic door lock is suitable for Wooden Door, Glass Door, Metal Door, Fire Proof Door, Cabinet, etc.
This 600LBS Holding Force electric magnetic lock consists of an electromagnet and an armature plate used for access control door locks.
By attaching this to the door frame and the armature plate to the door, a current passing through the electromagnet attracts the armature plate, holding the access control door lock shut.
NC Mode (Fail-Safe Mode): The door will be closed when power is on; when power off, the door will open.
It is suitable for wooden door, glass door, metal door, fire-proof door, Cabinet, etc.
Please check if Z and L brackets are required for installation.
Specification:
Electromagnetic plate Material: Aluminum Alloy + Metal Plate
Armature Plate Material: Zinc
Cover Finish: Anodized aluminum
Color: Silver
Holding Force: 600LBS/280KG
Input Voltage: DC 12V
Operating Temperature: -10C to +55C (14 to 131F)
Operating Current: 480mA
Size: 9.84L x 1.93W x 0.98H (inch) / 290L x 45W x 25H (mm)
Armature plate: 7.09L x 1.50W x 0.43H (inch) / 180L x 38W x 11H (mm)
Package Weight: Approx. 4.0 lb ( 1.78KG )
Specification of Z and L Bracket:
Material: High strength aluminum, sandblast finished
Opening Mode: 90 degree door
Suitable for Door: Wooden door and metal door
Suitable for Lock: Electromagnetic lock series of 600LBS/ 280KG holding force
Easy to install and convenient to use
Package Weight: 0.60KG / 1.33 pounds
Package list:
1 * Electromagnetic Lock
1 * Armature Plate
1 * Screws Pack
1 * User Manual (English)
Package List of Z and L Bracket:
1* "Z" Style Bracket (2 parts)
1 * "L" Style Bracket
1 * Screws Pack
