Automatic Irrigation DIY Kit Self Watering System with PDF Tutorial, 4pcs Capacitive Soil Moisture Sensor 4Channel 5V Relay Module and 4pcs Water Pump + 4M Vinyl Tubing for Garden Plant
- Easy to UseThis automated watering DIY Kit has become extremely popular since it automatically waters your plants and flowers according to monitor the soil moisture in a very efficient way.
- Automatic Watering SystemCombine Pump, Tubing, Soil Moisture Sensor and 4Channel 5V Relay Module in one plant watering system, including kits for a whole for DIY drip irrigating system.
- Capacitive SensorChip model: TL555C. Insert it in to the soil around your plants and With a screen and a motherboard, you can talk to your plants. To see if your plants is thirsty, do they need more water to moisten it?
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Take Care of Your Plants Anytime You can have the system to water your plant automatically. Whenever your soil becomes too dry, the pump is set into motion and water flows up the tube and into the pot. You dont have to worry about your plants while going for vacations.
Reliable SupportWe have prepared detailed automatic self watering electronic tutorial, includes: guidance manual, demo code, burning tools, necessary class libraries. You can contact us on, we will send PDF Document to you at any time.
If you have a window garden and are going to be away from home, or you chronically forget to water your plants, the 's smart watering kit might be a relatively easy high-tech solution.
This kit combines Pump, Tubing, Soil Moisture Sensor and 1Channel 5V Relay Module in one for plant watering system, you can simply plant your flower or your herbs in the pot and insert the soil moisture sensor in the soil.
Soil moisture sensor senses the moisture level of the soil. If soil will get dry then sensor senses low moisture level and automatically switches on the water pump to supply water to the plant.

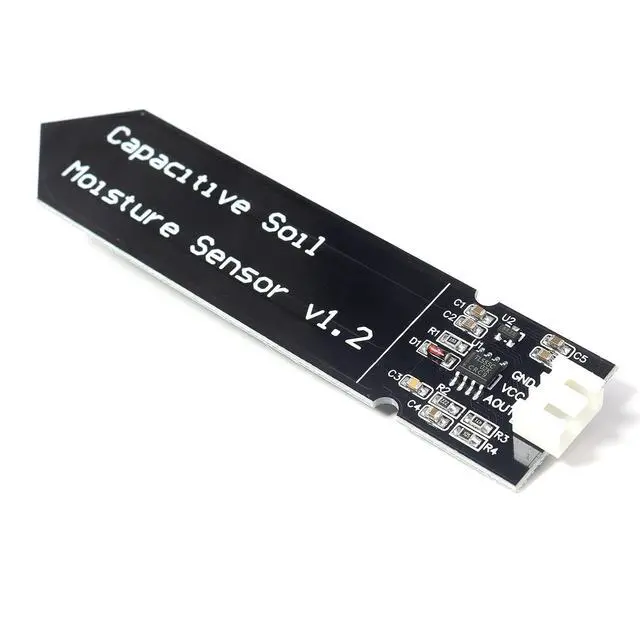

Capacitive Soil Moisture Sensor:
-Chip model: TL555C
-Operating voltage: 3.3 ~ 5.5 VDC
-Output voltage: 0 ~ 3.0 VDC
-Interface: PH 2.54 -3P
-Size: 98 x 23mm (LxW)
-Pin: Analog signal output, GND, VCC
1 Channel 5V Relay Module:
-VCC: Connect 5V Positive Pole Power Supply
-GND: Connect 5V Negative Pole Power Supply

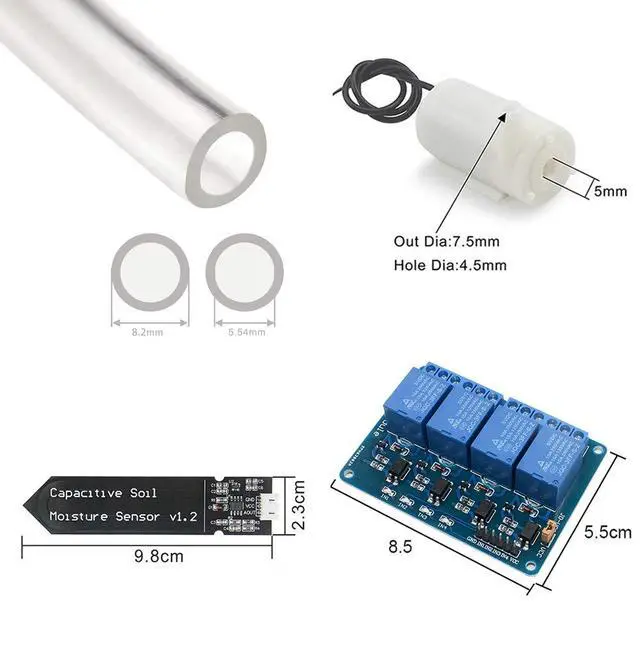

Mini Water Pump:
-DC Voltage: 3-5 V
-Outside diameter of water outlet: 0.29" / 7.5 mm
-Inside diameter of water outlet: 0.17" / 4.5 mm
-Water inlet diameter: 0.19" /5mm
-Driving mode: brushless dc design, magnetic driving
-Continuous working life of 300 hours
Vinyl Tubing:
-Material: PVC
-I. D.
Size: 0.22" / 5.54 mm
-O. D.
Size: 0.32" / 8.20 mm
-Length: 39.37 inch/100cm

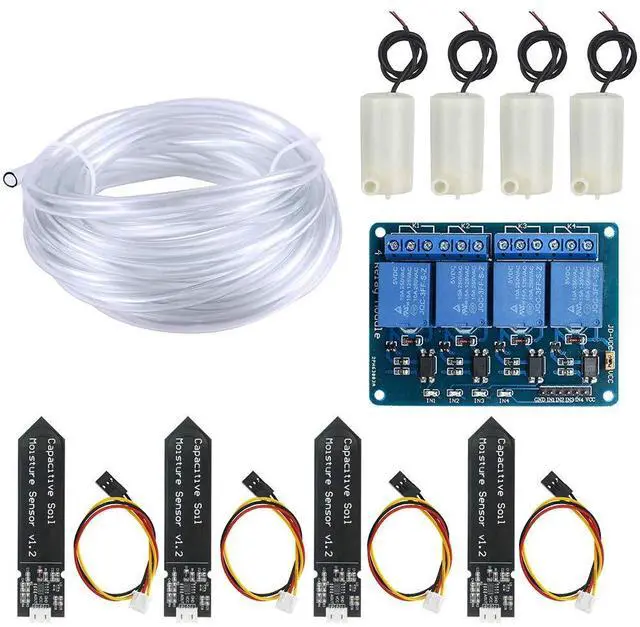

Package Included:
4 x Capacitive Soil Moisture Sensor
1 x 4 Channel 5V Relay Module
4 x Mini Water Pump
1 x 4M Vinyl Tubing
Reliable SupportWe have prepared detailed automatic self watering electronic tutorial, includes: guidance manual, demo code, burning tools, necessary class libraries. You can contact us on, we will send PDF Document to you at any time.
If you have a window garden and are going to be away from home, or you chronically forget to water your plants, the 's smart watering kit might be a relatively easy high-tech solution.
This kit combines Pump, Tubing, Soil Moisture Sensor and 1Channel 5V Relay Module in one for plant watering system, you can simply plant your flower or your herbs in the pot and insert the soil moisture sensor in the soil.
Soil moisture sensor senses the moisture level of the soil. If soil will get dry then sensor senses low moisture level and automatically switches on the water pump to supply water to the plant.
Specifications
:Capacitive Soil Moisture Sensor:
-Chip model: TL555C
-Operating voltage: 3.3 ~ 5.5 VDC
-Output voltage: 0 ~ 3.0 VDC
-Interface: PH 2.54 -3P
-Size: 98 x 23mm (LxW)
-Pin: Analog signal output, GND, VCC
1 Channel 5V Relay Module:
-VCC: Connect 5V Positive Pole Power Supply
-GND: Connect 5V Negative Pole Power Supply
Mini Water Pump:
-DC Voltage: 3-5 V
-Outside diameter of water outlet: 0.29" / 7.5 mm
-Inside diameter of water outlet: 0.17" / 4.5 mm
-Water inlet diameter: 0.19" /5mm
-Driving mode: brushless dc design, magnetic driving
-Continuous working life of 300 hours
Vinyl Tubing:
-Material: PVC
-I. D.
Size: 0.22" / 5.54 mm
-O. D.
Size: 0.32" / 8.20 mm
-Length: 39.37 inch/100cm
Package Included:
4 x Capacitive Soil Moisture Sensor
1 x 4 Channel 5V Relay Module
4 x Mini Water Pump
1 x 4M Vinyl Tubing
