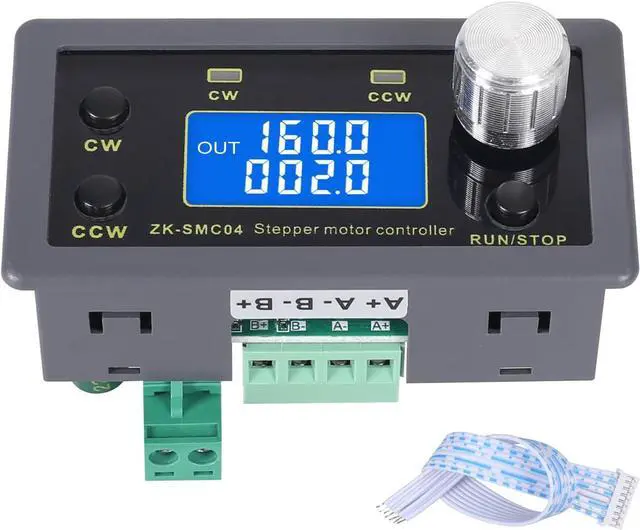

Stepper Motor Driver Controller for Nema 17 23 34 Stepper Motor Forward/Reverse Pulse Speed Controller DC 10V-30V 6.6A 1/64 Micro-Step Resolutions for 42 57 86 Stepper Motor TTL Serial Communication
- [All-in-One Stepper Motor Controller & Driver] This integrated control module combines both driver and controller functions for unipolar two-phase, 4-wire stepper motors. It has multiple built-in operation modes, allowing users to quickly select optimal motion trajectories. It features power-off memory for storing distance/speed/delay/cycle count settings. The module can operate either as a standalone unit or integrate with other systems, making it suitable for various industrial control applications.

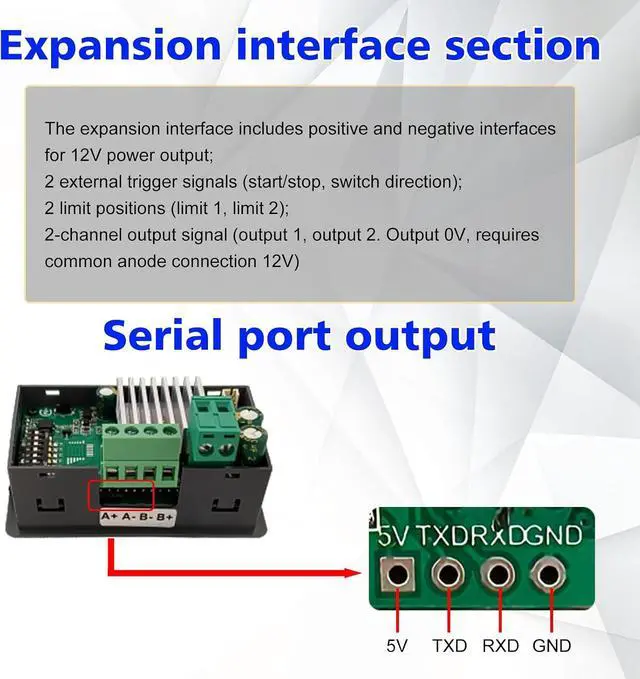

- [Intuitive HD LCD Display] Our high-resolution display provides real-time monitoring of speed, delay, and cycle parameters for effortless adjustment. The intuitive interface enables precise motor control while the TTL serial port ensures compatibility with industrial PLCs and PCs. Expandable control interfaces allow direct integration with robotic arms, CNC equipment, 3D printer and automated production systems.
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
[High-Power 6.6A Industrial Drive] Supports 42/57/86 series stepper motors with powerful 6.6A output, ideal for CNC machines, automated production lines, 3D printer and logistics equipment. Wide 10-30V DC input voltage adapts to complex factory power environments. Suitable for Nema 17/23/34 Stepper Motors.

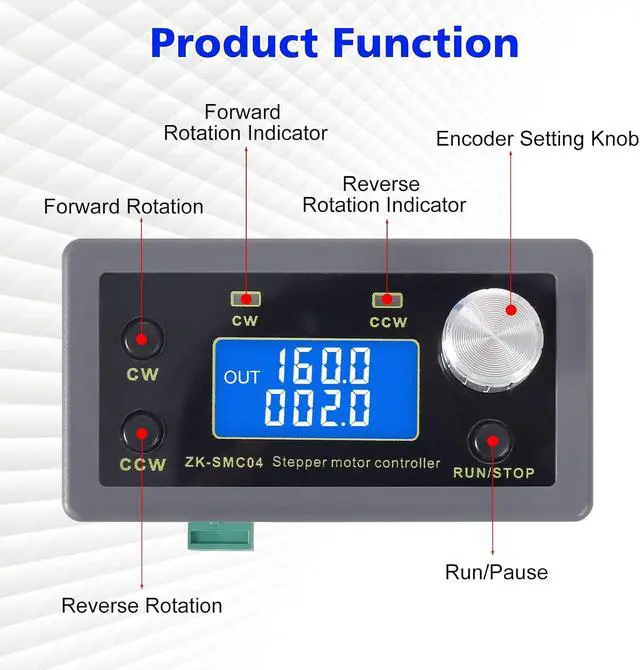

[Forward & Reverse] It can not only change rotation direction by pressing button, but also by potentiometer. It is also automatically change the direction through the selected working mode to achieve multi-scene and multi-application. It's suitable for small mechanical equipment applications; industrial automation control; motor modular application.
[15 Working Modes] Built-in 15 fixed operating modes, and you can quickly select the appropriate motion track to meet the needs of different scenarios, such as follow mode/Jog Control/cycle according to the set distance, reverse direction after reaching the limit, reverse cycle according to the set time, etc.
Product Parameters for Stepper Motor Driver Controller
Motor Stall vibration
Possible issues including silent mode active, short acceleration time, motor torque too small, low voltage or current etc. Fix by turning off silent mode, extending acceleration time, using a higher torque motor, or increasing voltage/current.
Why the motor doesn't rotate?
Possible issues: screen not lighting, motor shaft lacks power, driver chip in protection mode, or motor vibrates but wont rotate etc. Fix by checking power/polarity, increasing voltage or current, repowering, or checking motor wiring.
Screen cant turn ON
1. Check if the input voltage and current match the products specifications.
2. Check whether the positive and negative poles are connected correctly.
Motor shaft has no driving torque
The pulse signal is weak and requires an increase in input current or voltage.
Motor doesn't rotate but vibrate

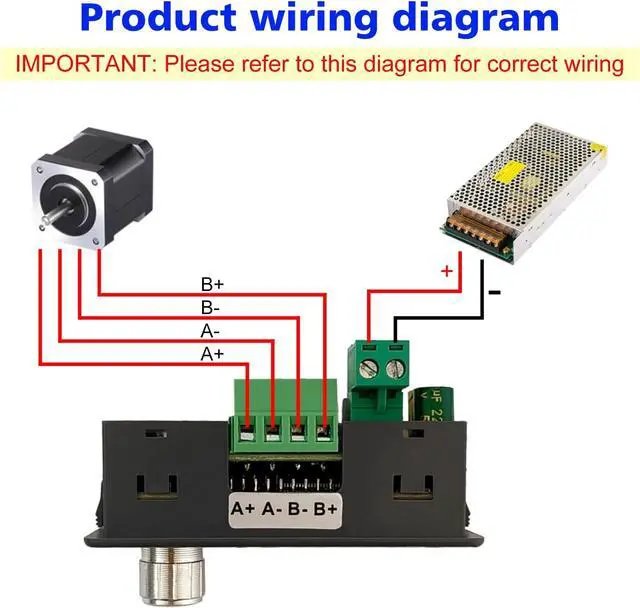

Check whether motor wire sequence is correct or not
[Forward & Reverse] It can not only change rotation direction by pressing button, but also by potentiometer. It is also automatically change the direction through the selected working mode to achieve multi-scene and multi-application. It's suitable for small mechanical equipment applications; industrial automation control; motor modular application.
[15 Working Modes] Built-in 15 fixed operating modes, and you can quickly select the appropriate motion track to meet the needs of different scenarios, such as follow mode/Jog Control/cycle according to the set distance, reverse direction after reaching the limit, reverse cycle according to the set time, etc.
Product Parameters for Stepper Motor Driver Controller
Motor Stall vibration
Possible issues including silent mode active, short acceleration time, motor torque too small, low voltage or current etc. Fix by turning off silent mode, extending acceleration time, using a higher torque motor, or increasing voltage/current.
Why the motor doesn't rotate?
Possible issues: screen not lighting, motor shaft lacks power, driver chip in protection mode, or motor vibrates but wont rotate etc. Fix by checking power/polarity, increasing voltage or current, repowering, or checking motor wiring.
Screen cant turn ON
1. Check if the input voltage and current match the products specifications.
2. Check whether the positive and negative poles are connected correctly.
Motor shaft has no driving torque
The pulse signal is weak and requires an increase in input current or voltage.
Motor doesn't rotate but vibrate
Check whether motor wire sequence is correct or not
