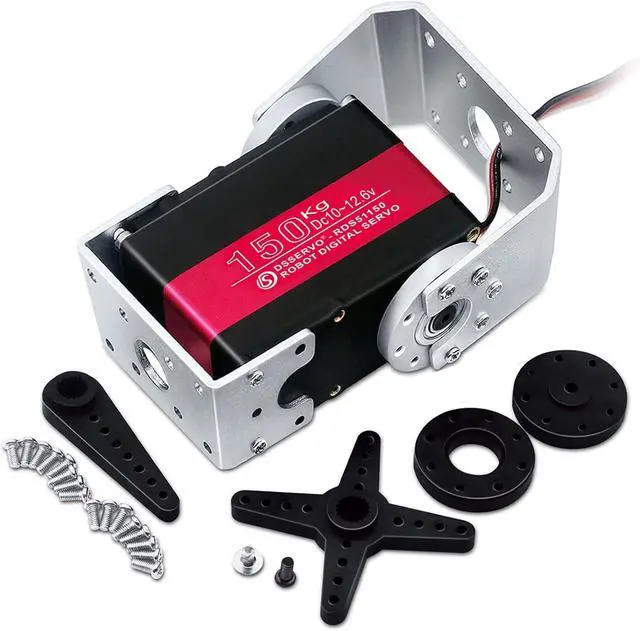

150KG Robot Servo Motor 12V High Voltage High Torque Steel Gear Large Digital Steering Servos with Mount Brackets

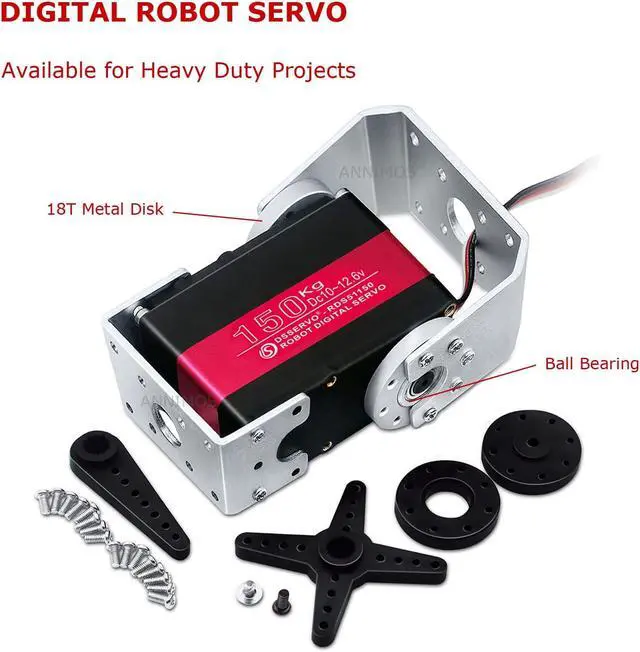

- Widely Used: RDS51150SG 150kg Full Metal Gear Servo Suitable for Robotic Arm/Industry, Humanoid, Bipedal and Multipedal Robots, as well as PTZ Monitoring Equipment, Remote-Controlled Vehicles etc.
- Great Heavy-Duty Servo: Amazing Torque & Fast Performance, Perfect for Industry and Robot Arms, Maximum Torque Can Up to 173kg.cm(2402.5oz-in),Speed 0.19 sec/60°@12.6V
- Reliable Quality: Equipped with High-precision Steel Gear and Potentiometers , High-resolution Digital Chip, Made of First-grade Material and CNC Aluminum Middle Shell Ensure Stable Performance and Long Working Life.
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Best Upgrade for your
RC Rigs: Durable, Responsive, Strong Anti-interference Ability, Low Noise, Fast Heat Dissipation. Precision Control, Angle Range from 0 to 270 Degrees. Can be Rotated within 360 Degrees when Power Off. Power Wire is longer Enough Up to 45mm. Free U-Brackets & Accessories.
Satisfied Customer Service: We Are Specialized in Developing and Manufacturing Robot & RC Servo, We Offer Value Price for Bulk Order. If Any Problem with Your Servo or Anything We Can Help, Please Do Not Hesitate to Contact with Us, We Will Try Our Best to Solve it Efficiently.
Electrical Specification
Operating voltage range: 9- 12.6 Volts
Operating speed at no load (
10V ): 0.24 sec/60°
Operating speed at no load (
12V ): 0.21 sec/60°
Operating speed at no load (
12.6V ): 0.19 sec/60°
Stall torque at locked (
10V ): 150kg. cm(2083oz-in)
Stall torque at locked (
12V ): 165kg. cm( 2291.4 oz-in)
Stall torque at locked (
12.6V ): 173kg. cm( 2402.5 oz-in)
Stall current at locked (
10V ): 7.4A
Stall current at locked (
12V ): 8.0A
Stall current at locked (
12.6V ): 8.3A
Idle current at stopped (10/12/ 12.6V ): 4/5/6mA
Control Specification:
Control System: PWM (Pulse width modification)
Pulse width range: 500-2500sec
Neutral position: 1500sec
Running degree: 270° (when 500-2500sec)
Dead band width: 3sec
Operating frequency: 50-330Hz
Rotating direction: Counterclockwise (When 1500-2500sec)
Product Specification:
Motor Type3-pole (s)
Gear Type: Steel Gear
Spline: 18 Tooth
Gear ratio: 357
BearingDouble Bearing
Connector Wire: 17.7 in (450mm)

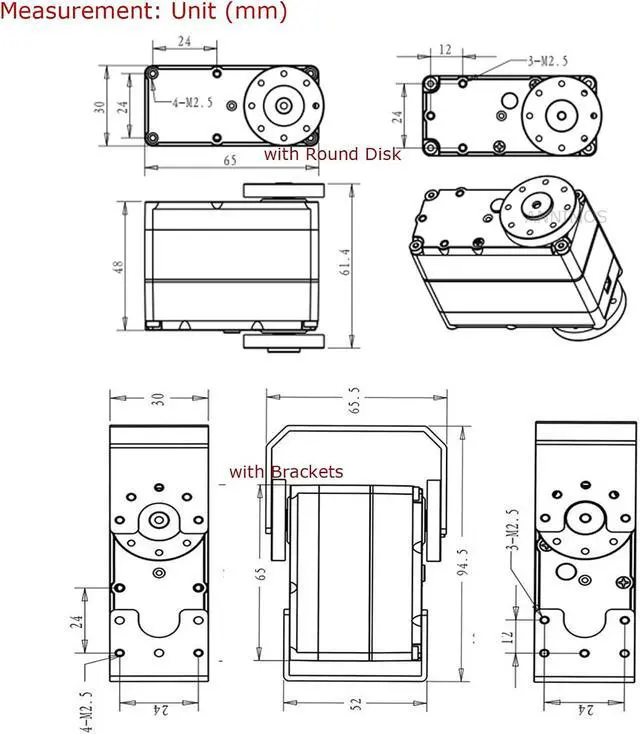

Size: 2.55 x 1.18 x 1.88 inch65 x 30 x 48mm
Weight: 5.75 oz (163g)
CE /RoHs: Yes

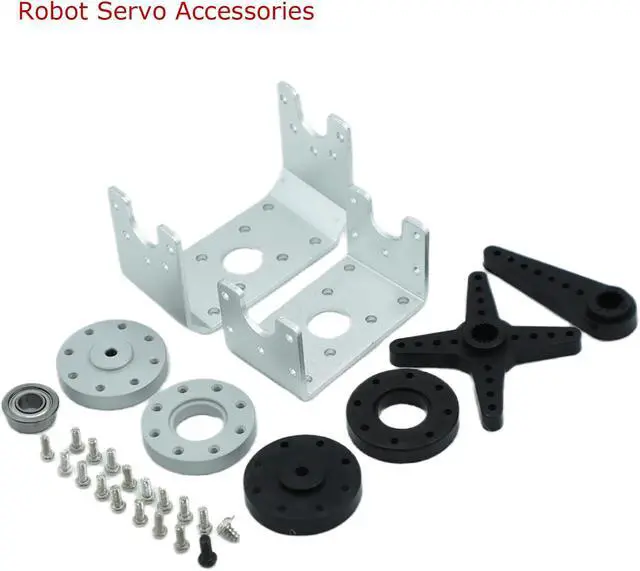

Packing List:
1 x RDS51150SG 150kg Robot Servo (270°)
2 x U-Shaped Aluminum Holders
2 x Aluminum Circle Discs
One Set of Plastic Accessories (As Shown on The Picture)
RC Rigs: Durable, Responsive, Strong Anti-interference Ability, Low Noise, Fast Heat Dissipation. Precision Control, Angle Range from 0 to 270 Degrees. Can be Rotated within 360 Degrees when Power Off. Power Wire is longer Enough Up to 45mm. Free U-Brackets & Accessories.
Satisfied Customer Service: We Are Specialized in Developing and Manufacturing Robot & RC Servo, We Offer Value Price for Bulk Order. If Any Problem with Your Servo or Anything We Can Help, Please Do Not Hesitate to Contact with Us, We Will Try Our Best to Solve it Efficiently.
Electrical Specification
Operating voltage range: 9- 12.6 Volts
Operating speed at no load (
10V ): 0.24 sec/60°
Operating speed at no load (
12V ): 0.21 sec/60°
Operating speed at no load (
12.6V ): 0.19 sec/60°
Stall torque at locked (
10V ): 150kg. cm(2083oz-in)
Stall torque at locked (
12V ): 165kg. cm( 2291.4 oz-in)
Stall torque at locked (
12.6V ): 173kg. cm( 2402.5 oz-in)
Stall current at locked (
10V ): 7.4A
Stall current at locked (
12V ): 8.0A
Stall current at locked (
12.6V ): 8.3A
Idle current at stopped (10/12/ 12.6V ): 4/5/6mA
Control Specification:
Control System: PWM (Pulse width modification)
Pulse width range: 500-2500sec
Neutral position: 1500sec
Running degree: 270° (when 500-2500sec)
Dead band width: 3sec
Operating frequency: 50-330Hz
Rotating direction: Counterclockwise (When 1500-2500sec)
Product Specification:
Motor Type3-pole (s)
Gear Type: Steel Gear
Spline: 18 Tooth
Gear ratio: 357
BearingDouble Bearing
Connector Wire: 17.7 in (450mm)
Size: 2.55 x 1.18 x 1.88 inch65 x 30 x 48mm
Weight: 5.75 oz (163g)
CE /RoHs: Yes
Packing List:
1 x RDS51150SG 150kg Robot Servo (270°)
2 x U-Shaped Aluminum Holders
2 x Aluminum Circle Discs
One Set of Plastic Accessories (As Shown on The Picture)
