Electric Magnetic Lock with Z and L Bracket 500KG 1200LBS Holding Force Electromagnet Lock 12V Fail Safe NC Mode Single Door for Access Control System (1200Lbs with Z and L Bracket)
- Materials: Stainless steel, Anti-residual magnesium designed. This magnetic door lock provides a strong sense of security with its outstanding holding force500KG (1200LBS) and significant features.
- Size: The lock size is 10.43'' x 2.95'' x 1.54'' (265x75x39mm); Armature plate: 7.28'' x 2.36'' x 0.51'' (185x60x13mm). Holding Force: 500kg (1200lbs).
- Mode: NC Mode, Locked whilst power supply is operating, unlocked when power off; Fail-Safe Mode. Voltage: DC12V.
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Security protection: This electric magnetic lock has safety function. It is built in voltage spike suppressor.
Wide Applications: This magnetic door lock is suitable for Wooden Door, Glass Door, Metal Door, Fire Proof Door, Cabinet, etc.
Item Value
Product Name Electric Magnetic Lock with Z and L Bracket 500KG
Lock Size 10.43L x 2.95W x 1.54H (in) / 265L x 75W x 39H (mm)
Armature Plate Dimension 7.28L x 2.36W x 0.51H (in) / 185L x 60W x 13H (mm)
Holding Force 500kg /1200lbs
Input Voltage DC12V
Current 480mA
Surface Temp +20
Operating Temp -10~+55(14-131F)
Humidity 0~90%(non-condensing)
Material Aluminum alloy
Security Type Fail Safe
Application Wooden/steel/metal/glass door
Weight 4.2KG
Single package size 10.43L x 2.95W x 1.54H (in) / 265L x 75W x 39H (mm)
Single gross weight 4.2KG

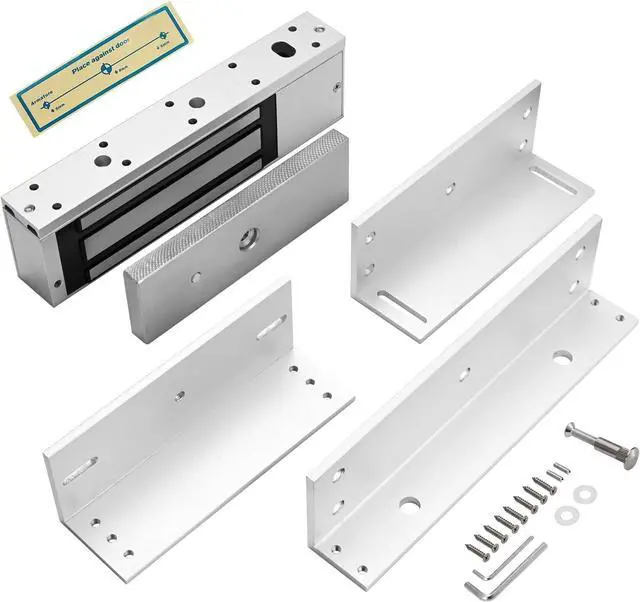

Package list:
1 * Electromagnetic Lock
1 * Armature Plate
2 * Screws Pack
1 * User Manual (English)

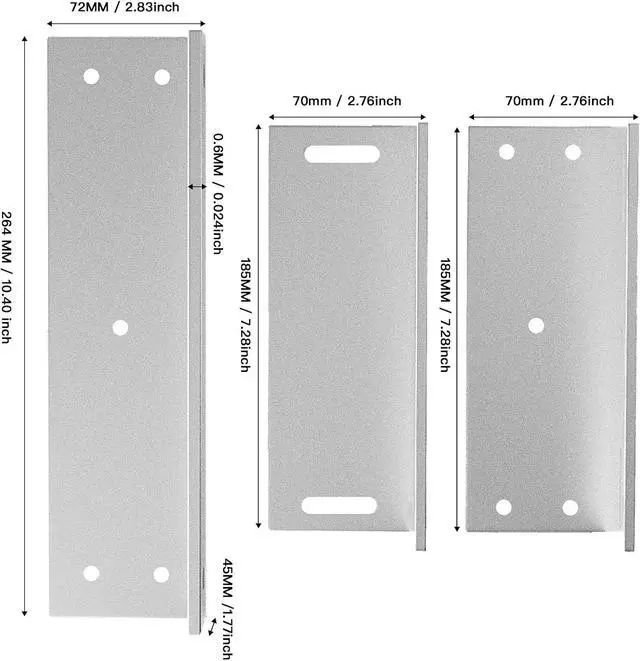

2 * "Z" Style Bracket
1 * "L" Style Bracket

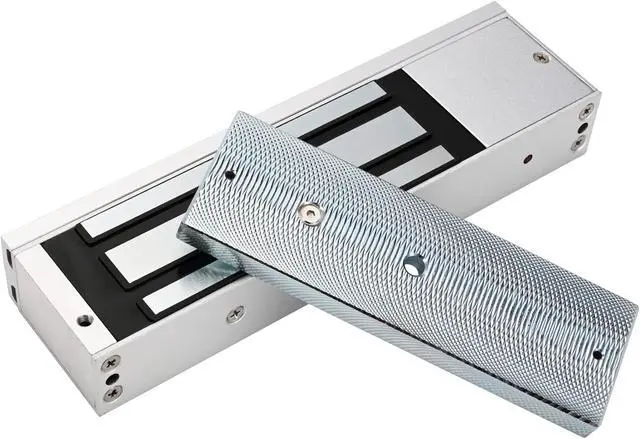

This electric magnetic lock consists of an electromagnet and an armature plate used for access control door locks.

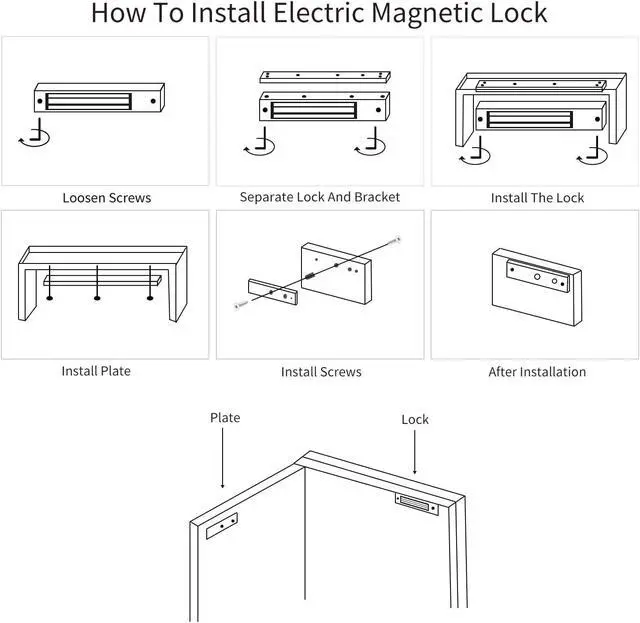

By attaching this to the door frame and the armature plate to the door, a current passing through the electromagnet attracts the armature plate, holding the access control door lock shut.
The door will be closed when power is on; when power off, the door will open.
It is suitable for wooden door, glass door, metal door, fire-proof door, Cabinet, etc
Wide Applications: This magnetic door lock is suitable for Wooden Door, Glass Door, Metal Door, Fire Proof Door, Cabinet, etc.
Item Value
Product Name Electric Magnetic Lock with Z and L Bracket 500KG
Lock Size 10.43L x 2.95W x 1.54H (in) / 265L x 75W x 39H (mm)
Armature Plate Dimension 7.28L x 2.36W x 0.51H (in) / 185L x 60W x 13H (mm)
Holding Force 500kg /1200lbs
Input Voltage DC12V
Current 480mA
Surface Temp +20
Operating Temp -10~+55(14-131F)
Humidity 0~90%(non-condensing)
Material Aluminum alloy
Security Type Fail Safe
Application Wooden/steel/metal/glass door
Weight 4.2KG
Single package size 10.43L x 2.95W x 1.54H (in) / 265L x 75W x 39H (mm)
Single gross weight 4.2KG
Package list:
1 * Electromagnetic Lock
1 * Armature Plate
2 * Screws Pack
1 * User Manual (English)
2 * "Z" Style Bracket
1 * "L" Style Bracket
This electric magnetic lock consists of an electromagnet and an armature plate used for access control door locks.
By attaching this to the door frame and the armature plate to the door, a current passing through the electromagnet attracts the armature plate, holding the access control door lock shut.
The door will be closed when power is on; when power off, the door will open.
It is suitable for wooden door, glass door, metal door, fire-proof door, Cabinet, etc
