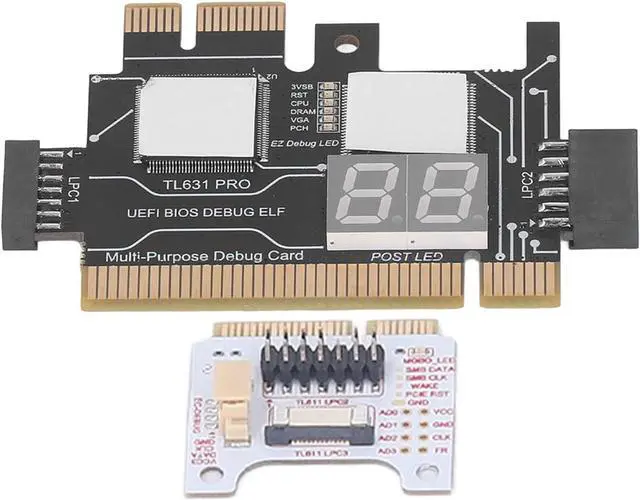

Motherboard Test Card Kit Post Test Analyzer for Laptop and PC Motherboard Diagnostic Adapter Card

Simple and Easy to
Use: Motherboard analyzer diagnostic card has high recognition rate, automatic recognition of power module.

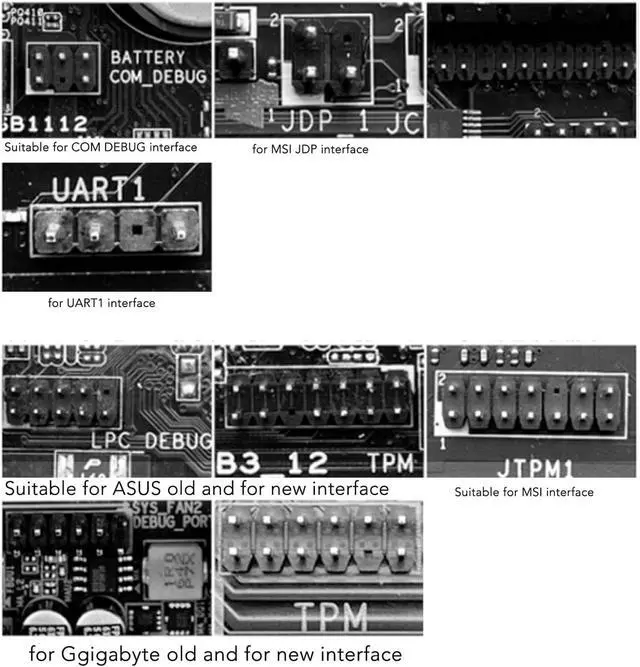

Suitable Items: Motherboard analyzer diagnostic card kit is suitable for, for Ggigabyte, for, for ASRock, etc.

Features
Kit Contents: Laptop motherboard analyzer card kit has 1 diagnostic card, 1 connecting wire, 1 terminal, 1 adapter card, 1 terminal wire, 2 flat cable.
Compatible Ability: The laptop motherboard analyzer card supports PCI E, mini PCI E, LPC. All PCI slots are supported.
Simple and Easy to Use: Motherboard analyzer diagnostic card has high recognition rate, automatic recognition of power module.
Suitable Items: Motherboard analyzer diagnostic card kit is suitable for, for Ggigabyte, for, for ASRock, etc.
Versatile: Motherboard analyzer diagnostic card can detect multi channel and multi LED indicators, and can display the status of power supply, motherboard, PCUs, memory, video card and hard disk.
Instructions for use:

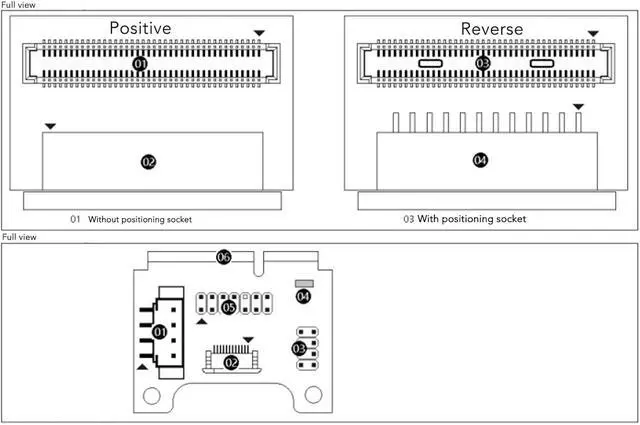

The non positioning socket of the conversion card is inserted into the non positioning plug, and the positioning socket is inserted into the positioning plug. If it is inserted incorrectly, the interface will be broken.

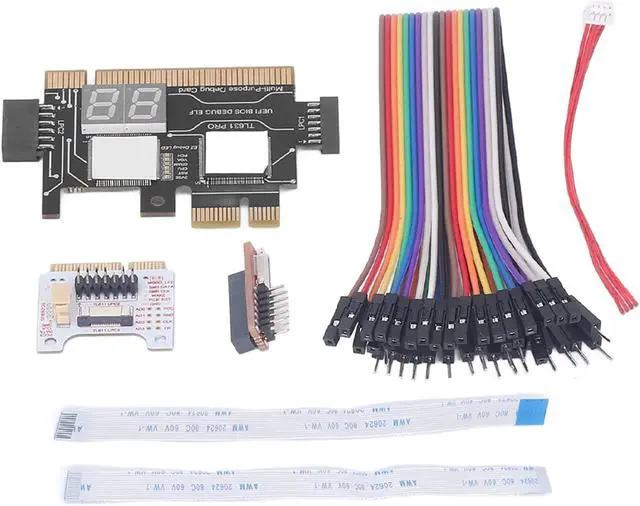

Package List
1 x Diagnostic Card
1 x Connecting Wire
1 x Terminal
1 x Adapter Card
1 x Terminal Wire
2 x Flat Cable
Specification
Item Type: Post Test Motherboard Analyzer Diagnostic Card
Color: Black
Interface: PCI E, LPC
Support: For, for Ggigabyte, for, for ASRock, etc.

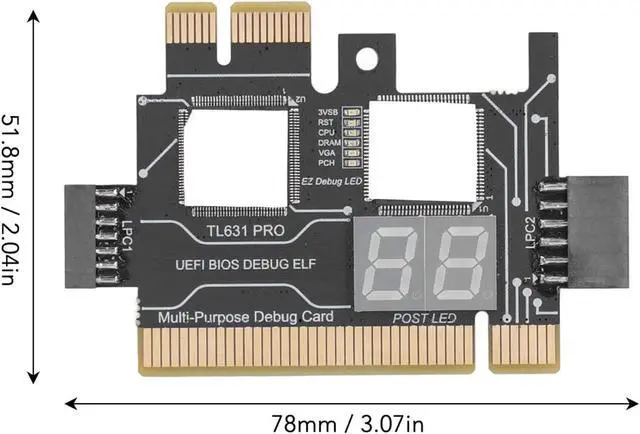

Size: 78 x 51.8 mm / 3.07 x 2.04 in

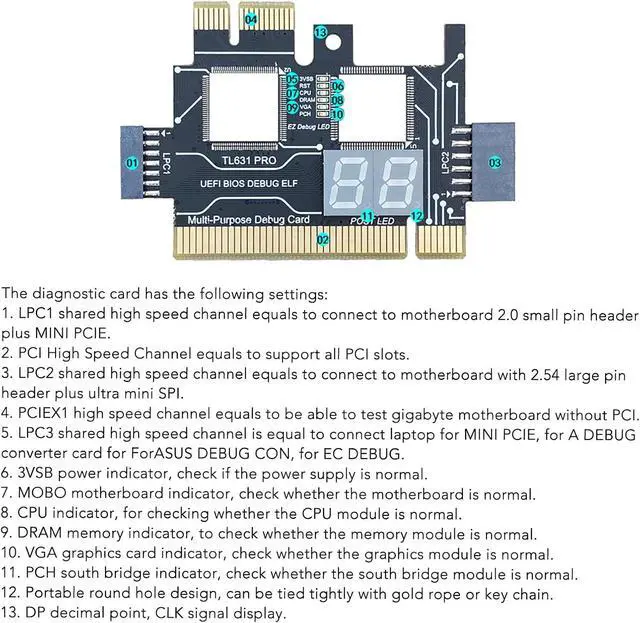

The diagnostic card has the following settings:
1. LPC1 shared high speed channel equals to connect to motherboard 2.0 small pin header plus MINI PCIE.
2. PCI High Speed Channel equals to support all PCI slots.
3. LPC2 shared high speed channel equals to connect to motherboard with 2.54 large pin header plus ultra mini SPI.
4. PCIEX1 high speed channel equals to be able to test gigabyte motherboard without PCI.
5. LPC3 shared high speed channel is equal to connect laptop for MINI PCIE, for A DEBUG converter card for For DEBUG CON, for EC DEBUG.
6. 3VSB power indicator, check if the power supply is normal.
7. MOBO motherboard indicator, check whether the motherboard is normal.
8. CPU indicator, for checking whether the CPU module is normal.
9. DRAM memory indicator, to check whether the memory module is normal.
10. VGA graphics card indicator, check whether the graphics module is normal.
11. PCH south bridge indicator, check whether the south bridge module is normal.

12. Portable round hole design, can be tied tightly with gold rope or key chain.
13. DP decimal point, CLK display.
