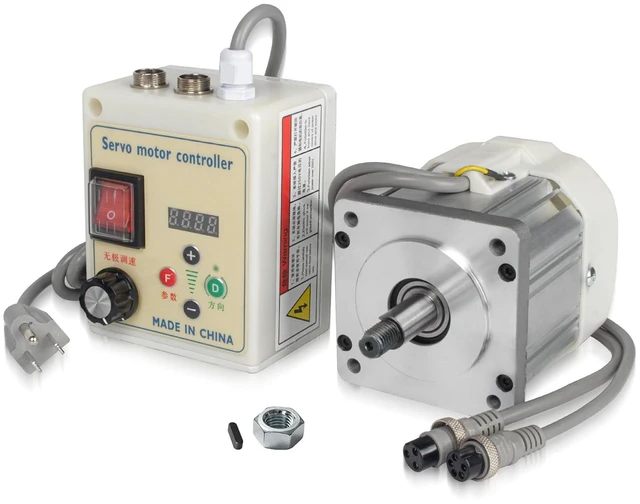

1HP 750W Brushless Servo Motor Driver CNC Kit, CW/CCW

Be the first to review this product...

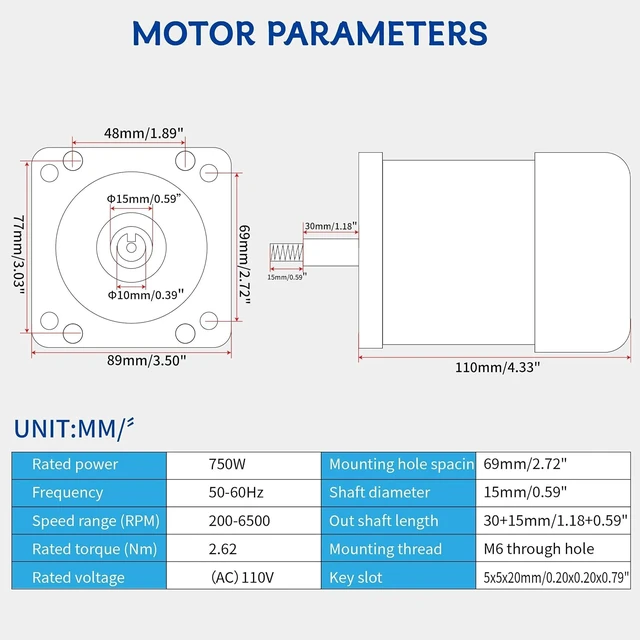

Specification of 750W servo motor: This 110V AC permanent magnet brushless servo motor features 2.62N.m rated torque, 200-6500RPM stepless adjustable speed range, and 8-pole pair design for stable low-speed power output. Constructed with Class F insulation winding, it maintains over 72 hours of continuous stable operation under heavy load, and is fully compatible with 110V AC 60Hz power input;The motor comes with matching Hex Nut and Shaft key
Compact size and easy installation: Adopts 69mm/2.71inch universal mounting size, 89mm/3.50inch mounting flange, 110mm/4.33inch body length, 15mm/0.59inch output shaft diameter, 10mm/0.39inch thread shaft diameter, 30mm+15mm/1.18+0.59inch output shaft length, M6 through-hole mounting threads and 5x5x20mm/0.2x0.2x0.79inch standard keyway; the threaded shaft fits synchronous pulleys, V-belt pulleys and ER special collets, no extra modification needed for most small machinery

Overview

Specs

Reviews

Any questions? Ask Celeste^SM will help you find out quickly.

Try me now

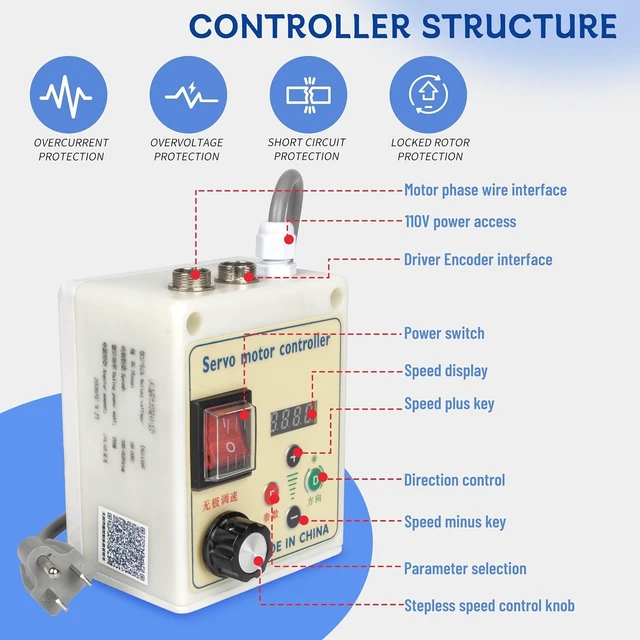

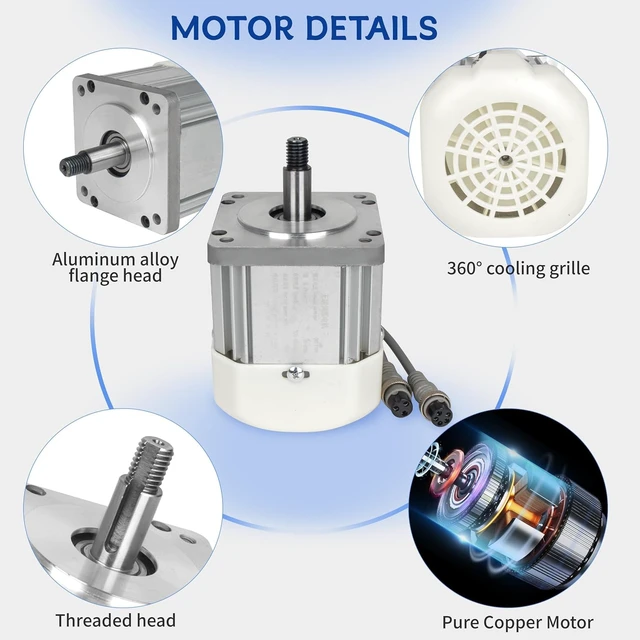

Durability & Multi-Protection mode: Built with high-strength aluminum alloy head and pure copper winding, it features 360° grille air outlet for efficient heat dissipation, built-in filter for strong anti-interference ability and low operating noise; integrated 4-layer protection mode, including overcurrent, overvoltage, short circuit and locked rotor protection, effectively avoiding equipment damage from overload or abnormal operation

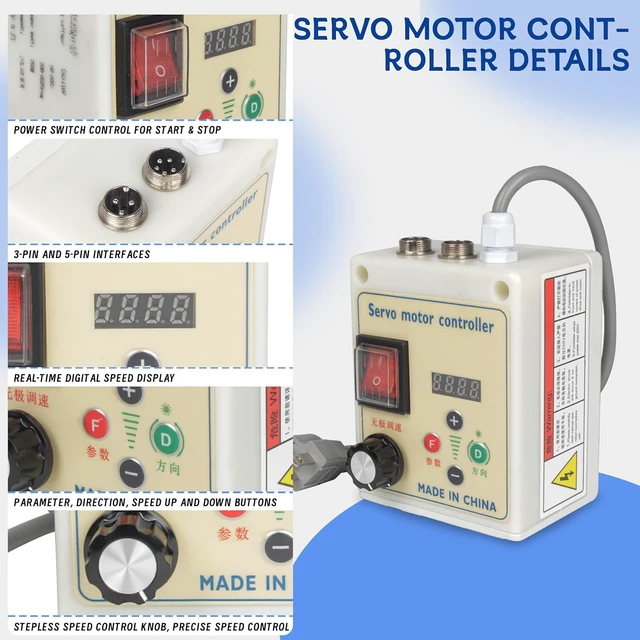

Multi Functional Controller: with intuitive control panel & real-time digital display, one-key CW/CCW rotation switching, adjustable soft startop, knob start & speed regulation, and speed/parameter adjustment via +/- keys. Enables switching to multiple start modes via programmable mode, allowing adjustment of start speed, acceleration, braking enable, stop time, reverse speed and max current limit, simple 5-step parameter setting, F key error recovery function and one-key factory reset
Widely Applications: This all-in-one servo motor kit is very suitable for belt sander, polishing machine, small lathe, milling machine, drilling & tapping machine, woodworking machinery, industrial sewing machine, CNC engraving machine, packaging equipment and robot system etc; it supports foot pedal control, ideal for professional equipment maintenance, performance upgrade and industrial automation projects
