Ideal Electrical 61-535 Digital Circuit Breaker Finder with Digital Receiver and GFCI Circuit Tester

Built-In Work Light: Flashlight in receiver operates independently of the tester functions and can be used to illuminate work area

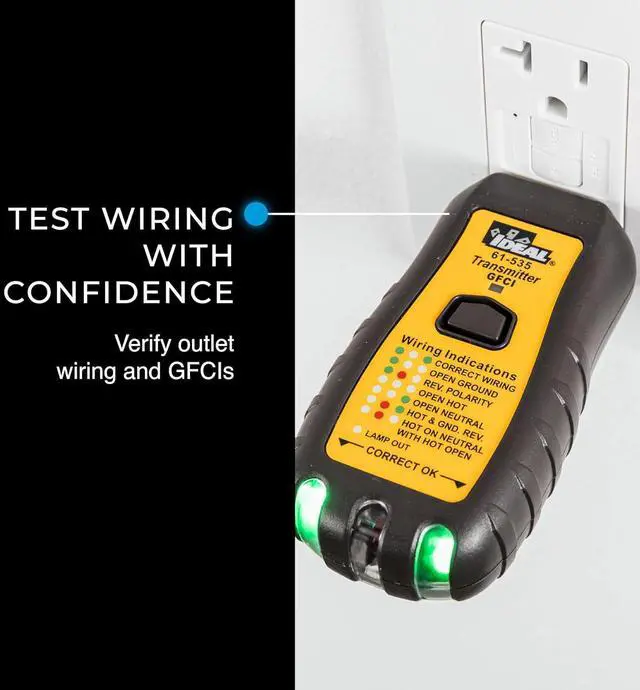

Outlet Wiring and GFCI Testing: Transmitter tests outlet wiring configurations (indicated via green/red LEDs) and tests GFCIs, receiver powers off automatically after 5-minutes of non-use to conserve battery life

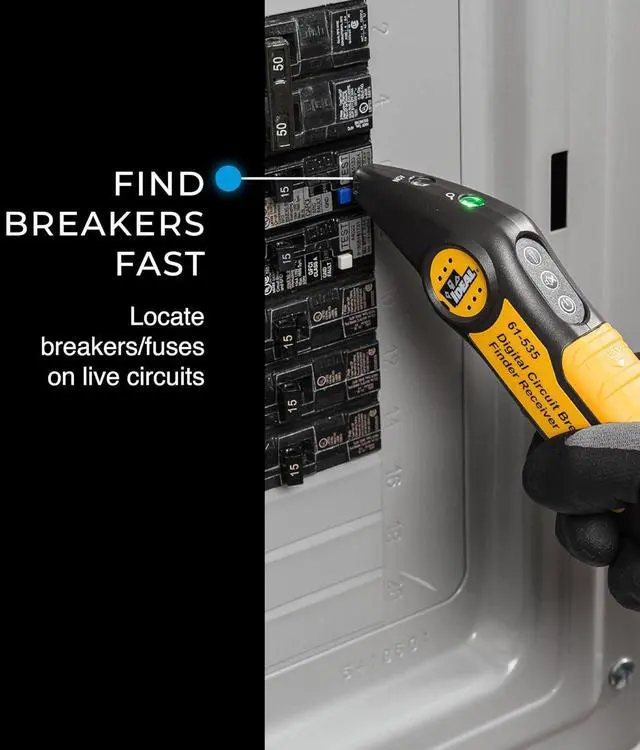

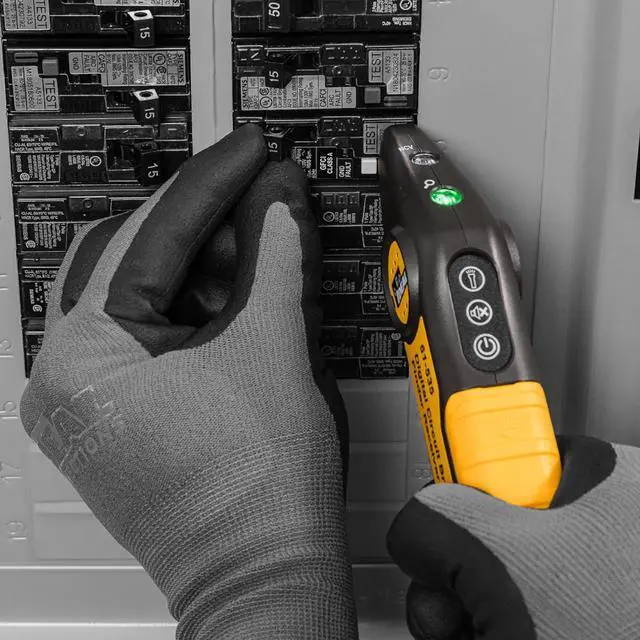

Dual Component System: Includes both a transmitter that sends signals over conductors and a receiver that identifies the breaker/fuse with the strongest signal through flashing LED and audible beeps
Mute Function for Quiet Environments: Audible tone for both breaker finding mode and NCV mode can be muted via button for working in noise sensitive areas

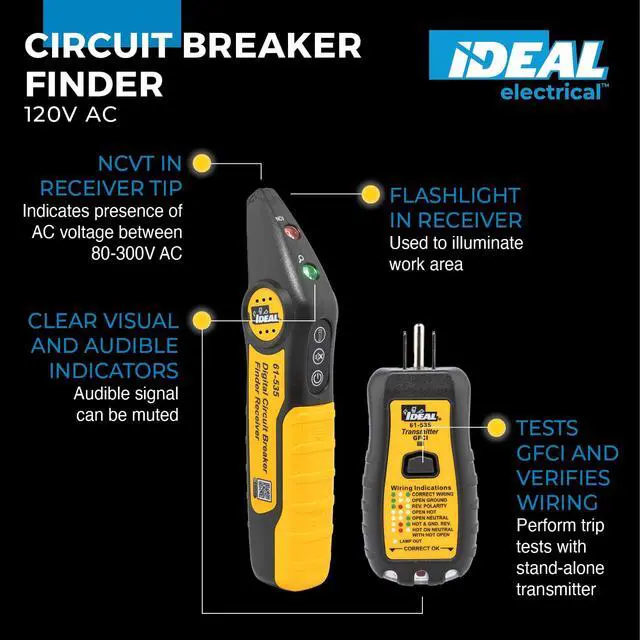

The IDEAL 61-535 is a 120-Volt AC circuit breaker finder that automatically identifies a circuit breaker/fuse protecting a live branch circuit. It consists of a transmitter and a receiver. The transmitter sends a signal over the conductors when connected to an energized circuit. It also identifies the presence of power and indicates corrector/incorrect wiring conditions via illuminated green and red LED's and contains a GFCI trip tester. The receiver reads the transmitter's signal and identifies the breaker/fuse energizing the circuit by illuminating a flashing green LED and emitting beeps once it determines the breaker/fuse with the strongest signal. The receiver also senses the presence of AC voltage (80-Volt to 300-Volt AC) via and non-contact voltage (NCV) sensor in the tip. The receiver indicates the presence of AC voltage by illuminating a red flashing LED and emitting a beeping sound. The audible tone for both the breaker finding mode and the NCV mode can be muted via a button for working in noise sensitive areas. The receiver also includes a work light that can be operated independently for work in poorly lit conditions.
