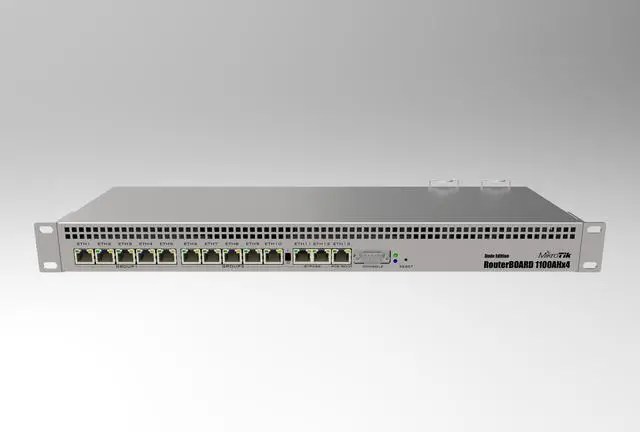

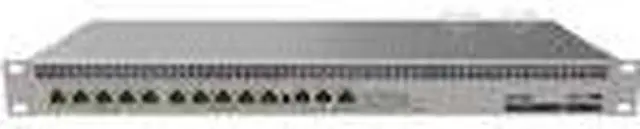

MikroTik - RB1100DX4 - RB1100AHx4 Dude Edition with Annapurna Alpine AL21400 Cortex A15 CPU, 1GB RAM, 13x Gbit LAN, 60GB

The new RB1100AHx4 Dude Edition uses a new quad core Cortex A15 chip from Annapurna labs, an Amazon company. The chip is clocked at 1.4GH z, for a maximum throughput of up to 7.5G bit. Unit features several high speed storage connectors (two SATA and two M. 2) for using a Dude database, proxy cache or any other storage intensive feature. It includes a 60GB M. 2 drive and comes with Dude package already installed to work out-of-the box. The RB1100AHx4 Dude Edition supports IPsec hardware acceleration and is faster at it than any previous RouterBOARD device.

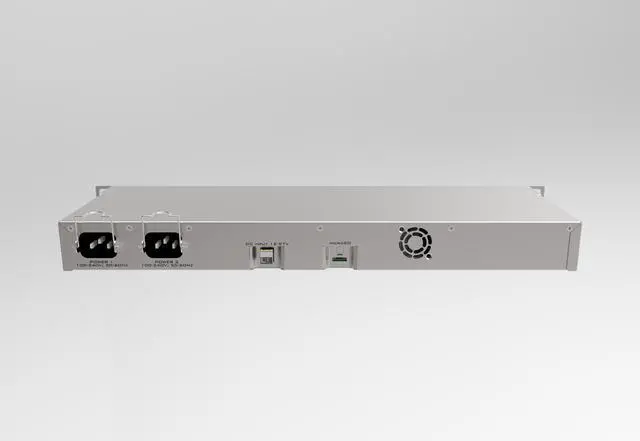

Unit features two IEC failover power connectors, supports passive or 802.3 at/af PoE input and has a DC telecom power connector for -48V DC powering. It uses passive cooling and is absolutely quiet.
KEY FEATURES: AL21400 1.4 GHz CPU, 1 GB RAM (13) Gigabit, (2) SATA, (2) M. 2 Slots RouterOS L6 PoE, PSU
Product

Specifications

:
Architecture: ARM 32bit
CPU: AL21400
CPU core count: 4
CPU nominal frequency: 1.4
GHz Dimensions: 443 x 148 x 44 mm
RouterOS license: 6
Operating System: RouterOS
Size of RAM: 1 GB
Storage size: 128 MB
Storage type: NAND
MTBF: Approximately 200'000 hours at 25C
Tested ambient temperature: -40°C to 70°C
IPsec hardware acceleration: Yes Number of
AC inputs: 2 AC input range 100-240 Number of
DC inputs: 2 (2-pin terminal, PoE-IN) 2-pin terminal input
Voltage: -48, 12-57
V Max power consumption: 20
W Cooling type: Passive
PoE in: 802.3 af/at PoE in input
Voltage: 20-57 V
Memory card type: microSD
Memory Cards: 1
Serial console port: RS232
Certification: CE, EAC,
ROHS IP: IP20
Product Includes: (1) K10 Screw Kit (1) Set of Rack Ears (2) IEC Cords
