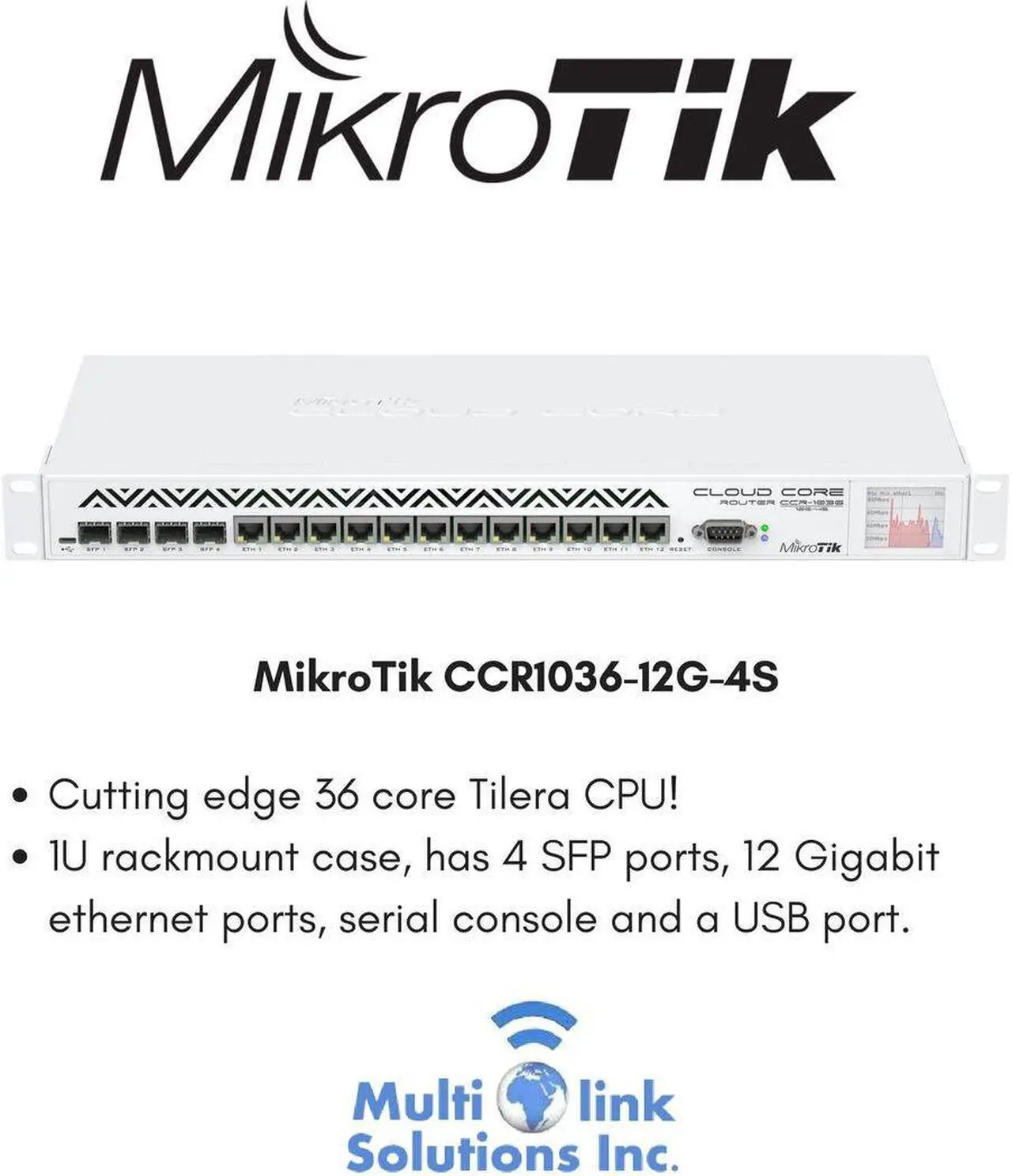

Main image of MikroTik CCR1036-12G-4S Cloud Core Router 12xGbit LAN, 4xSFP, Rack-Mount

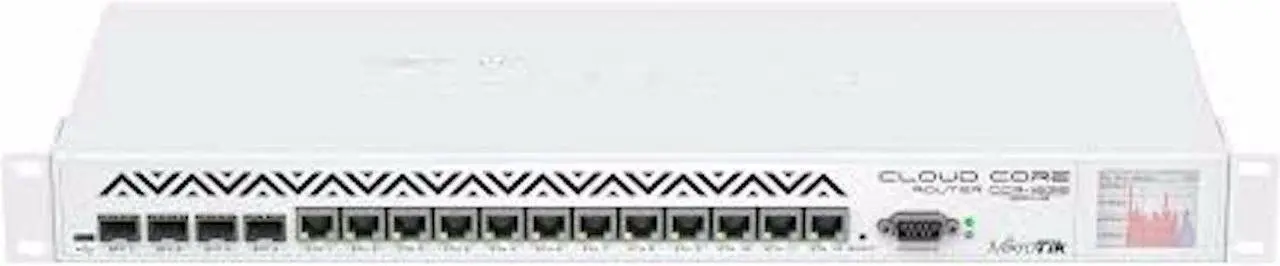

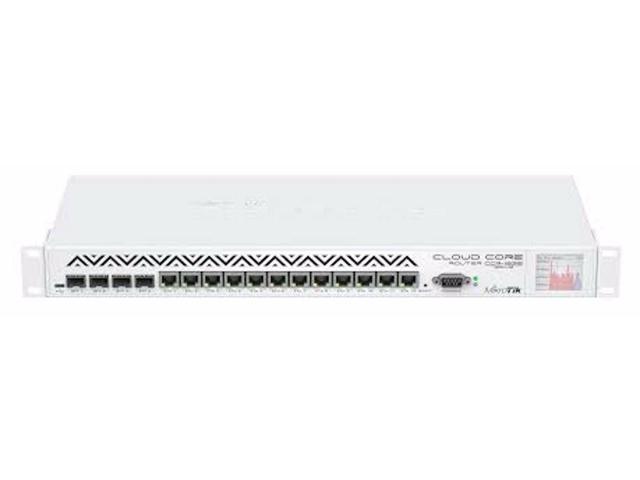

Alt view image 2 of 2 - MikroTik CCR1036-12G-4S Cloud Core Router 12xGbit LAN, 4xSFP, Rack-Mount

Shop All Mikrotik Products | Visit B-IN Electronics Store

MikroTik CCR1036-12G-4S Cloud Core Router 12xGbit LAN, 4xSFP, Rack-Mount

CCR1036-12G-4S is an carrier grade router with a cutting edge 36 core Tilera CPU! Unprecedented power and unbeatable performance - this is our new flagship device. Over 20 times faster than our previous top model, the Cloud Core supports throughput of up to 24 million packets per second, or up to 16 gigabits - full wire speed.
The device comes in a 1U rackmount case, has four SFP ports, twelve Gigabit ethernet ports, serial console and a USB port. A color touchscreen displays device status, traffic graphs, or provide access to simple configuration options.
It has two SODIMM slots, by default it is shipped with 4GB of RAM, but has no memory limit in RouterOS, so will accept and utilize 16GB or more. It comes with power supply and 1U rackmount case.

Overview

Specs

Reviews

The cloud core router is powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring - just a few of the vast number of features supported by RouterOS.

Tested and recommended to use with MikroTik SFP modules: S-85DLC05D, S-31DLC20D and S-35/53LC20D (not included)
Product specifications

Details

Product code CCR1036-12G-4S
CPU nominal frequency 1.2 GHz
SFP DDMI Yes
CPU core count 36
Size of RAM 4 GB
Architecture TILE
10/100/1000 Ethernet ports 12
Number of USB ports 1
Power Jack 1
Supported input voltage 13 V - 30 V
Voltage Monitor Yes
CPU temperature monitor Yes
PCB temperature monitor Yes
Dimensions 355x145x44mm
Operating System RouterOS v6 (64bit)
Tested ambient temperature -20C.. +60C
License level 6
Current Monitor Yes
CPU TLR4-03680CG-12CE-A3b
Max Power consumption 69W
SFP ports 4
USB slot type microUSB type AB
Serial port RS232
Storage type NAND
Storage size 1 GB
Ethernet test results
CCR1036-12G-4S Tile 36 core max possible throughput test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 1300.4 15792.1 3759.4 15398.5 28808.0 14749.7
Bridging 25 bridge filter rules 1300.4 15792.1 3760.4 15402.6 5163.5 2643.7
Routing none (fast path) 1300.4 15792.1 3762.4 15410.8 28808.0 14749.7
Routing 25 simple queues 1300.4 15792.1 3762.4 15410.8 7643.1 3913.3
Routing 25 ip filter rules 1300.4 15792.1 3033.9 12426.9 3049.7 1561.4
