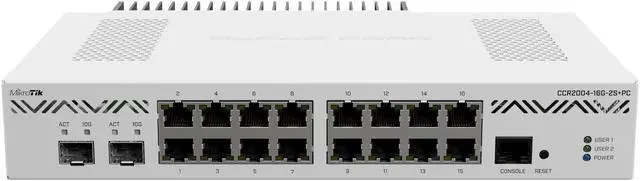

MikroTik Cloud Core Router 1.2GHZ CPU4GBof DDR4 RAM,128MB NAND,16X Gigabit Ethernet Ports ,2xSFP+ 4GB 16xGb - CCR2004-16G-2S+PC
- Like the other models in CCR2004 series, this CCR also features the Amazon Annapurna Labs Alpine v2 CPU with 4x 64-bit ARMv8-A Cortex-A57 cores. While this CPU is running at 1.2 GHz, the router can be 3x as fast than the previous generation CCRs. This is the silent powerhouse. Enjoy all the power of a real CCR in peace and quiet. Get rid of all the hum and buzz in your office, studio, server room or homelab without sacrificing the performance!
- The new router has 18 wired ports, including 16x Gigabit Ethernet ports and two 10G SFP+ cages. It also has a RJ-45 console port on the front panel. Each group of 8 Gigabit Ethernet ports is connected to a separate Marvell Amethyst family switch-chip. Each switch chip has a 10 Gbps full-duplex line connected to the CPU. The same goes for each SFP+ cage - a separate 10 Gbps full-duplex line. Boards come with 4GB of DDR4 RAM and 128MB of NAND storage.
+
+
Overview
Specs
Reviews
See all Q & A
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
Product code CCR2004-16G-2S+PC
CPU AL32400 1.2 GHz
CPU architecture ARM 64bit
CPU core count 4
Size of RAM 4 GB
RAM type DDR4
Storage 128 MB, NAND
Number of 1G Ethernet ports 16
Number of 10G SFP+ ports 2
Operating system RouterOS v7, License level 6
Switch chip model 88E6191X
Number of Gbit ports in switch 8
Dimensions 272 x 195 x 44 mm
Operating temperature -20°C to +60°C
Powering
Number of DC inputs 2
Supported input voltage 36-57 V (DC jack) 36-57 (2-pin terminal)
Power adapter nominal voltage 48 V
Power adapter nominal current 0.9 A
Max power consumption (without attachments) 30 W
Max power consumption 36 W
Certification & Approvals
Certification CE, FCC, IC
