Ports 0-7 can be configured for line-rate Layer 2 switching
2 x Gigabit SFP ports
3.4 million packets per second for 64-byte packets
6.8 Gbps for packets 1518 bytes or larger in size
Silent, fanless operation
Compact, durable metal case
Overview
Specs
Reviews (2)
Any questions? Our AI beta will help you find out quickly.
Try me now
Advanced Routing Technology for the Masses Ubiquiti Networks introduces three new routers for the EdgeMAX® platform: EdgeRouter™ 4 EdgeRouter 6P EdgeRouter 12 They join the array of cost-effective Gigabit routers: 3-Port EdgeRouter Lite 5-Port EdgeRouter PoE 8-Port EdgeRouter 8-Port EdgeRouter Pro High Performance The EdgeRouter 4, 6P, and 12 are each capable of routing up to 3.4 million packets per second. The EdgeRouter and EdgeRouter Pro route up to 2 million+ packets per second, and the EdgeRouter Lite and EdgeRouter PoE route up to 1 million packets per second. PoE Flexibility The EdgeRouter 6P and PoE include configurable PoE ports to power airMAX® products, and the EdgeRouter 12 has a PoE input port and a PoE passthrough port. Fiber Connectivity For fiber uplinking, the EdgeRouter 4 and EdgeRouter 6P provide an SFP port. The EdgeRouter 12 features dual SFP ports, while the EdgeRouter offers two combination RJ45/SFP ports. EdgeRouters combine carrier-class reliability with enterprise-level features in a compact and affordable unit. Manage Your Network DHCP Server Set up multiple DHCP servers to assign IP ranges in different subnets on the different interfaces. Easily control dynamic and static IP addressing for your network devices. Monitoring Tools Conveniently track network activity and devices from tools such as Ping, Trace, Discover, Packet Capture, and Log Monitor.
Secure Your Network Firewall Policies Organize the rules you apply in the order you specify. Firewall Groups Apply the policies to groups filtered by IP address, network address, or port number. NAT Rules The EdgeRouter changes packet addressing based on your customized source and destination NAT rules. Direct Traffic Flow Interfaces Each port functions as an independent interface. You can also configure Virtual Local Area Network (VLAN) interfaces for network segmentation. Routing Configure static routes and dynamic routing protocols to effectively manage the routes used by the EdgeRouter. Software Intuitive User Interface The EdgeRouter provides a graphical user interface designed for convenient setup and control. Easily configure the routing, security, and management features required to efficiently run your network. For advanced network professionals, an integrated CLI is available for quick and direct access using familiar commands. Even greater convenience and flexibility is provided by the UNMS™ app, which makes it possible to manage the EdgeRouter remotely from your mobile device. Powerful Features EdgeOS® is a sophisticated operating system loaded with robust features, including: VLAN interfaces for network segmentation Static routes and support of routing protocols: OSPF, RIP, BGP, and MPLS Firewall policies and NAT rules Application identification with Deep Packet Inspection (DPI) DHCP services Quality of Service (QoS) Network administration and monitoring tools Administrator and operator accounts Comprehensive IPv6 support Package Contents: EdgeRouter ER-12 Router External AC Power Adapter, 24W (24V, 1A) Product Type: Router Product Type: Router Manufacturer Part Number: ER-12 Limited Warranty: 1 Year Weight (Approximate): 1.54 lb Form Factor: Rack-mountable Form Factor: Desktop Network Technology: 1000Base-X Network Technology: 1000Base-T Form Factor: Rack-mountable Form Factor: Desktop Manufacturer: Ubiquiti Networks, Inc Product Model: ER-12 Product Name: EdgeRouter ER-12 Router Network Technology: 1000Base-X Network Technology: 1000Base-T Product Line: EdgeRouter Brand Name: Ubiquiti Brand Name: Ubiquiti Height: 1.2 Width: 10.6 Depth: 5.4 Ethernet Technology: Gigabit Ethernet Number of Total Expansion Slots: 2 Product Family: EdgeRouter Total Number of Ports: 10 Redundant Power Supply Supported: No TAA Compliant: No Compatible Rack Unit: 1U Ethernet Technology: Gigabit Ethernet Number of Total Expansion Slots: 2 Management Port: Yes Total Number of Ports: 10 PoE (RJ-45) Port: Yes Redundant Power Supply

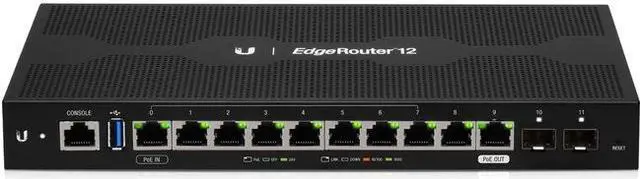

Ubiquiti Networks EdgeRouter 12
The EdgeRouter 12 offers next-generation price/performance value. It has 10 Gigabit Ethernet ports for copper connectivity and two SFP ports for fiber connectivity, with support for PoE input on port 1 and PoE passthrough on port 10. Powered by quad-core processor and 1 GB DDR3 RAM, it is capable of handling up to 3.4 million packets per second processing with a line rate of up to 6.8 Gbps. The EdgeRouter 12 supports Layer-2 switching with one internal switch. The fanless design allows quiet operation. For scalable configuration, use EdgeOS or the Ubiquiti Network Management System (UNMS). A UNMS app is also available, allowing you to manage EdgeRouter using your mobile devices.
(10) Gigabit RJ45 routing ports
24V PoE input on port 0
24V PoE passthrough option on port 9
Ports 0-7 can be configured for line-rate Layer 2 switching
(2) Gigabit SFP ports
3.4 million packets per second for 64-byte packets
6.8 Gbps for packets 1518 bytes or larger in size
Silent, fanless operation
Versatile Design
The EdgeRouter 12 can be rack-mounted with the use of the EdgeRouter Rack Mount Kit, model ER-RMKIT (sold separately).
Centralized Management
The EdgeRouter 12 is supported and managed by UNMS (Ubiquiti Network Management System), a comprehensive controller with an intuitive UI. A single control plane manages registered EdgeMAX® devices across multiple sites.

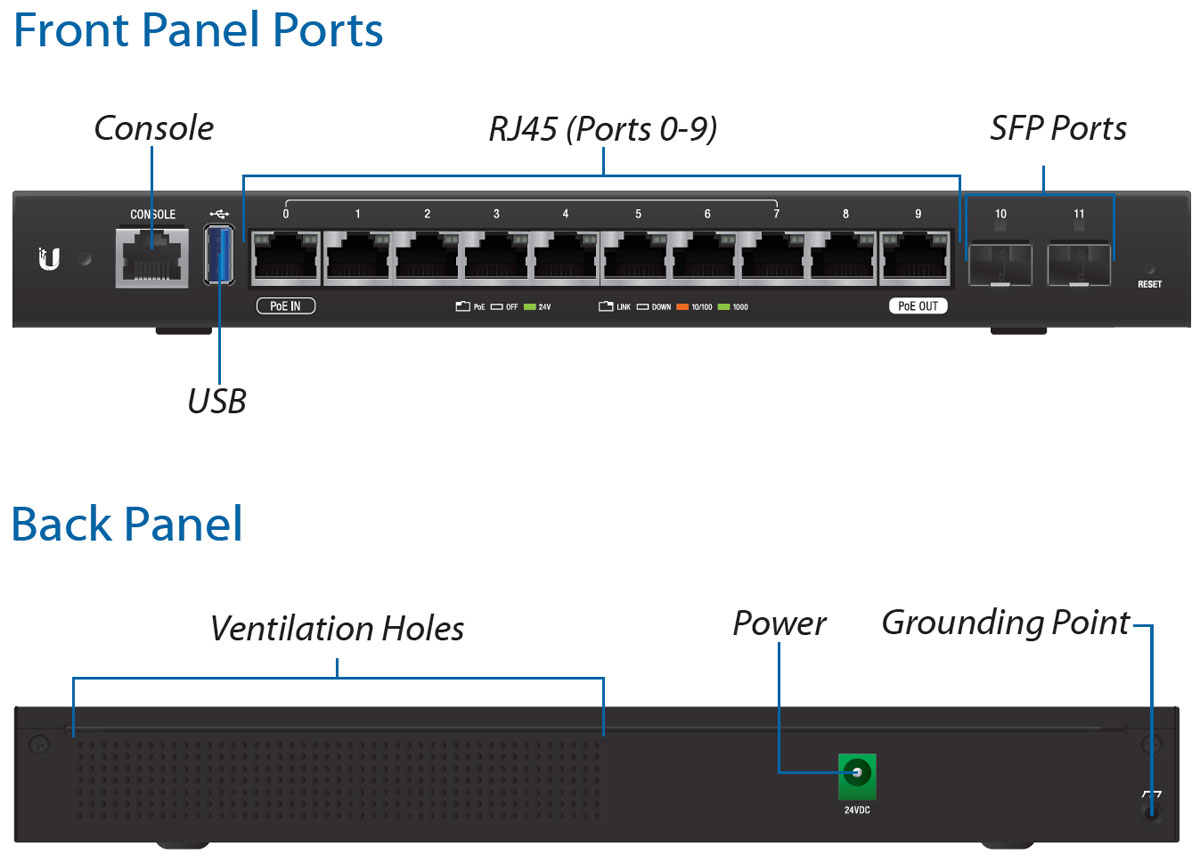

Hardware Views
Learn more about the Ubiquiti Networks ER-12
Model
Brand
Ubiquiti
Series
EdgeRouter
Model
ER-12
Features
Features
Max. Power Consumption: 20W (Excludes PoE Output)
Power Method: External AC / DC Power Adapter, 24W (24V, 1A) (Included) 24V Passive PoE
Power Supply: External AC / DC Adapter
Button: Reset
Networking Interfaces: 1 x RJ45 Serial Port 10 x Ethernet Ports (Default Port 0) 10 x 10/100/1000 RJ45 Ports 2 x 1 Gbps SFP Ports
Processor: 4-Core 1 GHz, MIPS64
System Memory: 1GB DDR3 RAM
On-Board Flash Storage: 4GB eMMC, 8MB SPI NOR
Dimensions & Weight
Dimensions
1.22" x 10.55" x 5.37"
Weight
1.54 lbs.
Packaging
Package Contents
EdgeRouter ER-12 Router External AC Power Adapter, 24W (24V, 1A)
