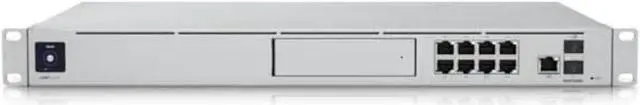

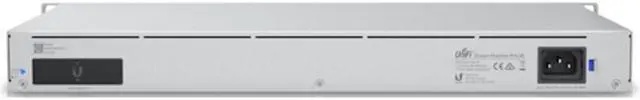

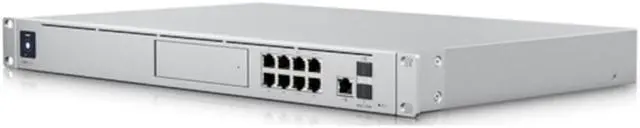

UBIQUITI UNIFI DREAM MACHINE SPECIAL ED

Ubiquiti Dream Machine Special Edition UDM-SE Router - 9 Ports - 8 RJ-45 Port (s) - 1 WAN Port (s) - PoE Ports - Management Port - 2 SFP+ Slots - 4 GB - 10 Gigabit Ethernet - Rack-mountable

Enterprise-grade, rack-mount UniFi Cloud Gateway with full UniFi application support, 10 Gbps performance, and an integrated PoE switch.


Includes full UniFi application suite for device management

3.5 + Gbps routing

Integrated 8-port PoE/PoE+ switch

(1) 10G SFP+, (8) GbE RJ45 LAN ports including (2) PoE+, and (6) PoE

(1) 10G SFP+, (1) 2.5 GbE RJ45 WAN ports

1.3 touchscreen

128 GB SSD 3.5 HDD bay


Features


Dream Machine Special Edition. All-in-one router and security gateway






Memory





Standard Memory



4 GB





Miscellaneous





Mechanical


Enclosure materials: Aluminium CNC, SGCC steel

Mount material: SGCC steel


Hardware


Processor: Quad-core ARM Cortex-A57 at 1.7 GHz

System memory: 4 GB DDR4

On-board storage: 16 GB eMMC Integrated 128 GB SSD

Management interface:


Ethernet

Bluetooth



Networking interface:

(8) LAN: GbE RJ45 ports

(1) WAN: 2.5 GbE RJ45 port

(1) LAN: 10G SFP+

(1) WAN: 10G SFP+

SFP+ interface:

PoE interface:






Additional Information








(6) PoE (Pair A 1, 2+; 3, 6-)

(2) PoE+ (Pair A 1, 2+; 3, 6-)



IDS/IPS throughput: 3.5 Gbps*: *Measured with iPerf3

Power method:

(1) Universal AC input, 100-240V AC, 4.4A Max., 50/60 Hz

(1) USP-RPS DC input, 52V DC, 3.94A

Power supply: AC/DC, internal, 240W

Supported voltage range: 100-240V AC

Max. power consumption: 50W (Excluding PoE output)

PoE: 15.4W

PoE+: 30W

PoE: 44-57V

PoE+: 50-57V

Max. PoE wattage per port by
PSE:

Voltage range PoE mode:

ESD/EMP protection: Air: 15kV, contact: 8kV

LCM display: (1) 1.3 touchscreen

Button: Factory reset

Operating temperature: -10 to 40 C (14 to 104 F)

Operating humidity: 5 to 95% noncondensing

Certifications: CE, FCC, IC






I/O Expansions





Expansion Slot Type



SFP+





Number of Total Expansion Slots



2





Power Description





Power Consumption



50 W





PoE (RJ-45) Port



Yes





Interfaces/Ports





Number of Network (RJ-45) Ports



8





Management Port



Yes





Total Number of Ports



9





Number of WAN Ports



1





Network Communication





Network Technology



10GBase-X







2.5GB ase-T







1000Base-T





Ethernet Technology



10 Gigabit Ethernet





Physical Characteristics





Weight (Approximate)



10.91 lb





Form Factor



Rack-mountable





Height



1.7





Width



17.4





Depth



11.2





General Information





Product Type



Router





Manufacturer Part Number



UDMSE





Manufacturer Website Address



http: //www. ui. com





Manufacturer



Ubiquiti Inc.





Product Model



UDM-SE





Product Name



Dream Machine Special Edition UDM-SE Router





Product Line



Dream Machine Special Edition





Brand Name



Ubiquiti
