How many site-to-site VPN tunnels can the SonicWall TZ380W support?

The SonicWall TZ380W can support up to 200 site-to-site VPN tunnels.

What is the maximum throughput for firewall inspection on the SonicWall TZ380W Firewall?

The maximum firewall inspection throughput is 3.5 Gbps.

$1,720^.00

$2,150.00

Limit 99999 per customer.

Price alert

Add to wish list

Sold by Newegg

Shipped by Newegg

Best Sellers

BeachAudio

Top Rated

4.4 (8,548 total ratings)

$1,781^.03

Volume Discounts Available

Main image of SonicWall TZ380W Firewall (Gen 8), w/ Secure Upgrade Plus (3-Year Advanced Protection Security Suite) and 1 Year CSE (3 & Free Program) | 03-SSC-7445

Alt view image 2 of 2 - SonicWall TZ380W Firewall (Gen 8), w/ Secure Upgrade Plus (3-Year Advanced Protection Security Suite) and 1 Year CSE (3 & Free Program) | 03-SSC-7445

Shop All SonicWall Products

SonicWall TZ380W Firewall (Gen 8), w/ Secure Upgrade Plus (3-Year Advanced Protection Security Suite) and 1 Year CSE (3 & Free Program) | 03-SSC-7445

Be the first to review this product...

Hardware: TZ380W

TZ380
TZ480
TZ680
TZ 280
TZ380W
TZ 580

Option: Secure Upgrade Plus (Appliance + 3Y APSS) +1Y CSE

Hardware Only
High Availability
Secure Upgrade Plus (Appliance + 2Y APSS)
Secure Upgrade Plus (Appliance + 3Y APSS) +1Y CSE
Total Secure (Appliance + 1Y APSS)

Designed for small organizations and lean branches, the TZ380 series deliver industry-validated security effectiveness with
best-in-class price-performance.
What's included: 3-years of Advanced Protection Services Suite (APSS), 1 unit of TZ 380W Gen 8 next-generation firewall and 1-year of Cloud Secure edge.
Cloud Secure Edge (CSE): Empowers organizations that consist of a variety of users to seamlessly and securely connect to both private and internet resources from any device or location.
Advanced Protection Security Suite (APSS): Includes advanced threat protection services and support, as well as powerful cloud-based centralized network management and reporting.

This item is covered under the Manufacturer Only Return Policy.

Overview

Specs

Reviews

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

03-SSC-7445 SONICWALL TZ380W SECURE UPGRADE ADVANCED EDITION 3 YR

Best Seller Ranking	#43 in Firewall & Network Security Devices

Model
Brand	SONICWALL
Series	TZ 380W
Model	TZ 380W
Part Number	03-SSC-7445

Details
Type	Wireless
Form Factor	Desktop
Standards	TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
Protocols	BGP, OSPF, RIPv1/v2, static routes, policy-based routing
Security	Deep Packet inspection services: Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, TLS Decryption Content Filtering Service (CFS): Reputation-based URL filtering, HTTP URL, HTTPS IP, keyword and content scanning, Comprehensive filtering based on file types such as ActiveX, Java, Cookies for privacy, allow/forbid lists Comprehensive Anti-Spam Service Application Visualization Application Control Capture Advanced Threat Protection Advanced DNS Filtering
System Memory	Optional: Up to 512 Gb

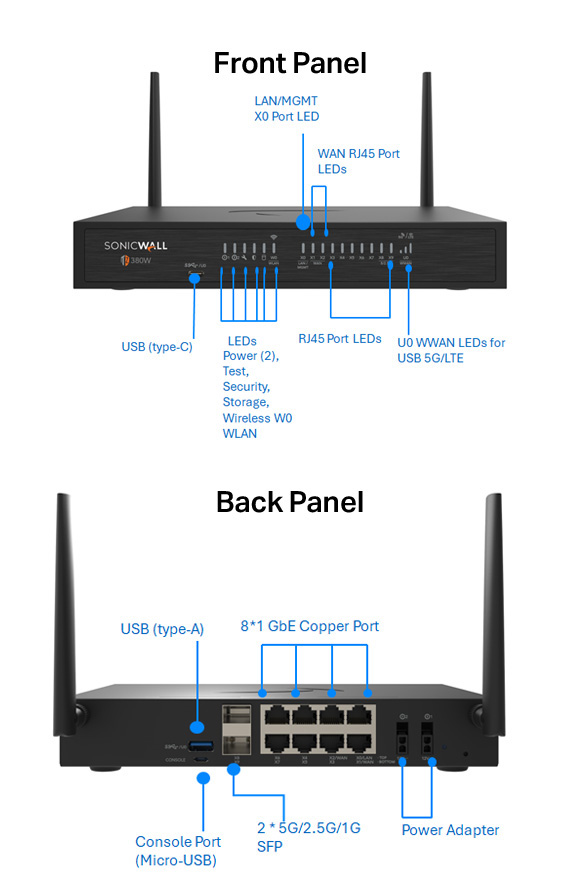

Ports	8 x 1GbE RJ45, 2 x 5G/2.5G/1G SFP
VPN	Firewall/VPN Performance Firewall inspection throughput: 3.5 Gbps Threat prevention throughput: 1.5 Gbps Application inspection throughput: 2.0 Gbps IPS throughput: 2.0 Gbps Anti-malware inspection throughput: 2.0 Gbps TLS/SSL inspection and decryption throughput: 600 Mbps IPSEC VPN throughput: 1.6 Gbps Connections per second: 15,000 Maximum connections (SPI): 1,100,000 Maximum connections (DPI): 250,000 Maximum connections (TLS): 40,000 VPN and ZTNA Site-to-site VPN tunnels: 200 IPSec VPN clients: 5(200) SSL VPN licenses (maximum): 2(100) Encryption/authentication: AES (128, 192, 256-bit)/MD5, SHA-256, SHA-384, Suite B Cryptography Key exchange: Diffie Hellman Groups 1, 2, 5, 14v Route-based VPN: RIP, OSPF, BGP Certificate support: Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-to- SonicWall VPN, SCEP VPN features: Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN Global VPN client platforms supported: Microsoft® Windows 10 and Windows 11 NetExtender: Microsoft® Windows 10 and Windows 11, Linux Mobile Connect: Apple® iOS, Mac OS X, Google® Android™ SonicWall Private Access powered by Cloud Secure Edge: Included in 3&Free Loyalty Program
Certifications	IPv6
Compliance	FCC Class B, ICES Class B, CE (EMC, LVD, RoHS), UL, cUL, Mexico DGN Notice by UL, ANATEL, WEEE, REACH, SCIP, RCM, MIC Terminal, VCCI Class B, KCC/MSIP, BSMI, MTCTE/TEC, CB
Power Input	100-240 VAC, 50-60Hz, 0.27A
Max Power Consumption	13.77W

Features
Features	General Operating system: SonicOS 8 Interfaces: 8 x 1GbE Cu, 2*5G/2.5G/1G SFP, 1 console (Micro-USB), 1 USB (type-C) Storage /(expansion): (Optional: Up to 512 Gb) Centralized Management: Network Security Manager (NSM) 3.0 and above, CLI, SSH, Web UI, REST APIs Logical VLAN and tunnel interfaces (maximum): 128 SAML Single Sign-On (SSO) Users: 1000 Access points supported (maximum): 16 Networking IP address assignment: Static (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP relay NAT modes: 1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT, transparent mode Routing protocols: BGP, OSPF, RIPv1/v2, static routes, policy-based routing QoS: Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1e (WMM) Authentication: LDAP (multiple domains), XAUTH/RADIUS,TACACS+, SAML SSO1, Radius accounting NTLM, internal user database, 2FA, Terminal Services, Citrix, Common Access Card (CAC) Local user database: 1000 VoIP: Full H3230v1.5 SIP Standards: TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3 Certifications: IPv6

Dimensions & Weight
Dimensions	in cm: 3.5 x13 x19
Weight	in Kg: 0.82
