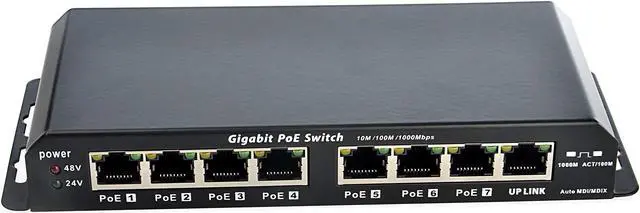

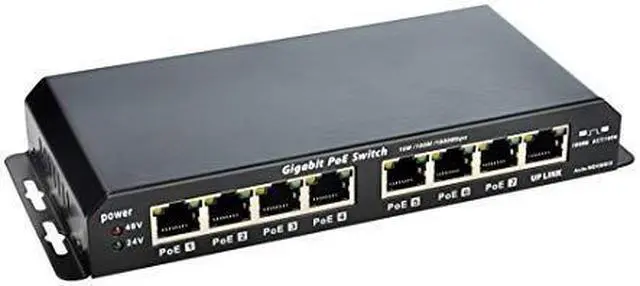

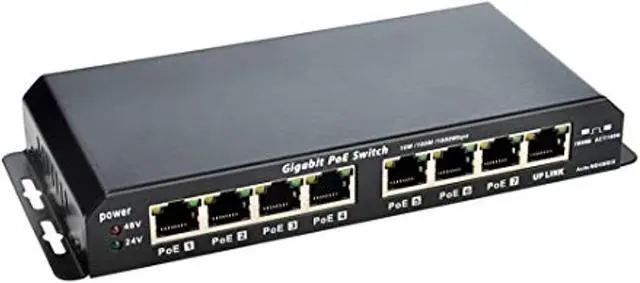

PoE Texas GPOES-8-7AB | 8 Port Gigabit Ethernet Switch with Passive PoE on 7 Ports - Power Over Ethernet for 802.3af or 24v Devices - Power Supply Sold Separately

Features:

• Instantly upgrade your network to PoE - Unmanaged PoE switch with 7 PoE ports
• 10/100/1000 Gigabit Data capability with transparent VLAN passthrough
• Power and data delivery options for Mode A or Mode B compatible with IEEE 802.3 af devices
• PoE Powered via Uplink; Power supply NOT included - see options below for 24v48v and 56v UL rated power supplies
• Backed by 1 year warranty - For expert technical support from Austin Texas please call 512 479 0317

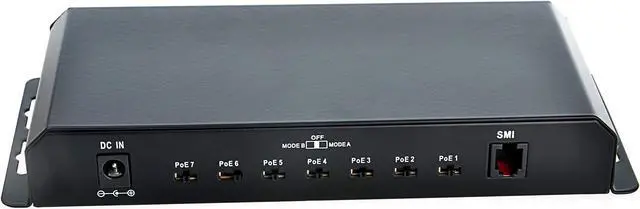

Details: 8 port switch with 10/100/1000 gigabit data capability. This is a great option for powering devices without upgrading your entire system. Use this passive PoE Switch to power 802.3 af PoE devices like Access Points Phones cameras and more. It offers 7 passive PoE ports with Mode A/Mode B or Data only selection and 1 uplink port. Product Specifications 7 Passive "always on" PoE outputs to power 802.3 af PoE devices 10/100/1000 Gigabit data capability Bright status LED indicators Manual selection for Mode A Mode B or Data Only (Off) per port PTC fuse on each PoE output port - 650 ma fuse per port - self resetting PoE power input for PoE repeating (daisy-chain) via the uplink port on Mode B (pins 45 78) 18 volt to 56 volt input on the 2.1 mm DC connector center positive - Power supply sold separately Available power supply options from
PoE Texas (NOT INCLUDED) 24 volts: PS-24v60w
or PS-24v120w 48 volts: PS-48v30w PS-48v60w or PS-48v120w 56 volts: PS-56v60w or PS-56v120w

Package Dimensions: 8.5 x 4.7 x 3.2 inches
