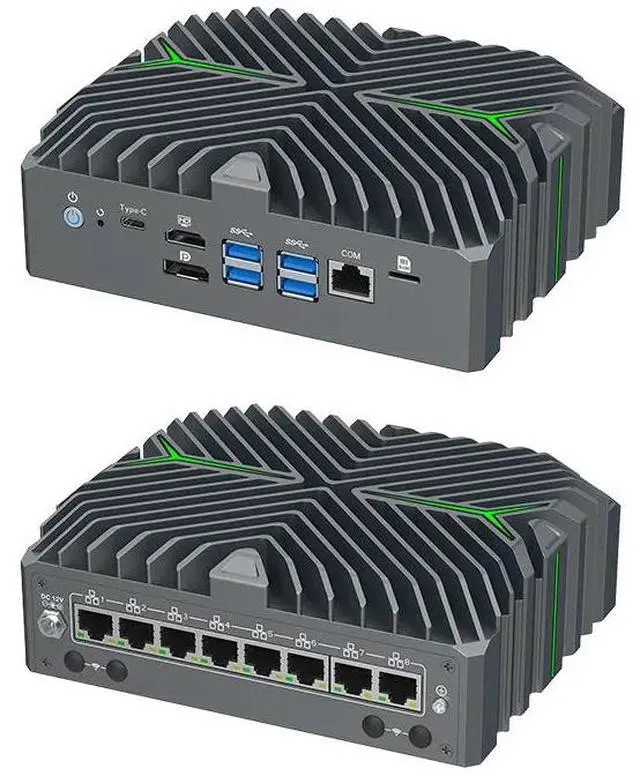

Partaker Micro Firewall Appliance, Fanless Mini PC, OPNsense, Ultra 5 125U, H11, 8 x 2.5G LAN, 4 x USB3.2, DP, HD, Type-C, RJ45 COM, SIM Card Slot, 8G RAM, 256G SSD
Limited time offer, ends 12/26 By Partaker Mini PC‘s Marketplace
- 14th Gen Ultra Processor: Advanced computing power for firewall and network applications
- 8x 2.5GbE LAN Ports: 1 with vPro + 7 standard ports for high-speed connectivity
- Dual DDR5 5600 SODIMM Slots: Supports up to 64GB memory for smooth multitasking
- Triple Display Outputs: 1x HD, 1x DP, 1x Type-C for flexible monitor setup
- Expandable Storage: M.2 NVMe + 2.5" SATA + WIFI + 4G LTE module support
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model Number: Partaker H11
Chassis: High-quality all aluminum, surface hard anodized
Color: Metal gray (Any color can be customized)
CPU: Intel Core Ultra 5 125U (12 core 14 threads, Max Turbo 4.3 GHz, 15W)
BIOS: AMI UEFI BIOS
Memory: 2 x DDR5 5600 SODIMM memory slot, Max 64 GB
Storage: 1 x M. 2 2280 slot, 1 x 2.5 -inch HDD/SSD
NPU: Intel AI Boost (Max Frequency 1.4GH z)
Display Port: 1 x HD, 1 x DP, 1 x Type-C, Resolution up to 4096x2160@60Hz
Network Card: 7 x Intel i226-V 100/1000/2500M Ethernet, 1 x Intel i226-LM 100/1000/2500M Ethernet, support Intel vPro (LAN1)

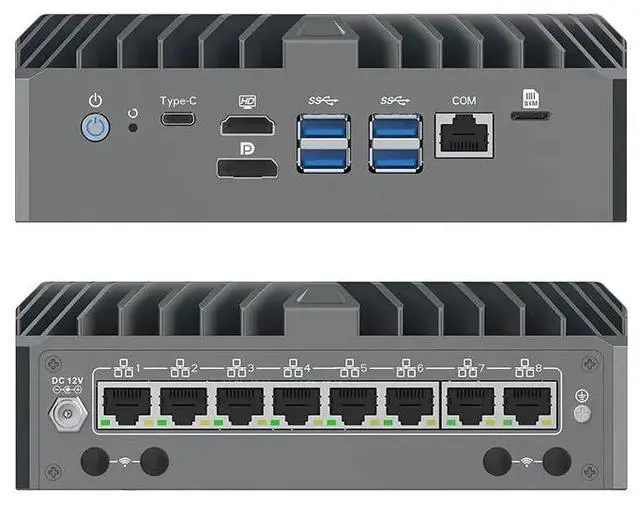

I/O Interface: 1 x Power Button, 1 x Reset, 1 x Type-C (support DP/USB 3.2 /PD 5V1A),
1 x HD, 1 x DP, 4 x USB 3.2, 1 x RJ45 COM (suppor Console), 1 x SIM Card Slot

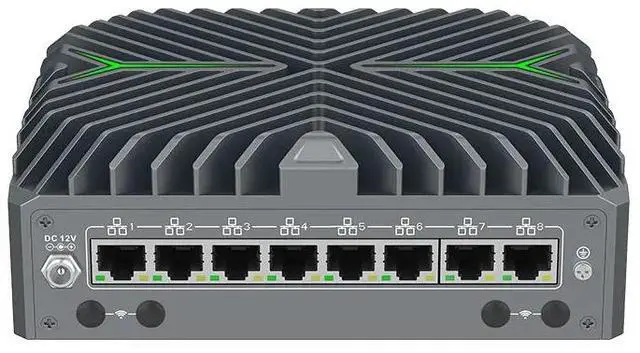

1 x DC, 8 x Intel 2.5G Lan (1 x Intel i226-LM support vPro, 7 x Intel i226-V)
Expansion: 1 x M. 2 2280 M-Key slot (NVME protocol, PCIE 4.0 x4)
1 x M. 2 2230 E-key slot (PCIe&USB /CNVio2 )
1 x M. 2 3052 (2242) B-key slot (USB 3.0 signal, supports 4G/5G), external SIM card slot
Expandable interface (not included in standard shipment): 2 USB 2.0, 4*Pin GPIO(Contact us if need, pay extra cost)
Power: DC 12V
Work Temperature: 0°C ~ +40°C Commercial HDD, -20°C ~ +50°C Industrial SSD, surface air flow
Work Humidity: 5%~95% non-condensing
Cooling system: Fanless, if need Fan version, leave us message. Default with Fanless Version
Size: 170 x 140 x 58 mm
Weight: 1.36 kgs

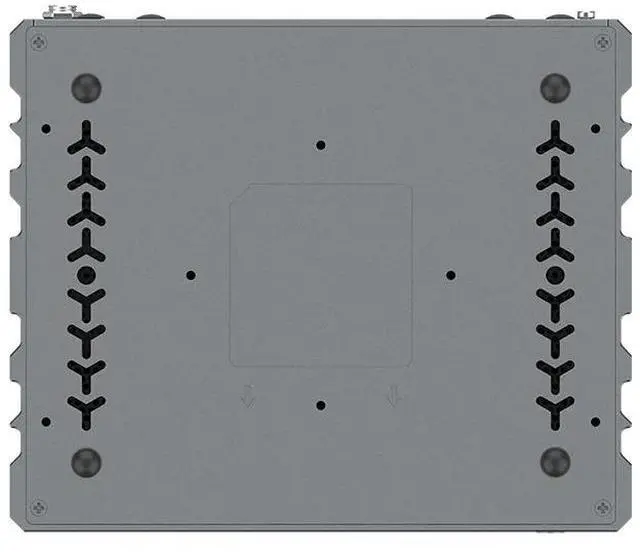

Installation method: Wall-mounted, Desktop
Other Function: Power-on, Timed power-on, network wake-up, PXE boot, watchdog (level 0-255), TPM 2.0 security encryption
Application: Firewall, VPN, network server, network security, router and other fields.
4-12 LAN/WAN Ports, Different CPU, Nano Type, Mini Type, 1U/2U rackable, 9-15 inch rackable, all are available in our shop,
Bookmark our store, for customization needs and other needs, we shall be glad to supply, contact us to get a timely reply
Chassis: High-quality all aluminum, surface hard anodized
Color: Metal gray (Any color can be customized)
CPU: Intel Core Ultra 5 125U (12 core 14 threads, Max Turbo 4.3 GHz, 15W)
BIOS: AMI UEFI BIOS
Memory: 2 x DDR5 5600 SODIMM memory slot, Max 64 GB
Storage: 1 x M. 2 2280 slot, 1 x 2.5 -inch HDD/SSD
NPU: Intel AI Boost (Max Frequency 1.4GH z)
Display Port: 1 x HD, 1 x DP, 1 x Type-C, Resolution up to 4096x2160@60Hz
Network Card: 7 x Intel i226-V 100/1000/2500M Ethernet, 1 x Intel i226-LM 100/1000/2500M Ethernet, support Intel vPro (LAN1)
I/O Interface: 1 x Power Button, 1 x Reset, 1 x Type-C (support DP/USB 3.2 /PD 5V1A),
1 x HD, 1 x DP, 4 x USB 3.2, 1 x RJ45 COM (suppor Console), 1 x SIM Card Slot
1 x DC, 8 x Intel 2.5G Lan (1 x Intel i226-LM support vPro, 7 x Intel i226-V)
Expansion: 1 x M. 2 2280 M-Key slot (NVME protocol, PCIE 4.0 x4)
1 x M. 2 2230 E-key slot (PCIe&USB /CNVio2 )
1 x M. 2 3052 (2242) B-key slot (USB 3.0 signal, supports 4G/5G), external SIM card slot
Expandable interface (not included in standard shipment): 2 USB 2.0, 4*Pin GPIO(Contact us if need, pay extra cost)
Power: DC 12V
Work Temperature: 0°C ~ +40°C Commercial HDD, -20°C ~ +50°C Industrial SSD, surface air flow
Work Humidity: 5%~95% non-condensing
Cooling system: Fanless, if need Fan version, leave us message. Default with Fanless Version
Size: 170 x 140 x 58 mm
Weight: 1.36 kgs
Installation method: Wall-mounted, Desktop
Other Function: Power-on, Timed power-on, network wake-up, PXE boot, watchdog (level 0-255), TPM 2.0 security encryption
Application: Firewall, VPN, network server, network security, router and other fields.
4-12 LAN/WAN Ports, Different CPU, Nano Type, Mini Type, 1U/2U rackable, 9-15 inch rackable, all are available in our shop,
Bookmark our store, for customization needs and other needs, we shall be glad to supply, contact us to get a timely reply
