Partaker 1U Rackmount Router Firewall Appliance, Network Security Server, OPNsense, LGA1700, I7 12700, S10, 6 x i210-AT 1000M LAN, 2 x USB3.0, COM, HD, TPM 2.0, Bypass, 8GB RAM 256GB SSD
- Powerful 1U Rackmount Network Appliance Supports LGA1700 socket desktop processors (12th I7 12700) with dual DDR4 U-DIMM slots, max 64GB memory. Ideal for firewall, router, and server applications.
- 6 x Gigabit LAN with Bypass Features 6 x 1000M Ethernet ports including 2 sets of hardware bypass. Ensures network reliability and fail-safe operation for security appliances.
- Flexible Expansion Options Includes 1 PCIe x8 slot (supports 4 optical or 4 network ports), dual M.2 2280 slots for SATA SSDs, and one M.2 3042 slot for 4G module.
- Rich I/O & Storage Front I/O: 2 USB 3.0, 1 COM (console), 6 LAN ports. Optional built-in GPIO, additional COM, and USB ports. Supports 3.5" HDD or dual 2.5" HDD/SSD.
- Sturdy & Reliable Design Aluminum front panel with SGCC chassis, 1U compact size (482x471x44.5mm). Operating temp 0°C~50°C, certified with CE, CCC, FCC, ROHS.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model: Partaker S10 1U6L Network Security Server
Color: Black
Material: Aluminum Alloy Front Panel, SGCC Cabinet
Processor: Intel Core I7-12700 (12 Core 20 Threads, 2.10 Ghz, Turbo Frequency 4.9 Ghz, 12MB)
Chipset: Intel H610
Memory: 2 x DDR4 3200 U-DIMM Memory Slots, Max. 64GB
BIOS: AMI UEFI BIOS
Display Port: 1 x HD

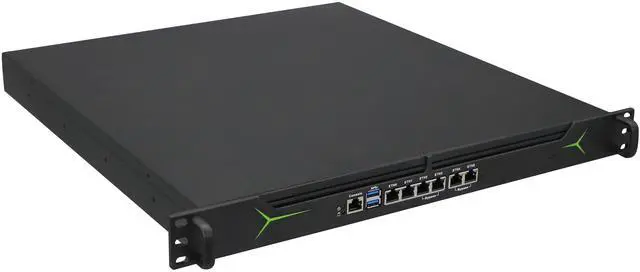

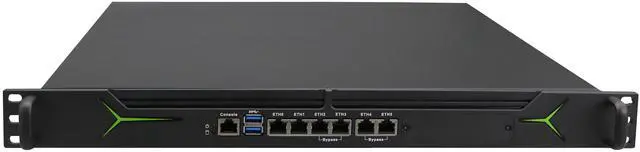

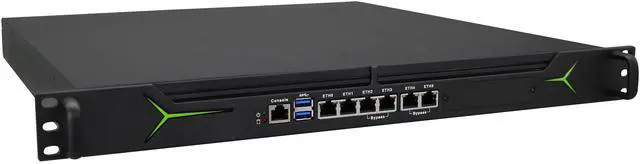

Front I/O: 1 x power indicator light, 1 x hard disk indicator light, 1 x COM (support Console), 2 x USB 3.0, 6 RJ45 Lan port (supports 2 groups of Bypass)

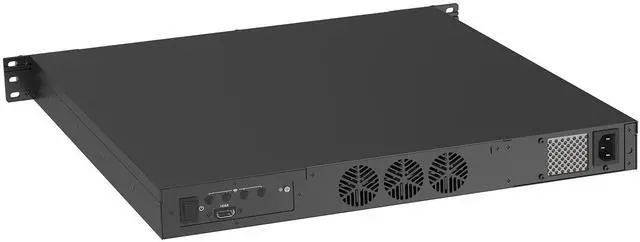

Rear I/O: 1 x Power Button, 1 x HD, 1 x AC power
Expansion Slot: 1 x PCIE X8 (optional 4 Optical Ports or 4 Network Ports, buy extra)
1 x M. 2 (M-Key 2280, supports SATA SSD)
1 x M. 2 (E-Key 2230, supports WiFi/BT)
1 x M. 2 (B-Key 3042, supports 4G)
Network: 6 x Intel i210-AT 1000M LAN ports (supports 2 sets of Bypass)
Storage: 1 x M. 2 (M-Key 2280 supports SATA), optional 1 x 3.5 -inch hard drive fixing position or 2 x 2.5 -inch hard drive fixing positions
Input Power: 90~264 V (47Hz-63Hz) AC input (optional redundant power supply)
Other Function: Watchdog (level 0-255)Diskless boot, Wake on LAN, Auto power on, Timing boot
Work Temp: 0~+50, surface air flow
Work Humidity: 5%~95% non-condensing state
Dimension: 482 x 471 x 44.5 mm
Weight: 6.11 kg (barebone) (including radiator)
Application: Firewall, VPN, network server, network security, router and etc,.
Color: Black
Material: Aluminum Alloy Front Panel, SGCC Cabinet
Processor: Intel Core I7-12700 (12 Core 20 Threads, 2.10 Ghz, Turbo Frequency 4.9 Ghz, 12MB)
Chipset: Intel H610
Memory: 2 x DDR4 3200 U-DIMM Memory Slots, Max. 64GB
BIOS: AMI UEFI BIOS
Display Port: 1 x HD
Front I/O: 1 x power indicator light, 1 x hard disk indicator light, 1 x COM (support Console), 2 x USB 3.0, 6 RJ45 Lan port (supports 2 groups of Bypass)
Rear I/O: 1 x Power Button, 1 x HD, 1 x AC power
Expansion Slot: 1 x PCIE X8 (optional 4 Optical Ports or 4 Network Ports, buy extra)
1 x M. 2 (M-Key 2280, supports SATA SSD)
1 x M. 2 (E-Key 2230, supports WiFi/BT)
1 x M. 2 (B-Key 3042, supports 4G)
Network: 6 x Intel i210-AT 1000M LAN ports (supports 2 sets of Bypass)
Storage: 1 x M. 2 (M-Key 2280 supports SATA), optional 1 x 3.5 -inch hard drive fixing position or 2 x 2.5 -inch hard drive fixing positions
Input Power: 90~264 V (47Hz-63Hz) AC input (optional redundant power supply)
Other Function: Watchdog (level 0-255)Diskless boot, Wake on LAN, Auto power on, Timing boot
Work Temp: 0~+50, surface air flow
Work Humidity: 5%~95% non-condensing state
Dimension: 482 x 471 x 44.5 mm
Weight: 6.11 kg (barebone) (including radiator)
Application: Firewall, VPN, network server, network security, router and etc,.
