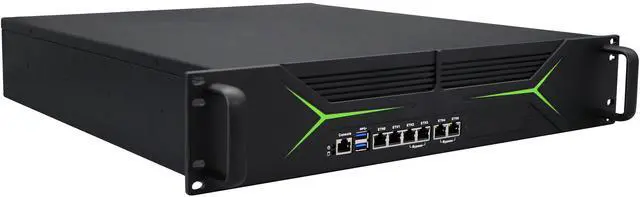

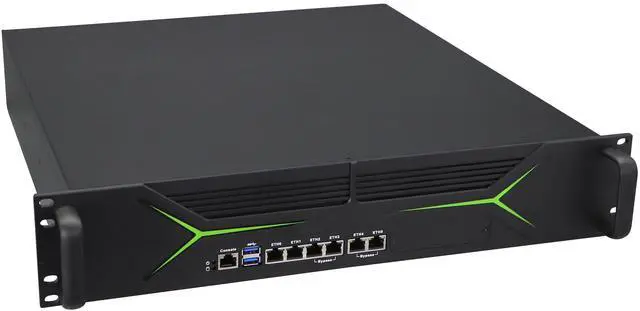

Partaker Industrial 2U Computer Rackmount Server, Firewall Appliance, OPNsense, LGA1700, I3 12100, S11, 6 x i210-AT 1000M LAN, 2 x USB3.0, COM, HD, TPM 2.0, Bypass, 8GB RAM 256GB SSD
- Powerful 2U Rackmount Server Supports LGA1700 socket desktop processors (12th Gen I3 12100) with H610 chipset, dual DDR4 U-DIMM slots up to 64GB. Ideal for firewall, router, and network security.
- 6 x Gigabit LAN with Bypass Features 6 x 1000M Ethernet ports (i210-AT) including 2 sets of hardware bypass. Front I/O includes console, 2 USB 3.0, and 6 LAN ports.
- Flexible Expansion Options Includes 1 PCIe x8 slot (supports 4 optical or 4 network ports), dual M.2 2280 slots for SATA SSD, and one M.2 3042 slot for 4G module.
- Rich Storage & I/O Supports 1 x 3.5 HDD or 2 x 2.5 HDD/SSD. Optional internal ports: 8 GPIO, additional COM, and USB ports. TPM 2.0 ready.
- Sturdy 2U Design Aluminum front panel with SGCC chassis, dimensions 482x471x88.8mm, weight 7.19kg. Operating temp 0°C~50°C, certified CE, FCC, ROHS.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model: Partaker S11 2U6L Rack Server
Color: Black
Material: Aluminum Alloy Front Panel, SGCC Cabinet
Processor: Intel Core I3-12100 (4 Core 8 Threads, 3.3 Ghz, Turbo Frequency 4.3 Ghz, 5MB)
Chipset: Intel H610
Memory: 2 x DDR4 3200 U-DIMM Memory Slots, Max. 64GB
BIOS: AMI UEFI BIOS
Display Port: 1 x HD Port

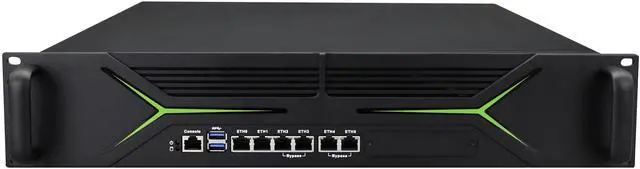

Front I/O: 1 x power indicator light, 1 x hard disk indicator light, 1 x COM (support Console), 2 x USB 3.0, 6 RJ45 Lan port (supports 2 groups of Bypass)

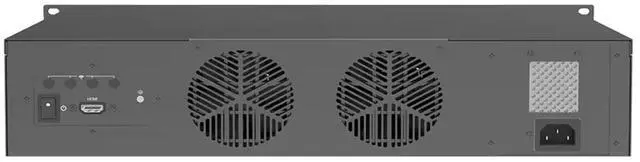

Rear I/O: 1 x Power Button, 1 x HD, 1 x AC power
Expansion Slot: 1 x PCIE X8 (optional 4 Optical Ports or 4 Network Ports, buy extra)
1 x M. 2 (M-Key 2280, supports SATA SSD)
1 x M. 2(E-Key 2230, supports WiFi/BT)
1 x M. 2 (B-Key 3042, supports 4G)
Standard shipment doesn't include this Port: 8 GPIO, 1 COM (RS232/485 optional), 4 USB 2.0; 1 USB 3.0 (built-in Type-A port) (If need, contact us and pay extra cost)
Network: 6 x Intel i210-AT 1000M LAN ports (supports 2 sets of Bypass)
Storage: 1 x M. 2 (M-Key 2280 supports SATA), optional 1* 3.5 HDD/SSD or 2* 2.5 HDD/SSD
Input Power: 90~265V(47Hz-63Hz)AC input (optional redundant power supply)
Other Function: Support Watchdog(level 0-255)Diskless boot, Wake on LAN, Auto power on, Timing boot
Work Temp: 0~+50, surface air flow
Work Humidity: 5%~95% non-condensing state

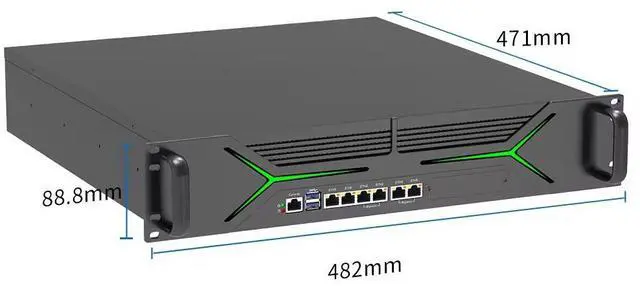

Dimension: 482 x 471 x 88.8 mm
Weight: 7.19 kg (barebone) (including radiator)
Application: Firewall, VPN, Network server, Network security, Router and other fields
Color: Black
Material: Aluminum Alloy Front Panel, SGCC Cabinet
Processor: Intel Core I3-12100 (4 Core 8 Threads, 3.3 Ghz, Turbo Frequency 4.3 Ghz, 5MB)
Chipset: Intel H610
Memory: 2 x DDR4 3200 U-DIMM Memory Slots, Max. 64GB
BIOS: AMI UEFI BIOS
Display Port: 1 x HD Port
Front I/O: 1 x power indicator light, 1 x hard disk indicator light, 1 x COM (support Console), 2 x USB 3.0, 6 RJ45 Lan port (supports 2 groups of Bypass)
Rear I/O: 1 x Power Button, 1 x HD, 1 x AC power
Expansion Slot: 1 x PCIE X8 (optional 4 Optical Ports or 4 Network Ports, buy extra)
1 x M. 2 (M-Key 2280, supports SATA SSD)
1 x M. 2(E-Key 2230, supports WiFi/BT)
1 x M. 2 (B-Key 3042, supports 4G)
Standard shipment doesn't include this Port: 8 GPIO, 1 COM (RS232/485 optional), 4 USB 2.0; 1 USB 3.0 (built-in Type-A port) (If need, contact us and pay extra cost)
Network: 6 x Intel i210-AT 1000M LAN ports (supports 2 sets of Bypass)
Storage: 1 x M. 2 (M-Key 2280 supports SATA), optional 1* 3.5 HDD/SSD or 2* 2.5 HDD/SSD
Input Power: 90~265V(47Hz-63Hz)AC input (optional redundant power supply)
Other Function: Support Watchdog(level 0-255)Diskless boot, Wake on LAN, Auto power on, Timing boot
Work Temp: 0~+50, surface air flow
Work Humidity: 5%~95% non-condensing state
Dimension: 482 x 471 x 88.8 mm
Weight: 7.19 kg (barebone) (including radiator)
Application: Firewall, VPN, Network server, Network security, Router and other fields
