Partaker Firewall Appliance, Fanless Mini PC, Network Security, OPNsense, N100, C14, 4 x 2.5GbE LAN, HDMI, DP, RJ45 COM, 8GB RAM 128GB SSD
- Quad-Core Processor & Silent Cooling Powered by a 4-core/4-thread processor (turbo up to 3.4 GHz) with all-aluminum alloy passive cooling. Zero fan noise, ideal for dust-sensitive environments like network servers and industrial automation.
- Triple M.2 Expansion Supports three M.2 slots simultaneously: one for SSD storage (2280 SATA), one for Wi-Fi/BT (2230 E-key), and one for 4G/5G cellular (3052 B-key) with external SIM slot. Flexible connectivity for remote monitoring.

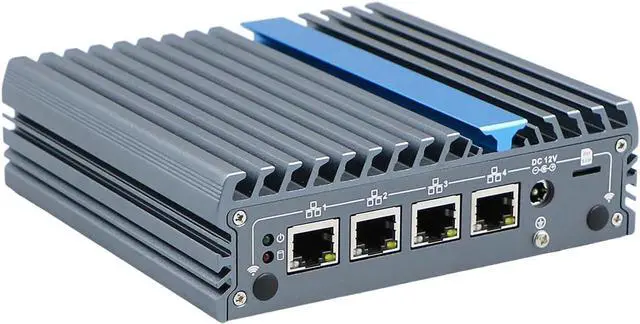

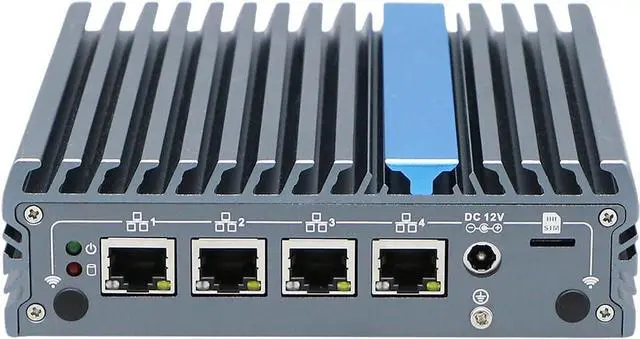

- Four 2.5GbE LAN Ports Four high-speed 2.5-gigabit Ethernet ports (compatible with 100/1000/2500Mbps) for firewall, VPN, and router applications. One RJ45 COM port supports console access.
- Dual 4K Independent Displays One HD digital video port and one DisplayPort, both supporting up to 4096×2160 @ 60Hz. Synchronous or asynchronous dual display for control rooms or digital signage.
- Wide Temperature & Mounting Options Operates reliably from -20°C to +50°C. Supports VESA, wall-mount, or DIN-rail installation. Features auto power-on, wake-on-LAN, PXE boot, watchdog timer, and TPM 2.0 security.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model Number: Partaker C14

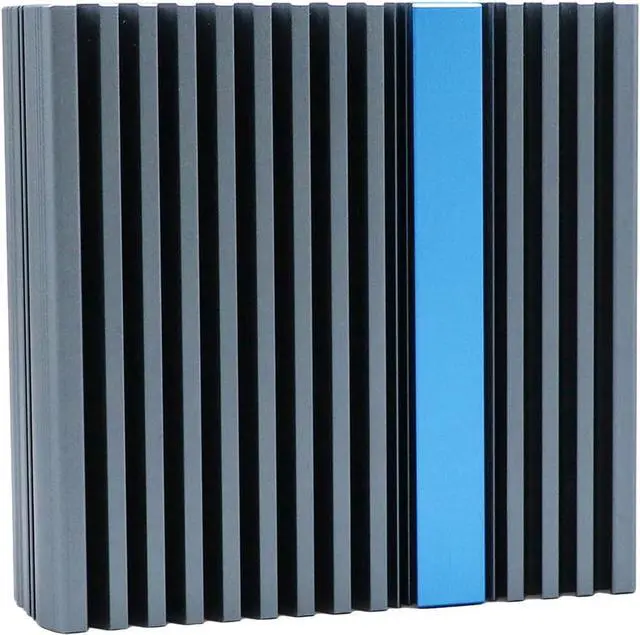

Chassis: All-aluminum alloy structure, fanless cooling design
CPU: Processor N100 6M Cache, up to 3.40 GHz
AES-NI Supported: Yes
Security: TPM 2.0
Memory: 1 x SODIMM DDR4 3200 MT/s, MAX. 16GB
Storage: 1 x M. 2 2280 M-key SATA SSD, 1 x 2.5 Inch SATA SSD/HDD
Network Card: 4 x 2.5G bE I226-V LAN

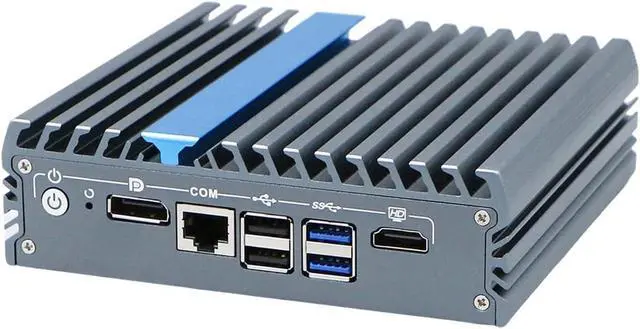

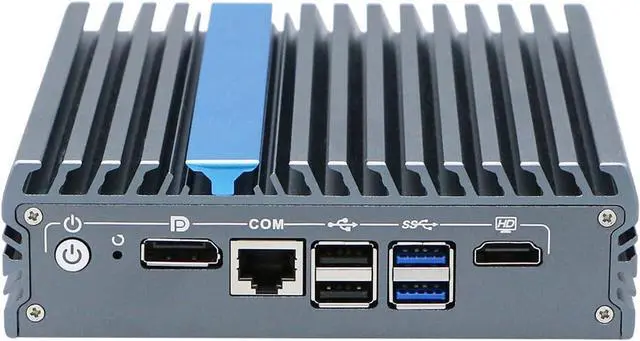

I/O Interface: Power Switch, Reset, DP, COM Console, 3 x USB 2.0, USB 3.1, HDMI, 4 x LAN, DC_IN, SIM Slot
Expansion: 1 x M. 2 2230 E-key for WiFi/BT, 1 x M. 2 3052 B-key for USB 3.0 signal 4G/5G module.
Expandable Wide-Voltage Input Module 9-36V, WiFi, 4G, and CAN Bus Communication, Suitable for Diverse Industrial Applications (Customization will cost extra)
Power: DC100-240V AC/50-60hz, 12V5A
Work Temperature: -20°C ~ +50°C, surface air flow
Work Humidity: 5%~95% non-condensing
TDP: 6W
Cooling system: Fanless
Size: 142 x 137 x 42mm
Weight: 0.79 kgs
Packing List: Firewall appliance, power supply, power cord, vesa mount, warranty card
Function: Supports hardware auto power on enabled default, Timing boot, WOL, PXE boot, Watchdog 0~255 level

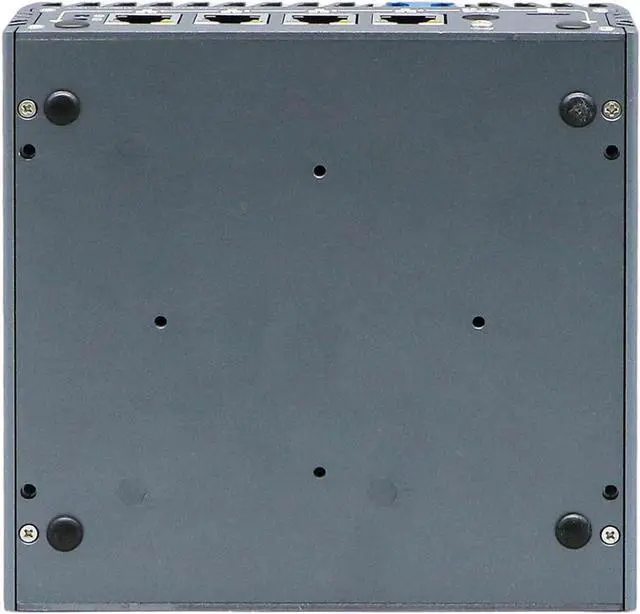

Installation: Supports Desktop, Din Rail, VESA wall-mounted and other fixing methods, default as vesa mount method
System Compatibility: 5.10. x and above core-based freebsd router systems, linux distros, or win. os supported.
Compatibility: firewalls for pfsense, opnsense and other popular open-source software solutions.
Application: Firewall, VPN, network server, Network security, router., etc
Note: When use WIFI and 4G/5G module together, Antenna fixing holes need diggingany question pls contact us.
4-12 LAN/WAN Ports, Different CPU, Nano Type, Mini Type, 1U/2U rackable, 9-15 inch rackable, all are available in our shop.
Bookmark Partaker store, for customization needs and other needs, we shall be glad to supply, contact us to get a timely reply.
Chassis: All-aluminum alloy structure, fanless cooling design
CPU: Processor N100 6M Cache, up to 3.40 GHz
AES-NI Supported: Yes
Security: TPM 2.0
Memory: 1 x SODIMM DDR4 3200 MT/s, MAX. 16GB
Storage: 1 x M. 2 2280 M-key SATA SSD, 1 x 2.5 Inch SATA SSD/HDD
Network Card: 4 x 2.5G bE I226-V LAN
I/O Interface: Power Switch, Reset, DP, COM Console, 3 x USB 2.0, USB 3.1, HDMI, 4 x LAN, DC_IN, SIM Slot
Expansion: 1 x M. 2 2230 E-key for WiFi/BT, 1 x M. 2 3052 B-key for USB 3.0 signal 4G/5G module.
Expandable Wide-Voltage Input Module 9-36V, WiFi, 4G, and CAN Bus Communication, Suitable for Diverse Industrial Applications (Customization will cost extra)
Power: DC100-240V AC/50-60hz, 12V5A
Work Temperature: -20°C ~ +50°C, surface air flow
Work Humidity: 5%~95% non-condensing
TDP: 6W
Cooling system: Fanless
Size: 142 x 137 x 42mm
Weight: 0.79 kgs
Packing List: Firewall appliance, power supply, power cord, vesa mount, warranty card
Function: Supports hardware auto power on enabled default, Timing boot, WOL, PXE boot, Watchdog 0~255 level
Installation: Supports Desktop, Din Rail, VESA wall-mounted and other fixing methods, default as vesa mount method
System Compatibility: 5.10. x and above core-based freebsd router systems, linux distros, or win. os supported.
Compatibility: firewalls for pfsense, opnsense and other popular open-source software solutions.
Application: Firewall, VPN, network server, Network security, router., etc
Note: When use WIFI and 4G/5G module together, Antenna fixing holes need diggingany question pls contact us.
4-12 LAN/WAN Ports, Different CPU, Nano Type, Mini Type, 1U/2U rackable, 9-15 inch rackable, all are available in our shop.
Bookmark Partaker store, for customization needs and other needs, we shall be glad to supply, contact us to get a timely reply.
