$1,313.99
Ships from China.
Meet Your Seller
Partaker Micro Firewall Appliance with vPro, Mini PC, Network Securit, Ultra 5 125U, H6, 7 x I226-V, 1 x I226-LM LAN, AI Boost NPU, 16GB RAM 512GB SSD
- Powerful & Secure Processing: Fanless firewall PC with high-performance processor (up to 4.30GHz, 12M cache), AES-NI encryption, TPM2.0. Dual DDR5 slots support max 64GB memory, plus M.2 NVMe and 2.5" SATA storage. Ideal for demanding router workloads.
- 8x 2.5GbE Connectivity: Seven I226-V + one I226-LM LAN ports (2.5GbE each) with enterprise remote management support. Perfect for pfSense, OPNsense, VLANs, link aggregation, WOL, PXE boot. Handle massive traffic effortlessly.
- Rugged Fanless Design: Aluminum chassis, -20°C~+50°C operation, 5-95% humidity non-condensing. Low power (12-57W TDP). Optional 9-36V wide-voltage input module. Reliable for industrial & outdoor deployment.
- Versatile Expansion: Full-featured Type-C, video out (HDMI/DP substitute), 4x USB3.2, COM, SIM slot. M.2 E-key for WiFi/BT, M.2 B-key for 4G/5G modules. Supports CAN bus. Ready for IoT and telematics.
- Easy Deployment & Control: VESA mount (included), desktop/DIN rail options. Hardware auto-power-on, watchdog timer (0-255), timing boot. Compatible with FreeBSD/Linux/Windows routers. Compact (180x140x66mm, 1.65kg).
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model Number: Partaker H6
Chassis: Aluminum
CPU: Core Ultra 5 Processor 125U 12M Cache, up to 4.30 GHz
AES-NI Supported: Yes
Security: TPM 2.0
Memory: 2 x SODIMM Up to DDR5 5600 MT/s, MAX. 64GB
Storage: 1 x M. 2 2280 M-key PCIE X4 NVME SSD, 1 x 2.5 Inch SATA SSD/HDD
Network Card: 7 x 2.5G bE I226-V LAN, 1 x 2.5G bE I226-LM LAN support Vpro

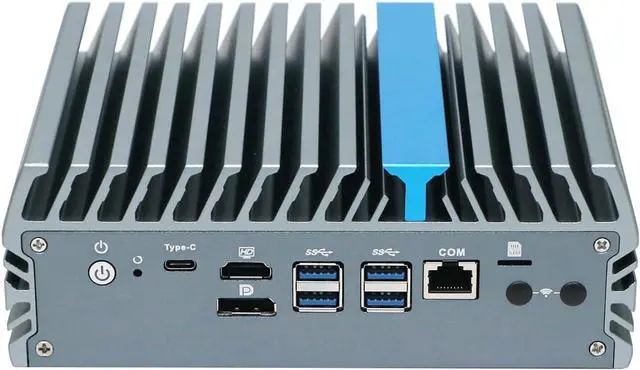

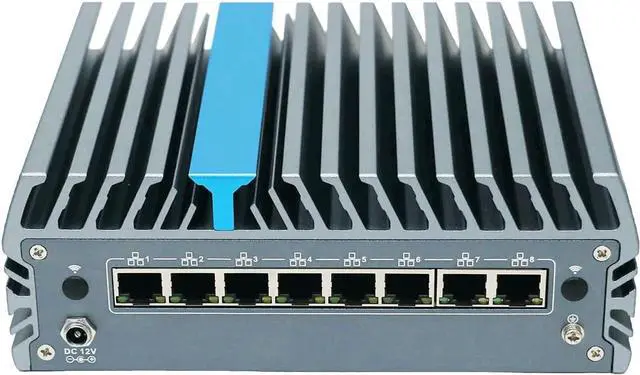

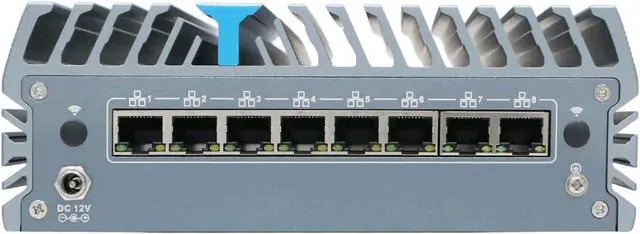

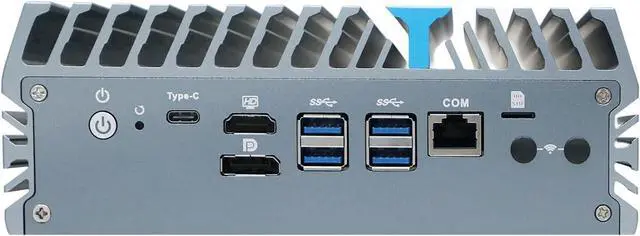

I/O Interface: Power Switch, Reset, Full-featured Type-C, HDMI, DP, 4 x USB 3.2, COM Console, SIM Slot, DC_IN, 8 x LAN
Expansion: 1 x M. 2 2230 E-key for WiFi/BT, 1 x M. 2 2242/3052 B-key for USB 3.0 signal 4G/5G module.
Expandable Wide-Voltage Input Module 9-36V, WiFi, 4G, and CAN Bus Communication,
Suitable for Diverse Industrial Applications
Power: DC100-240V AC/50-60hz, 12V 7.5A
Work Temperature: -20°C ~ +50°C, surface air flow
Work Humidity: 5%~95% non-condensing
TDP: 12-57W
Cooling system: Fanless
Size: 180 x 140 x 66mm
Weight: 1.65 kgs
Packing List: Partaker H6 firewall appliance, power supply, power cord, vesa mount, warranty card
Function: Supports hardware auto power on enabled default, Timing boot, WOL, PXE boot, Watchdog 0~255 level
Installation: Supports Desktop, Din Rail, VESA wall-mounted and other fixing methods, default as vesa mount method, if need Din Rail, please leave us message after order placed.
System Compatibility: 5.10. x and above core-based freebsd router systems, linux distros, or win. os supported.
Compatibility: firewalls for pfsense, opnsense and other popular open-source software solutions
4-12 LAN/WAN Ports, Different CPU, Nano Type, Mini Type, 1U/2U rackable, 9-15 inch rackable, all are available in our shop,
Bookmark Partaker store, for customization needs and other needs, we shall be glad to supply, contact us to get a timely reply
Chassis: Aluminum
CPU: Core Ultra 5 Processor 125U 12M Cache, up to 4.30 GHz
AES-NI Supported: Yes
Security: TPM 2.0
Memory: 2 x SODIMM Up to DDR5 5600 MT/s, MAX. 64GB
Storage: 1 x M. 2 2280 M-key PCIE X4 NVME SSD, 1 x 2.5 Inch SATA SSD/HDD
Network Card: 7 x 2.5G bE I226-V LAN, 1 x 2.5G bE I226-LM LAN support Vpro
I/O Interface: Power Switch, Reset, Full-featured Type-C, HDMI, DP, 4 x USB 3.2, COM Console, SIM Slot, DC_IN, 8 x LAN
Expansion: 1 x M. 2 2230 E-key for WiFi/BT, 1 x M. 2 2242/3052 B-key for USB 3.0 signal 4G/5G module.
Expandable Wide-Voltage Input Module 9-36V, WiFi, 4G, and CAN Bus Communication,
Suitable for Diverse Industrial Applications
Power: DC100-240V AC/50-60hz, 12V 7.5A
Work Temperature: -20°C ~ +50°C, surface air flow
Work Humidity: 5%~95% non-condensing
TDP: 12-57W
Cooling system: Fanless
Size: 180 x 140 x 66mm
Weight: 1.65 kgs
Packing List: Partaker H6 firewall appliance, power supply, power cord, vesa mount, warranty card
Function: Supports hardware auto power on enabled default, Timing boot, WOL, PXE boot, Watchdog 0~255 level
Installation: Supports Desktop, Din Rail, VESA wall-mounted and other fixing methods, default as vesa mount method, if need Din Rail, please leave us message after order placed.
System Compatibility: 5.10. x and above core-based freebsd router systems, linux distros, or win. os supported.
Compatibility: firewalls for pfsense, opnsense and other popular open-source software solutions
4-12 LAN/WAN Ports, Different CPU, Nano Type, Mini Type, 1U/2U rackable, 9-15 inch rackable, all are available in our shop,
Bookmark Partaker store, for customization needs and other needs, we shall be glad to supply, contact us to get a timely reply
