Partaker 12th Gen Firewall Mini PC, Micro Firewall Appliance, I5 1235U, H1, 4 x 2.5G LAN, 2 x 10G SFP, DP, HD, Type-C, 8GB RAM, 128GB SSD

Model: Partaker H1
Processor: Intel Core i5 1235U (10 Cores 12 Threads, Turbo 4.4 GHz)
Chipset: Intel Iris Xe Graphics
Memory: 2 x DDR5 4800 MHz SODIMM memory slots, Max. 64 GB
BIOS: AMI UEFI BIOS
Display Port: 1 x HD, 1 x DP, 1 x Type-C, Resolution up to 4096x2160@60Hz
Storage: 1 x M. 2 2280 slot, 1 x 2.5 -inch HDD/SSD
Expansion: 1*M. 2 2280 M-Key slot (Only NVMe, PCIe 4.0 x4)
1*M. 2 2230 E-key slot (PCIe & USB / CNVio2)
1*M. 2 2242/3052 B-key slot (USB 3.0, 4G/5G), external SIM card slot
Expandable interface (not included in standard shipping): 4 GPIO channels, 2*USB 2.0 (Pay extra, contact us if need)

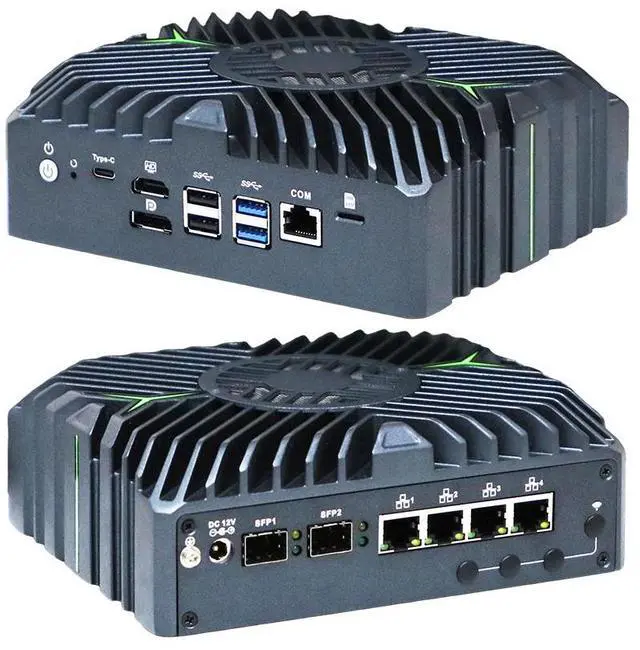

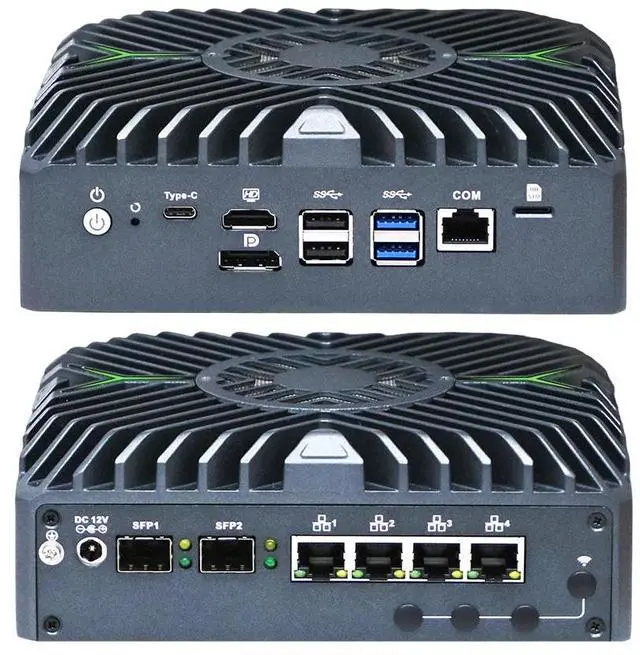

Front I/O: 1 x Power Button, 1 x restart / BIOS reset button, 1 x Type-C (video output/USB 3.2 /PD 5V1A), 1 x DP
1 x HD, 2 x USB 2.0, 2 x USB 3.2, 1 x RJ45 COM (support Console ), 1 x Nano-SIM card

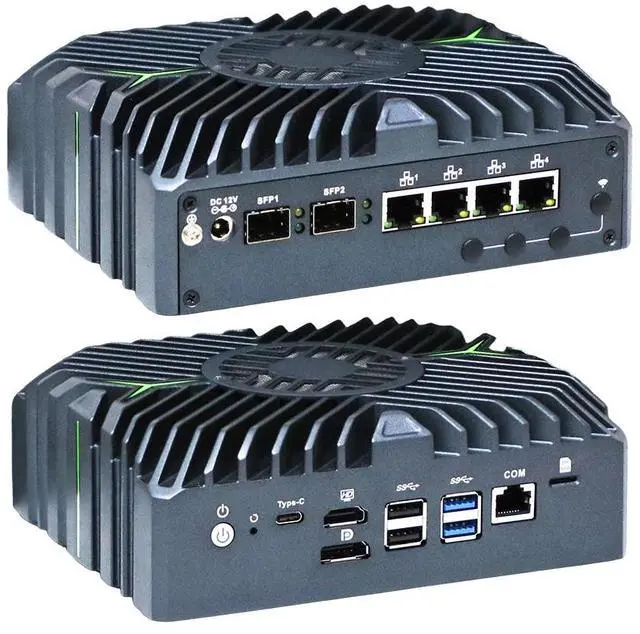

Rear I/O: 1 x DC-12V, 2 x Intel 10 GbE SFP+, 4 x Intel 2.5G Lan
Network: 4 x Intel i226 2.5G be Lan, LAN1 i226-LM support Intel vPro (Lan1), 2 x10 GbE SFP+ ports (Intel 82599)
Input Voltage: DC 12V
Certificates: CE, FCC, ROHS
Other Function: Power-on, timed power-on, PXE boot, network wake-up, watchdog (0-255 levels), TPM 2.0 security encryption
Color: Metal gray (Any color can be customized)

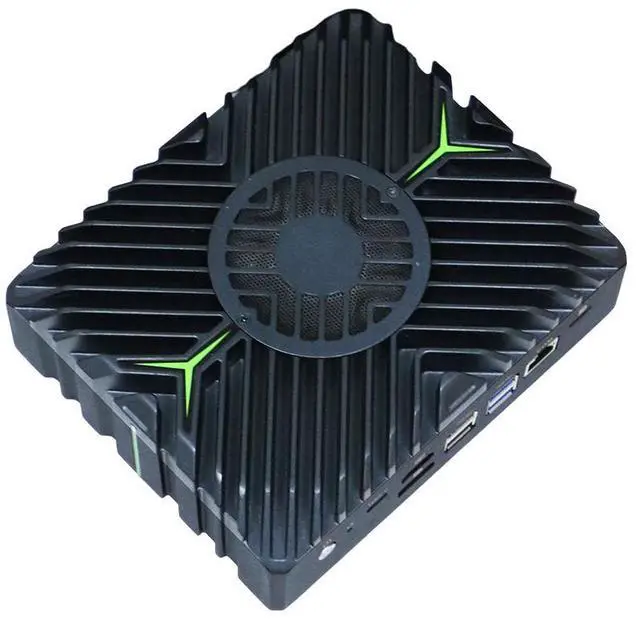

Material: All aluminum alloy structure, fan active heat dissipation;
Dimension: 170 x 140 x 58 mm
Weight: 1.33 kg
Operating Temperature: 0°C ~ +50°C (commercial HDD), -20°C ~ +50°C (industrial SSD), with surface air flow
Operating Humidity: 0% ~ 95% non-condensing
Application: Industrial control, Industrial automation, robotics, iot, edge computing, machine vision, AGV/AMR
