WayPonDEV Banana Pi WiFi 6 OpenWrt One Router Board, Wireless Dual Band Internet Router, MediaTek MT7981B SoC 1GB DDR4 RAM, Integrated 1x 2.5GbE WAN Gigabit LAN RJ45 Port, Support AP, WPA,WPA2,WPA3

OpenWrt One/AP-24. XY Router Board is designed based on MediaTek MT7981B (Filogic 820) SoC and MediaTek MT7976C Dual-Band WiFi 6 Chipset, it is the official first development board for OpenWrt open source community. Widely used for Creator DIY, OpenWrt software learning and development, IoT applications, wifi6 wireless routing applications, Nas, network communication applications and so on.

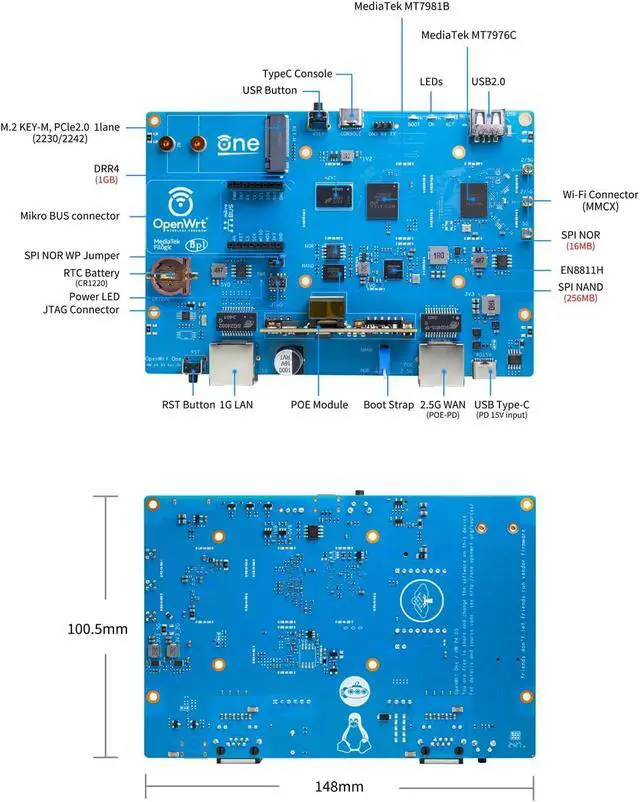

The OpenWrt One router board is a MediaTek Filogic 820 SoC-based routing device with WiFi 6, dual-band, 3 x 3/2 x 2, 1 x 2.5G WAN network interface, 1 x Gigabit LAN network interface, on-board 1GB of DDR4 RAM, 256 MiB of NAND, 16 MiB of NOR, M. 2 SSD interface and USB OpenWrt One also offers a USB 2.0 Type-A and a mikroBUS expansion port, providing additional interfaces for a wide range of technical possibilities. In addition, PWM is also supported in the application software.
The MediaTek MT7981B is a compact Wi-Fi system-on-chip (SoC) for IoT devices that includes an embedded TCP/IP stack. Using the MT7981B CPU, IoT devices can connect to other smart devices or cloud applications and services. Connectivity on the MT7981B is achieved using Wi-Fi in Wi-Fi station or access point (AP) mode. The MT7981B also provides five GPIO pins and one UART port. PWM is also supported in the application software.
The OpenWrt one router board is powered by MediaTek' s MT7981B SoC featuring dual ARM Cortex-a53 cores running at 1.3 GHz with 1 GB of DDR4 RAM and 256 MB of SPI NAND storage, and integrates an additional 16 MB of protected memory for system backup. An integrated M. 2. 2230/2242 NVMe PCIe 2 X1 port can be used to add external storage.
[After-sales Service] Getting Started or SDK Document: " openwrt. org/inbox/toh/openwrt/one". All technical, after-sales and bulk orders questions, please leave the message to WayPonDEV store and ask the question.
