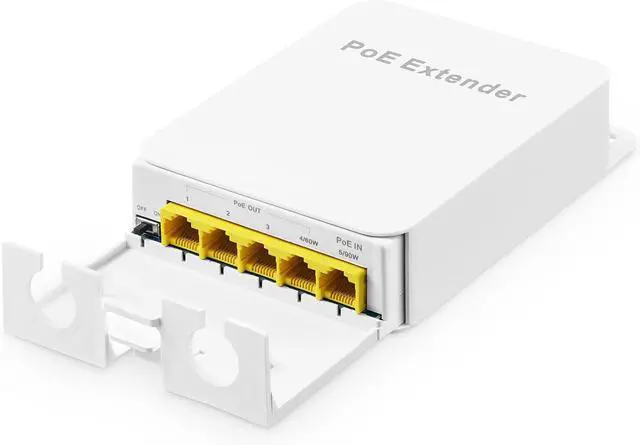

Outdoor Gigabit PoE Passthrough Switch, 1 POE in 4 POE Out Extender, IEEE802.3af/at/bt Powered 90W, 10/100/1000Mbps Ethernet, Wall Mount Waterproof Plug and Play

Gigabit PoE PassthroughInclude 1 PoE In 4 PoE Out Gigabit Ports, 10/100/1000Mbps rate. Powered by PoE network, no AC power supply required, Max PoE Input IEEE 802.3 af/at/bt 90W.

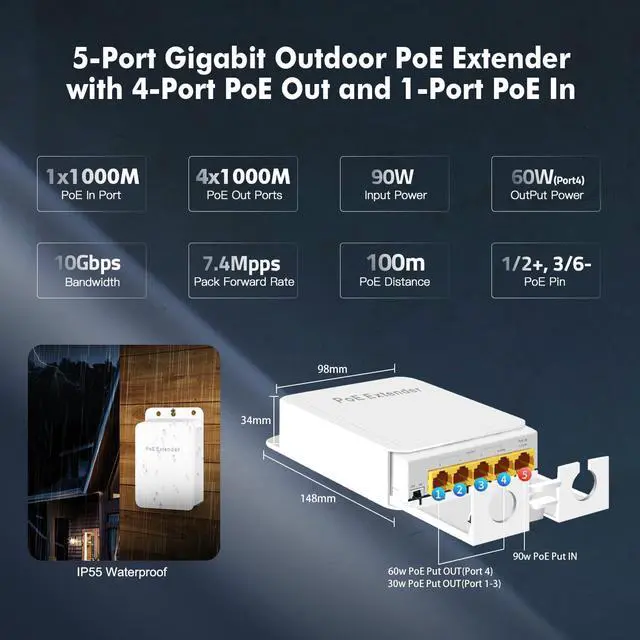

IEEE 802.3 af/at/bt Support standard PoE, Input Max 90W(IEEE 802.3 bt), Port 1-3 Output Max 30W(IEEE 802.3 at), Port 4 Output 60W(IEEE 802.3 bt). PoE Voltage 44-57 Vdc.
PoE pin:
Input: 1/2 (+), 3/6 (-), 4/5(+), 7/8(-); Output Port 1- 3: 1 /2 (+), 3/6 (-); Output Port 4: 1 /2 (+), 3/6 (-)4/5(+), 7/8(-)

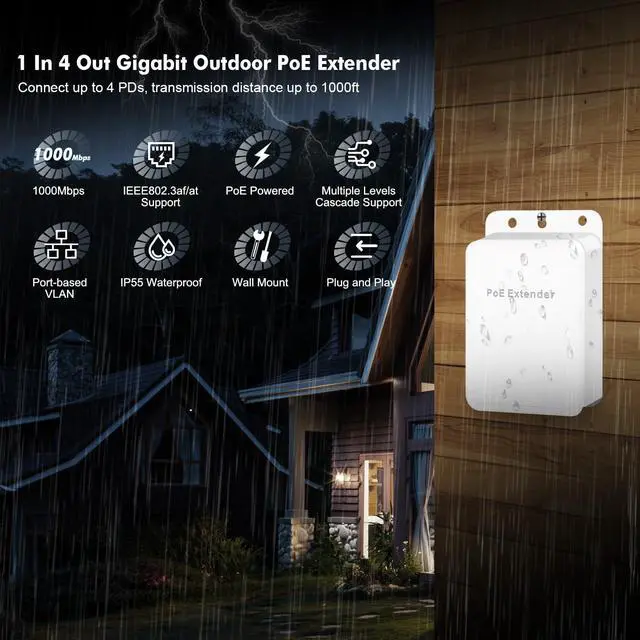

Outdoor weatherproof Industrial grade ABS polymer material shell, cable interface all protected in the shell, with better waterproof, dustproof, snowproof effect, more suitable for outdoor use; also suitable for complex indoor environment, such as warehouses, computer rooms, garages, attics, etc.

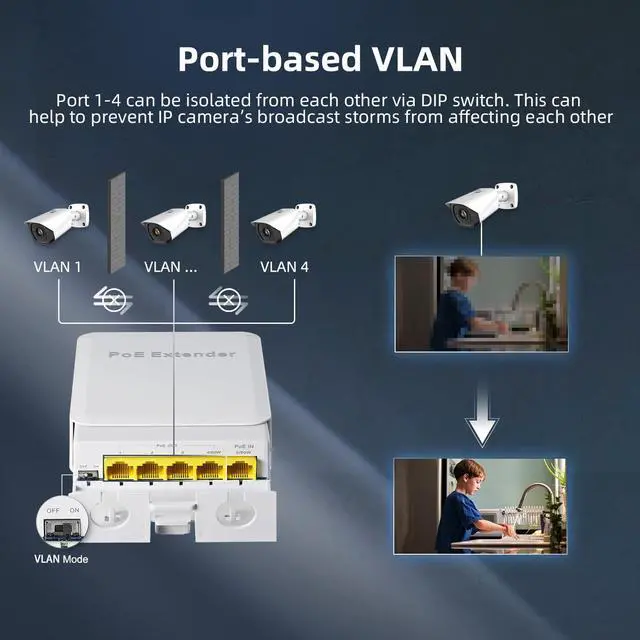

Plug & Play Support power detection automatically detect devices, just plug in the ethernet cable, connect directly to the device, led display the port status, without configuration. *Please note not support 24V passive PoE*. Support VLAN mode, controlled by dipswitch

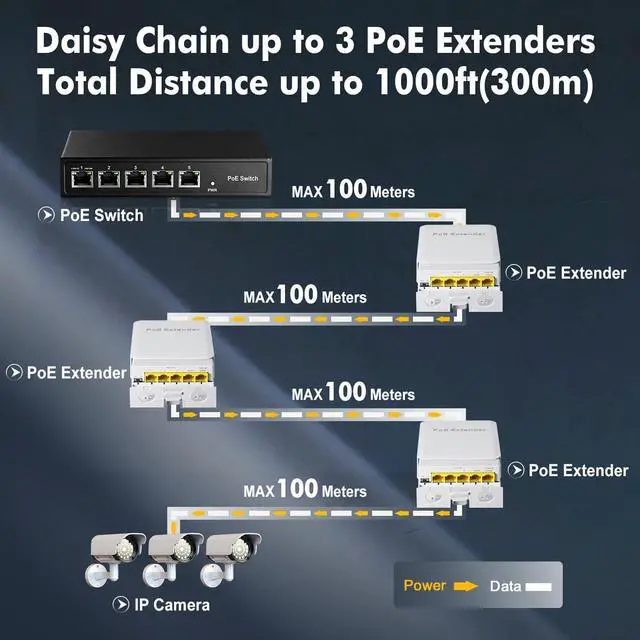

Easy Install Support wall mount, smaller size save space, suitable for many positions. Support 3-level cascading, can connect poe AP, camera, phone and other POE devices, extender POE coverage at low cost
